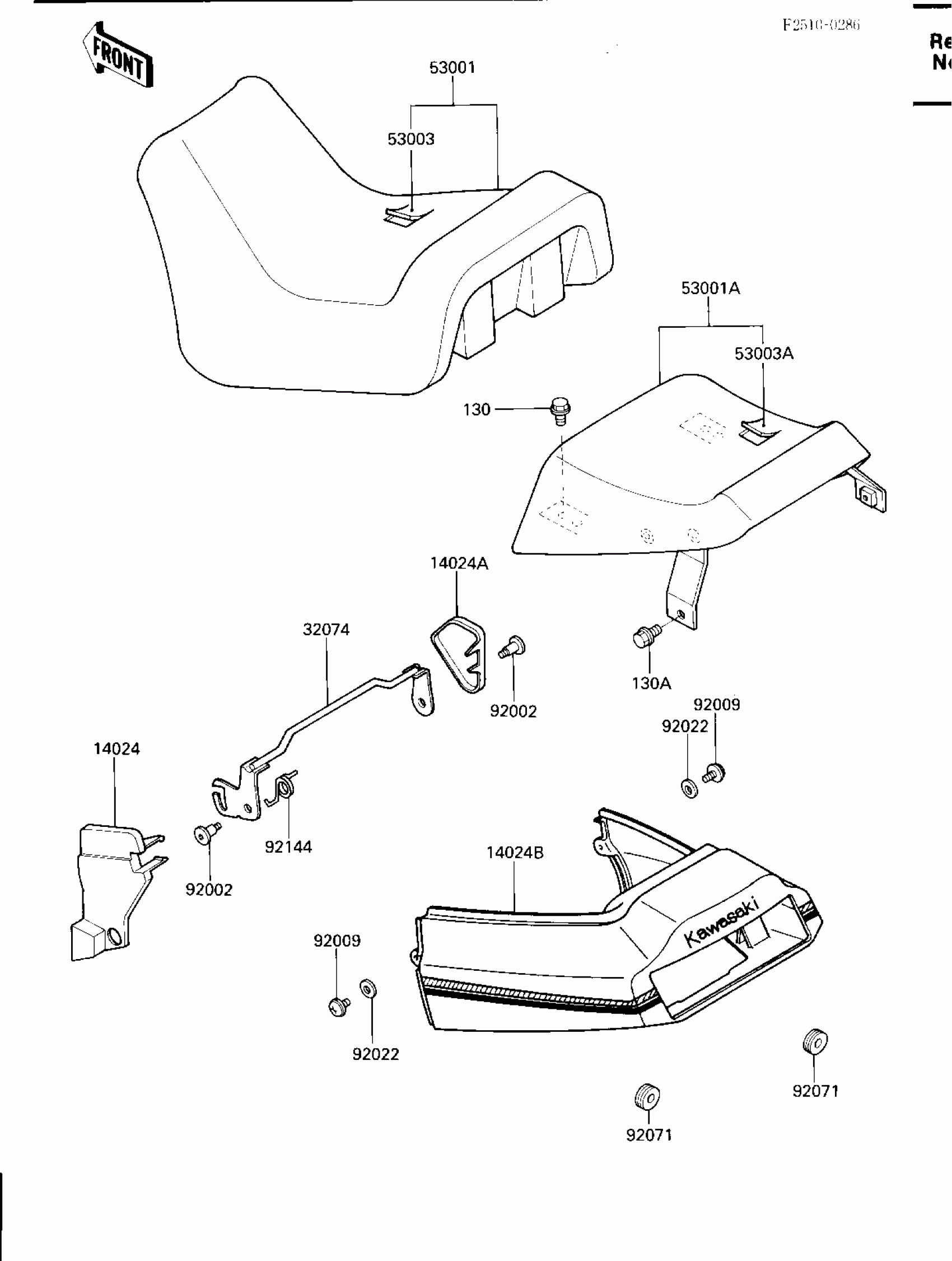

Kawasaki Ninja® 600RX SEAT/SEAT COVER Diagram

Description

Price

14024

COVER,SEAT LOCK,LH

14024-1051

Unavailable

14024A

COVER,SEAT LOCK,RH

14024-1052

Unavailable

14024B

COVER,SEAT,EBONY/P.C.

14025-5261-T4

Unavailable

32074

BRACKET-LOCK,SEAT

32074-1113

$45.55

53001

SEAT-ASSY,FR,BLACK

53001-1415-N3

$236.28

53001A

SEAT-ASSY,RR,BLACK

53001-1416-N3

$164.71

53003

LEATHER,FRONT SEAT,BL

53003-1130-N3

$140.89

53003A

LEATHER,REAR SEAT,BLA

53003-1131-N3

$76.43

92002

BOLT,SOCKET,6MM

92002-1616

$12.76

92009

SCREW,6X22,BLACK

92009-1251

$6.60

92022

WASHER,6.5X16X1.0

92022-1654

$3.65

92071

GROMMET

92071-056

$4.26

92144

SPRING,SEAT LOCK

92144-1086

$6.12

130

BOLT

130B0612

$0.67

130A

BOLT-FLANGED,8X14

130G0814

$2.12
