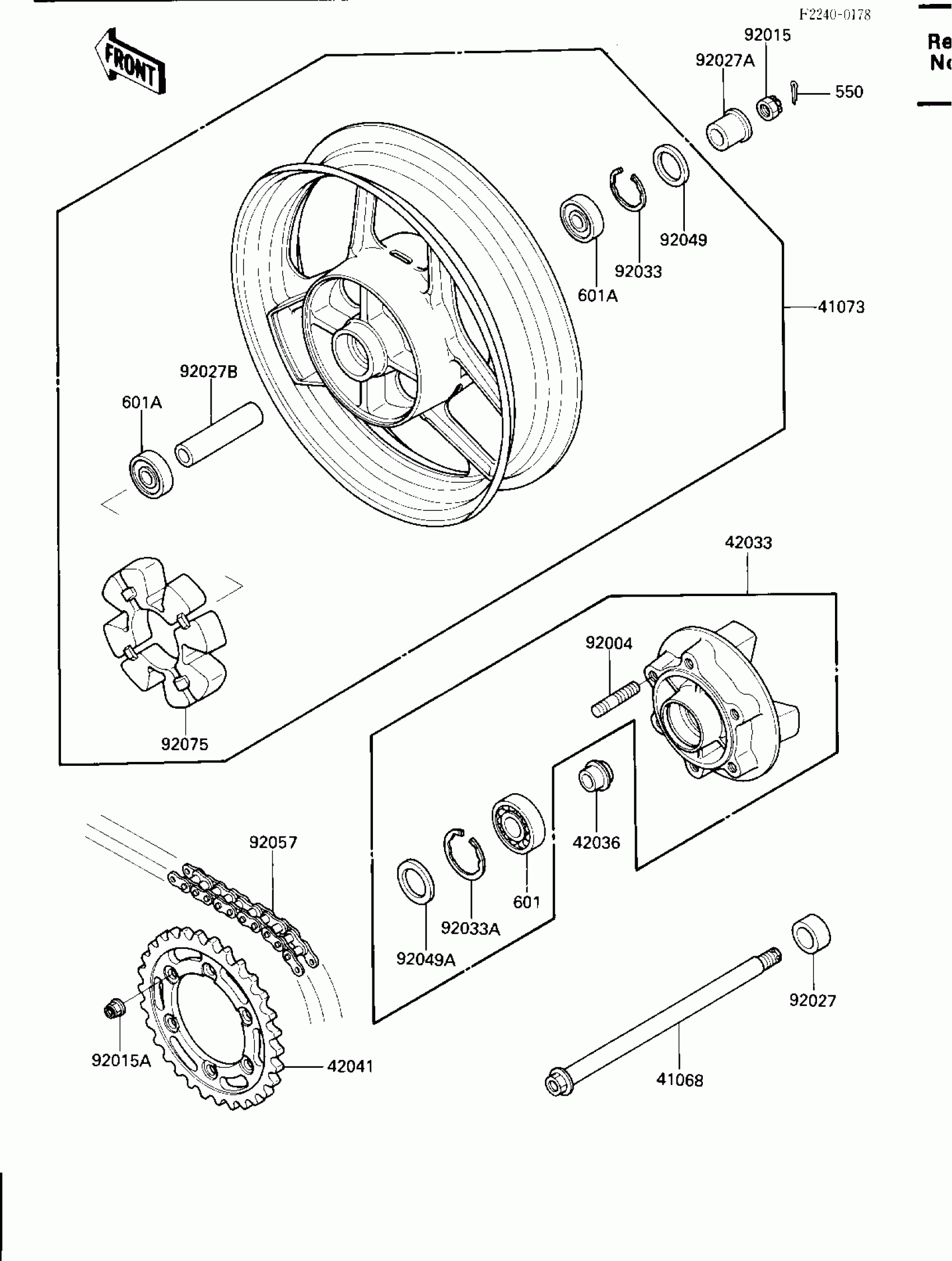

Kawasaki Ninja® 600RX REAR WHEEL/HUB/CHAIN Diagram

Description

Price

41068

AXLE,RR

41068-1232

Unavailable

41073

WHEEL-ASSY,RR,BLACK

41073-1436-R2

$580.14

42033

COUPLING-ASSY,RR HUB

42033-1114

$232.73

42036

SLEEVE,RR HUB,L=26

42036-1149

$33.68

42041

SPROCKET-HUB,39T

42041-1287

Unavailable

92004

STUD,10X24

92004-1146

$5.60

92015

NUT,CASTLE,16MM

42045-014

$9.91

92015A

NUT,FLANGED,10MM

92015-1502

$10.28

92027

COLLAR,RR AXLE,L=20

92027-1874

Unavailable

92027A

COLLAR,RR AXLE,L=28

92027-1875

$27.35

92027B

COLLAR,L=106

92027-1876

$24.02

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92049A

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

DR CHAIN EK50KVDO 102

92057-1189

$523.21

92075

DAMPER,SHOCK,RR HUB

92075-1687

$79.09

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6205C3

601B6205

$19.57

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38
