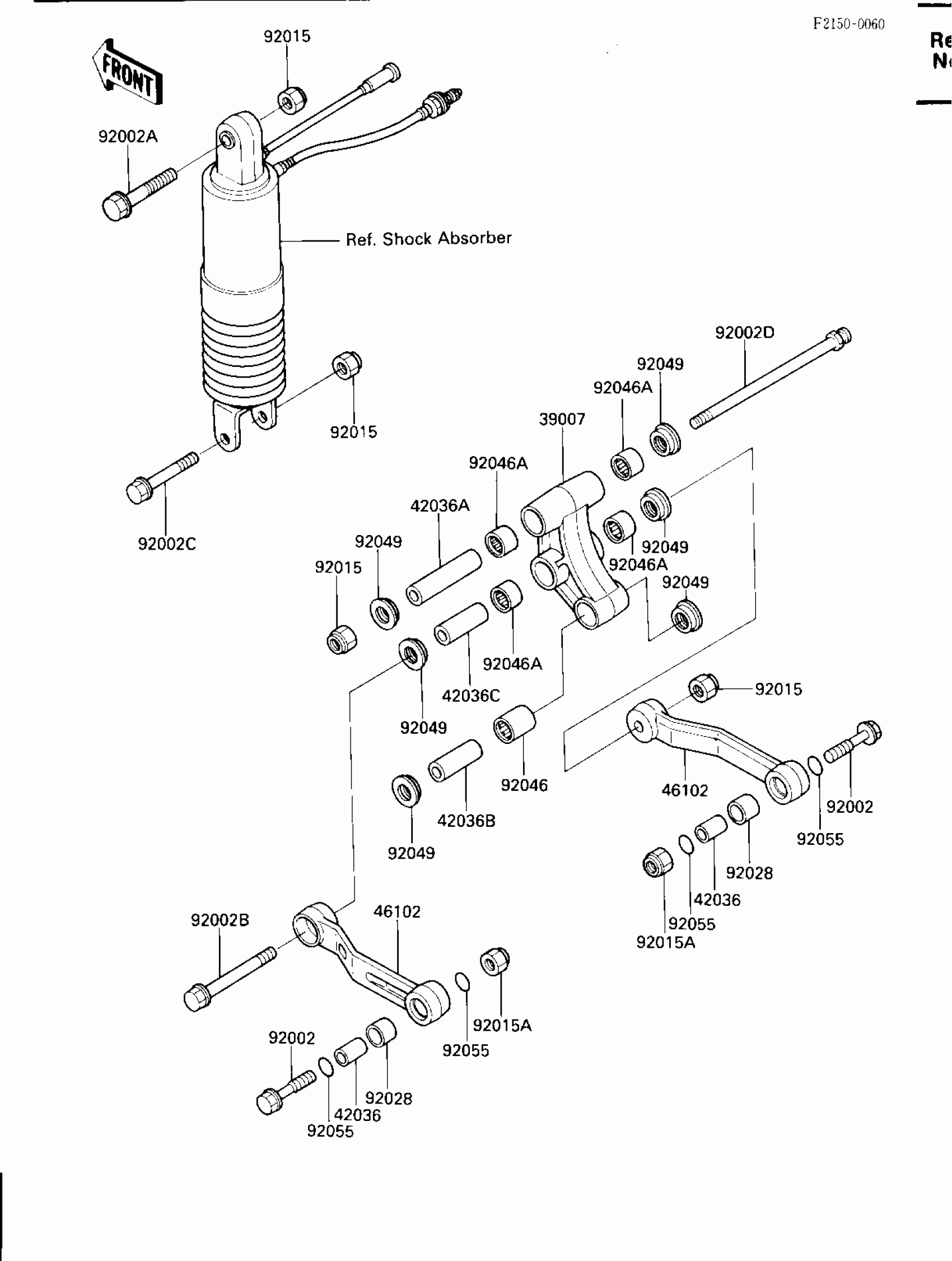

Kawasaki Ninja® 600RX REAR SUSPENSION Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1127

$154.71

42036

SLEEVE,12.1X20X22

42036-1076

$17.56

42036A

SLEEVE,12.1X20X74

42036-1102

$28.72

42036B

SLEEVE,12.1X20X40

42036-1108

$21.74

42036C

SLEEVE,12.1X20X50

42036-1111

$21.99

46102

ROD,UNI TRAK

46102-1140

$94.13

92002

BOLT,12X45

92001-1939

Unavailable

92002A

BOLT,FLANGED,12X100

92002-1437

$16.30

92002B

BOLT,FLANGED,12X85

92002-1463

$18.83

92002C

BOLT,FLANGED,12X60

92002-1464

$12.76

920020

BOLT,SUSPENSION ARM

92002-1490

$34.62

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92015A

NUT,LOCK,12MM

92015-1375

$7.71

92028

BUSHING

92028-1599

$27.10

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92055

RING-O,19.8X2.2

92055-1215

$4.31
