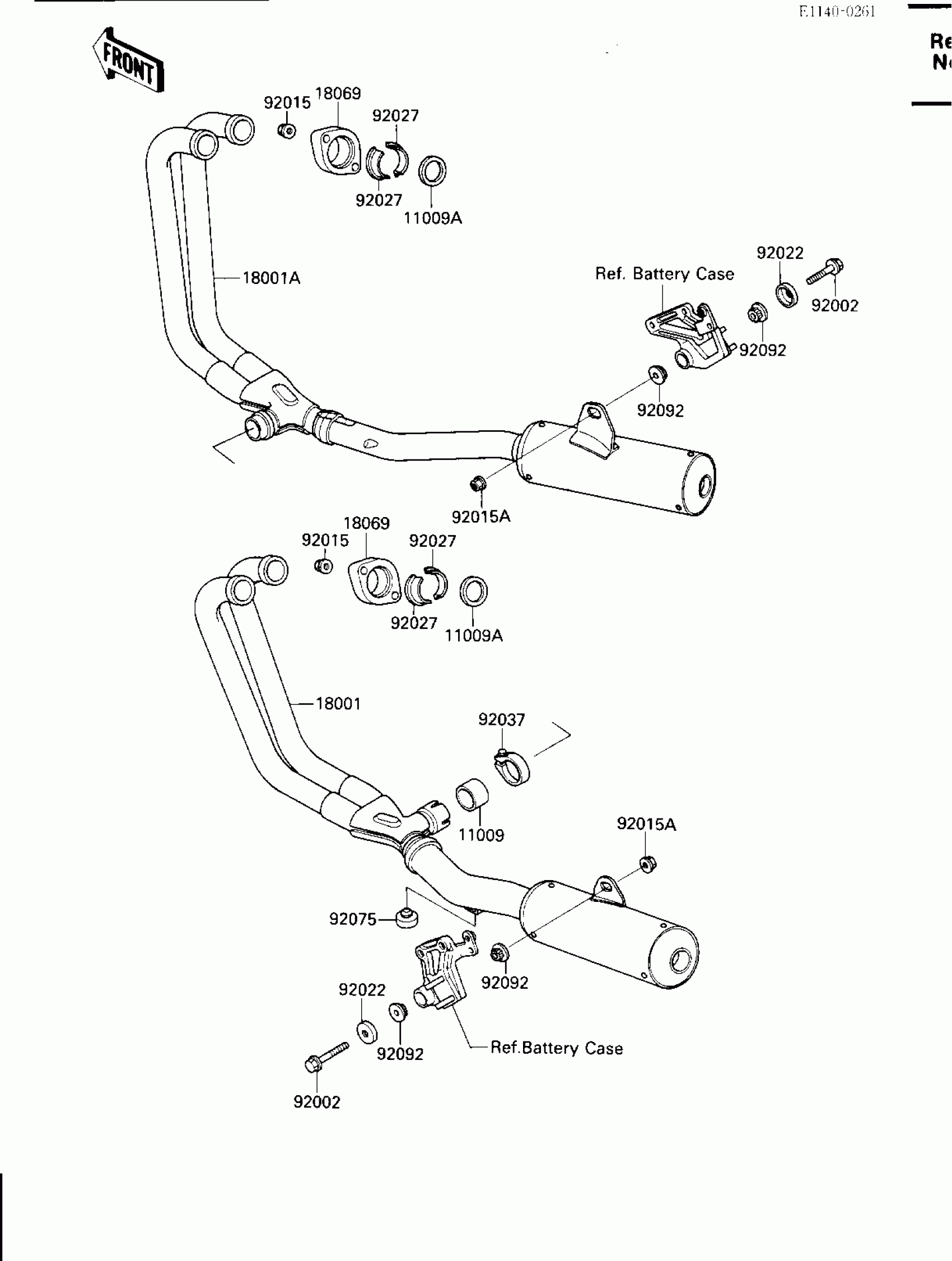

Kawasaki Ninja® 600RX MUFFLERS Diagram

Description

Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

18001

MUFFLER,LH

18001-1572

$497.51

18001A

MUFFLER,RH

18001-1573

$497.51

18069

HOLDER-EXHAUST PIPE

18069-1025

$24.02

92002

BOLT,10X55

92002-1127

$9.57

92015

NUT,6MM

92015-1365

$5.00

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92022

WASHER

92022-289

$16.33

92027

COLLAR

92027-1365

$7.22

92037

CLAMP,CONNECTING PIPE

92037-1221

$11.71

92075

DAMPER

92075-015

$5.00

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44
