Description

Price

14024

COVER,METER HOUSING

14025-1877

Unavailable

23008

SOCKET-ASSY,METER

23008-1269

$143.32

25001

METER-ASSY,MPH

25001-1597

$865.25

25005

SPEEDOMETER,MPH

25005-1299

$202.94

25008

BRACKET-METER

25008-1119

$48.03

25015

TACHOMETER,X1000R/MIN

25015-1237

$354.34

25023

COVER-METER CASE

25023-1127

Unavailable

28011

METER,FUEL

28011-1062

$84.08

28011A

METER,TEMP

28011-1070

$84.08

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92009A

SCREW,3X22

92009-1293

$3.91

920098

SCREW,3X12

92009-1326

$3.65

920090

SCREW,TAPPING,2.6X12

92009-1330

$3.35

92022

WASHER,3MM

92022-1374

Unavailable

92022A

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER

92075-1435

$6.45

92075A

DAMPER,METER BRACKET

92075-1495

$12.79

130

BOLT-FLANGED,6X14

130C0614

$2.33

311

NUT-HEX

311B0500

$0.47

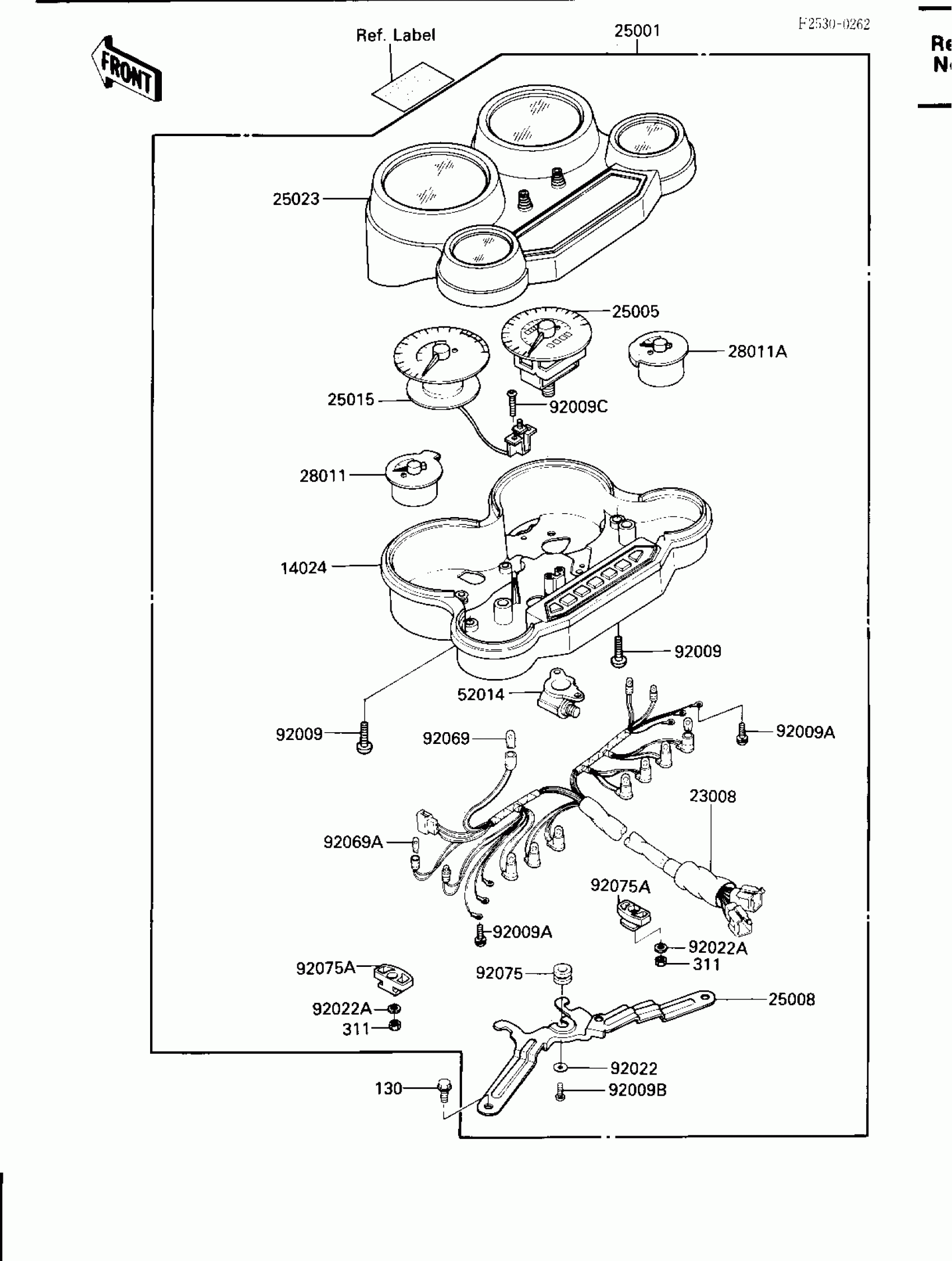

Kawasaki Ninja® 600RX METERS Diagram

COVER,METER HOUSING

SOCKET-ASSY,METER

METER-ASSY,MPH

SPEEDOMETER,MPH

BRACKET-METER

TACHOMETER,X1000R/MIN

COVER-METER CASE

METER,FUEL

METER,TEMP

ELBOW,SPEEDOMETER GEAR

SCREW,4X16,BLACK

SCREW,3X22

SCREW,3X12

SCREW,TAPPING,2.6X12

WASHER,3MM

WASHER,5.2X16X1.2

BULB,12V 3.4W,T10

BULB,12V 3W,T7

DAMPER

DAMPER,METER BRACKET

BOLT-FLANGED,6X14

NUT-HEX
