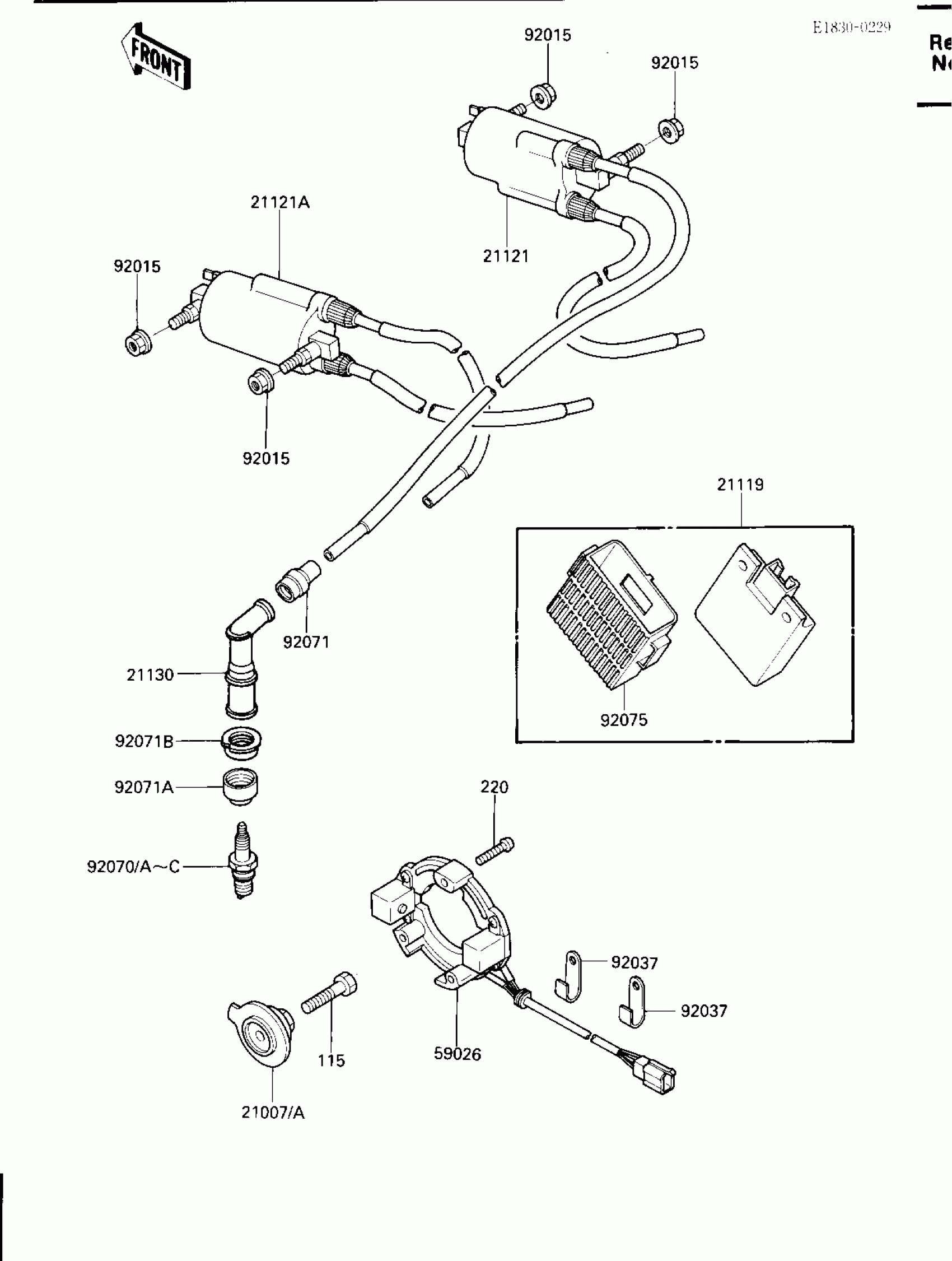

Kawasaki Ninja® 600RX IGNITION Diagram

Description

Price

21007

ROTOR,PULSING COIL

21007-1130

Unavailable

21007A

ROTOR,PULSING COIL

21007-1135

Unavailable

21119

IGNITER

21119-1167

$575.87

21121

COIL-IGNITION,#1

21121-1132

$176.24

21121A

COIL-IGNITION,#2

21121-1133

Unavailable

21130

CAP-SPARK PLUG

21130-1057

$41.86

59026

COIL-PULSING

59026-1068

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92037

CLAMP,WIRING HARNESS

21126-008

$4.73

92070

SPARK PLUG D8EA

D8EA

$3.46

92070B

PLUG-SPARK,D9EA(NGK)

92070-1034

$3.62

92071

GROMMET,HIGH TENSION

21131-005

$6.16

92071A

GROMMET,PLUG CAP

92071-1124

$9.43

92071B

GROMMET

92071-1144

$9.99

92075

DAMPER,IGNITER

92075-1504

$37.12

115

BOLT-SMALL-UPSET

115G0835

$4.54

220

SCREW-PAN-CROS,5X25

220B0525

$3.67
