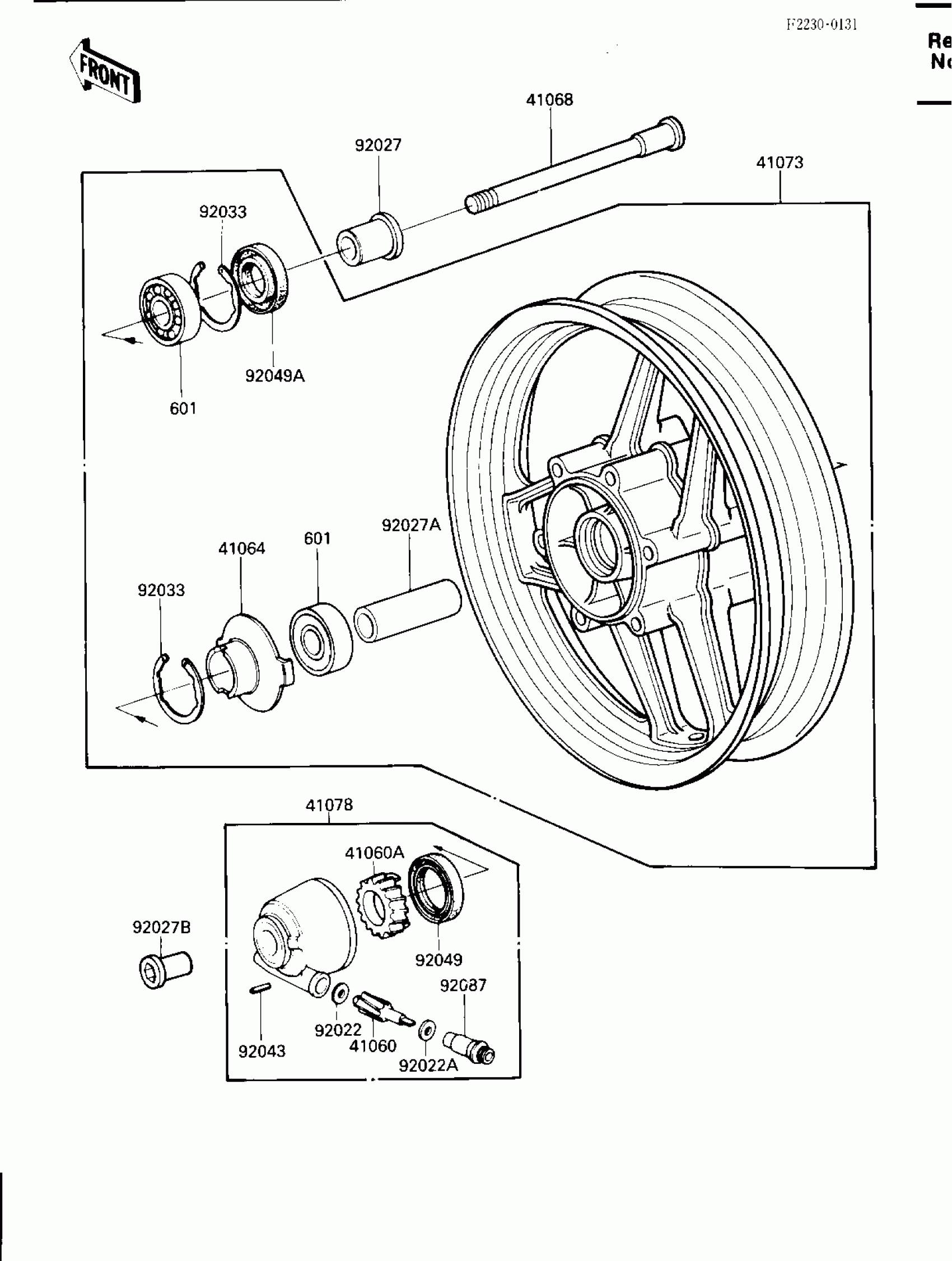

Kawasaki Ninja® 600RX FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW,9T

41060-1106

$21.74

41060A

GEAR-METER SCREW,23T

41060-1107

$21.74

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR

41068-1164

Unavailable

41073

WHEEL-ASSY,FR,BLACK

41073-1341-R2

$529.25

41078

CASE-ASSY-METER GEAR

41078-1062

Unavailable

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92022A

WASHER,5.1X9X0.4

41063-001

$4.69

92027

COLLAR,L=30

92027-1225

$17.60

92027A

COLLAR,L=71

92027-1725

$14.09

92027B

COLLAR,FR AXLE,L=36.5

92027-1726

$28.64

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1002

$23.27

601

UNAVAILABLE IN PRICE BOOK

601B63020

Unavailable
