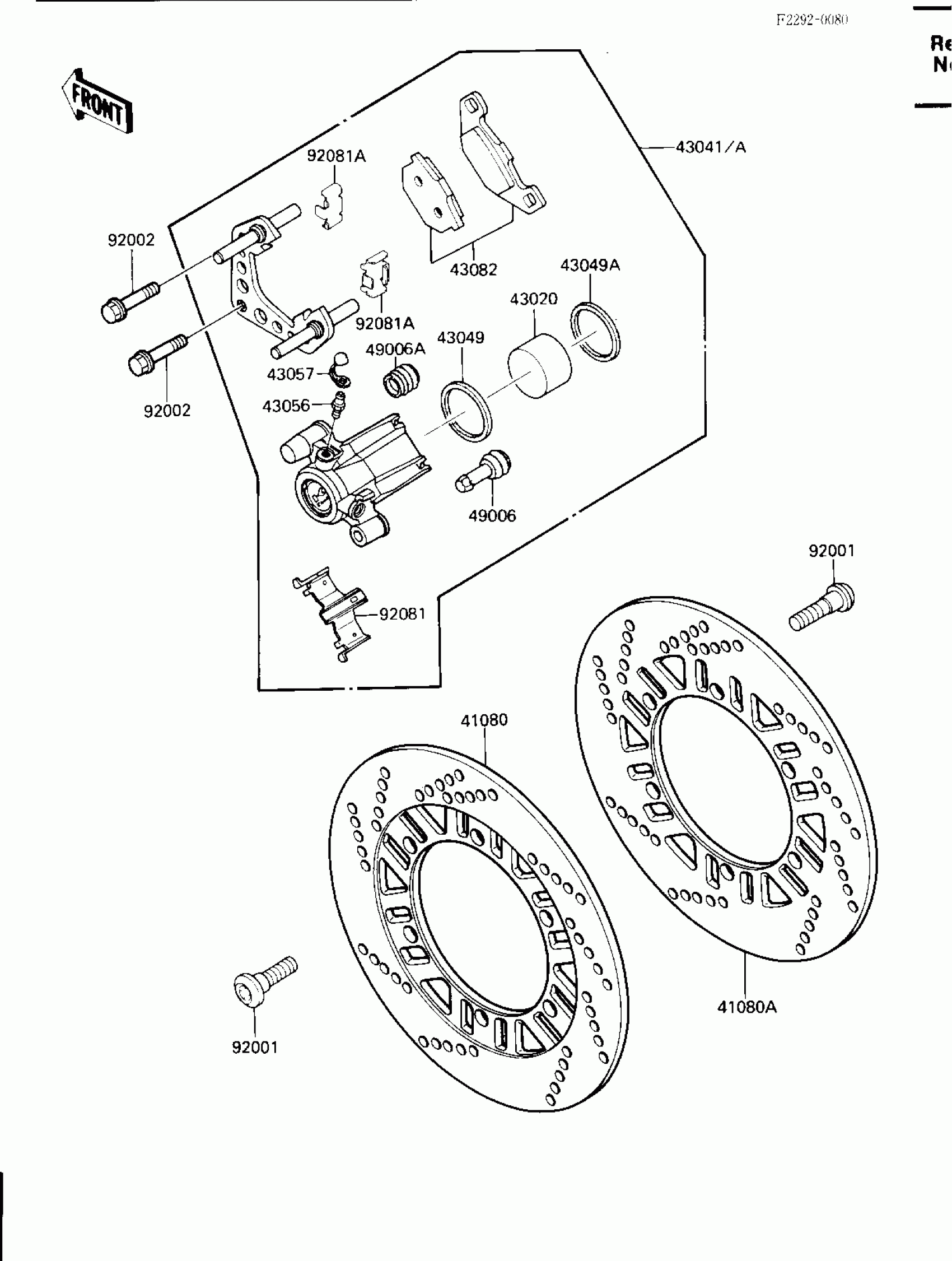

Kawasaki Ninja® 600RX FRONT BRAKE Diagram

Description

Price

41080

DISC,FR,LH

41080-1149

$553.57

41080A

DISC,FR,RH

41080-1150

$553.57

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43041

CALIPER-ASSY,FR,LH

43041-1194

$462.64

43041A

CALIPER-ASSY,FR,RH

43041-1471

$396.78

43049

PACKING,PISTON SEAL

43049-002

$13.90

43049A

PACKING,PISTON

43049-1028

$12.65

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1061

$52.00

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80
