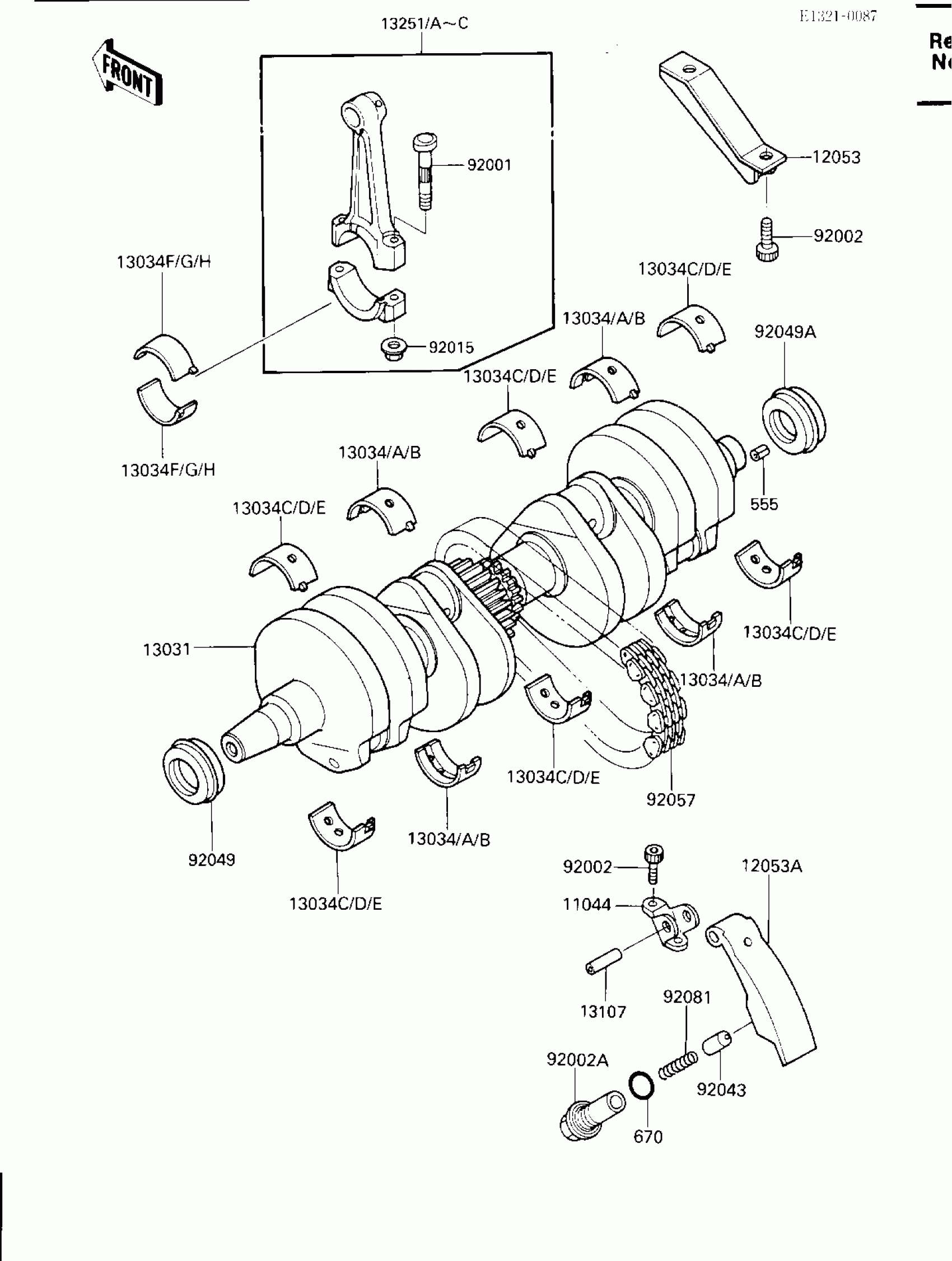

Kawasaki Ninja® 600RX CRANKSHAFT Diagram

#

Description
Price

11044

BRACKET,CHAIN GUIDE

11044-1075

Unavailable

12053

GUIDE-CHAIN,UPP

12053-1156

Unavailable

12053A

GUIDE-CHAIN,LWR

12053-1157

$56.15

13031

CRANKSHAFT-COMP

13031-1191

Unavailable

13034

METAL,CRANKSHAFT,BROWN

13034-1016

Unavailable

13034A

METAL,CRANKSHAFT,BLACK

13034-1017

Unavailable

13034B

METAL,CRANKSHAFT,BLUE

13034-1018

Unavailable

13034C

BUSHING,CRANKSHAFT,BLUE

13034-1064

Unavailable

13034D

BUSHING,CRANKSHAFT,BLACK

13034-1065

Unavailable

13034E

BUSHING,CRANKSHAFT,BROWN

13034-1066

Unavailable

13034F

BUSHING,CONNECTING ROD,BLUE

13034-1067

Unavailable

13034G

BUSHING,CONNECTING ROD,BLACK

13034-1068

Unavailable

13034H

BUSHING,CONNECTING ROD,BROWN

13034-1069

Unavailable

13107

SHAFT,8X25

13107-1142

$7.68

13251

ROD-ASSY-CONNECTING,J

13251-1059-JJ

Unavailable

13251A

ROD-ASSY-CONNECTING,I

13251-1059-II

Unavailable

13251B

ROD-ASSY-CONNECTING,J

13251-1059-JJ

Unavailable

13251C

ROD-ASSY-CONNECTING,K

13251-1059-KK

Unavailable

92001

BOLT,CONNECTING ROD,8MM

92001-1887

$9.57

92002

BOLT,SOCKET,6X14

92002-1192

$5.59

92002A

BOLT

92002-1479

Unavailable

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92043

PIN

92043-076

$11.71

92049

SEAL-OIL,HSCY25367

92049-1013

$10.40

92049A

SEAL-OIL,HSCY25397

92050-081

$13.07

92057

CHAIN,PRIMARY,MA0364X50L

92057-1011

$155.01

92081

SPRING

92081-112

$6.16

555

PIN-SPRING,4X8

555A0408

$3.92

670

O RING,16MM

670B2016

$1.36
