CRANKCASE

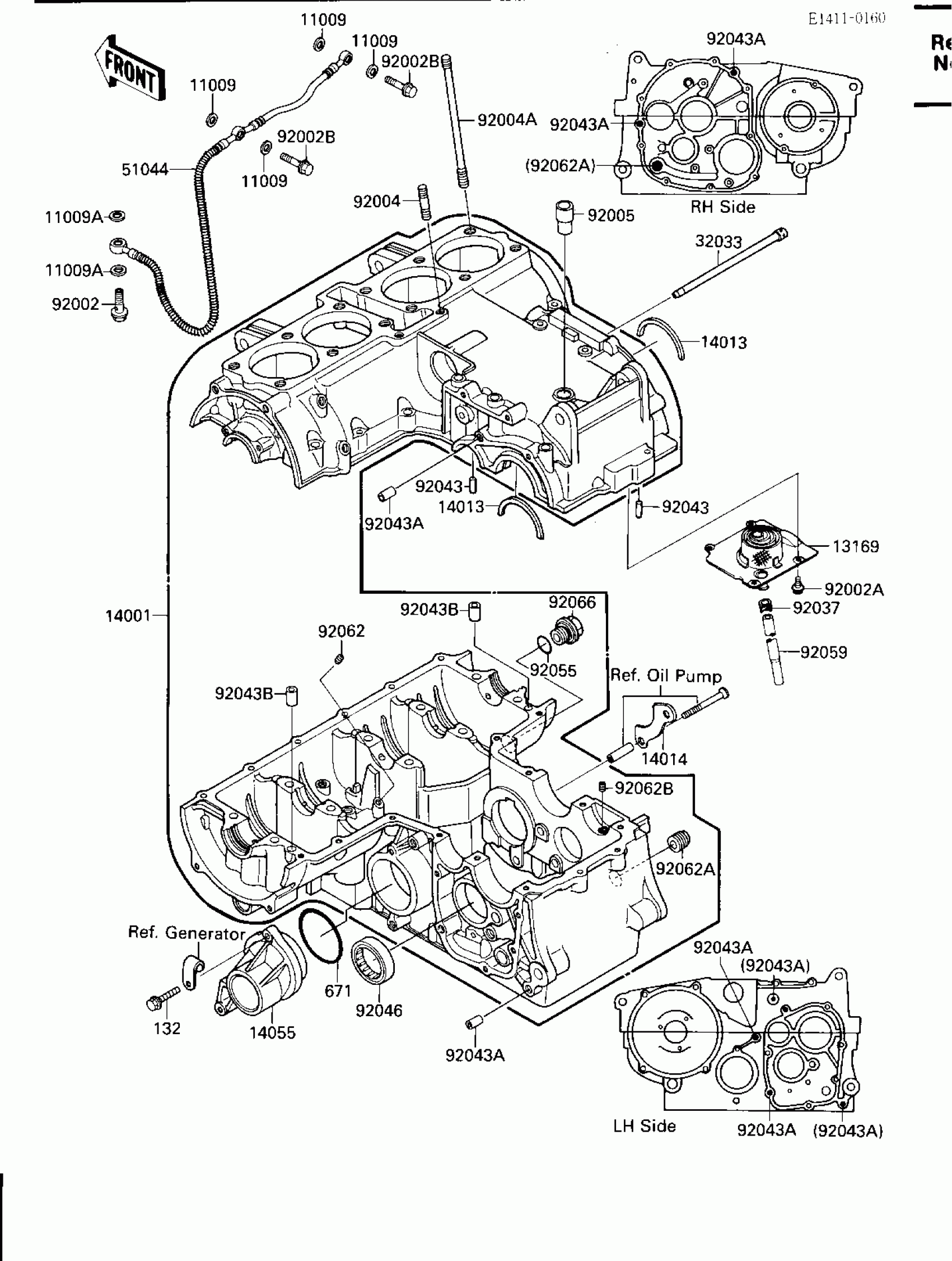

Kawasaki Ninja® 600RX CRANKCASE Diagram
#
Description
Price
11009
GASKET,8.2X14X1.0
11009-1344
$3.17
11009A
GASKET,12.5X18X1.5
11009-1376
$1.85
13169
PLATE,BREATHER
13169-1966
Unavailable
14001
SET-CRANKCASE
14001-5192
Unavailable
14013
RING-POSITION
14013-004
$10.19
14014
PLATE-POSITION
14014-1006
$11.91
14055
CASE-GEAR
14055-1078
Unavailable
32033
PIPE,OIL
32033-1858
Unavailable
51044
TUBE-ASSY
51044-1071
$226.53
92002
BOLT,BANJO,12X23
92001-1871
$17.13
92002A
BOLT,6X10
92002-1449
$4.11
92002B
BOLT,BANJO,8X24
92002-1858
$11.50
92004
STUD,6X22
92004-059
$6.50
92004A
STUD,8X128.5
92004-1161
$15.31
92005
FITTING,BREATHER
92005-1129
$20.80
92037
CLAMP,HOSE CLIP
92037-1181
$3.36
92043
PIN,DOWEL,6X16
92042-016
$5.00
92043A
PIN,6.2X8X14
92043-1263
$0.43
92043B
PIN,8.2X10X14
92043-1264
$0.64
92046
BEARING-NEEDLE,37BTM4312
92046-051
$25.09
92055
RING-O,20X2
92055-1146
$8.58
92059
TUBE
92059-1544
Unavailable
92062
NOZZLE,BLACK
92062-011
$8.58
92062A
NOZZLE
92062-014
$9.89
92062B
NOZZLE,SILVER
92062-015
$3.70
92066
PLUG,MAIN GALLERY,18X9,BLACK
92066-1096
$11.50
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
671
O RING,55MM
671B2555
$6.22
