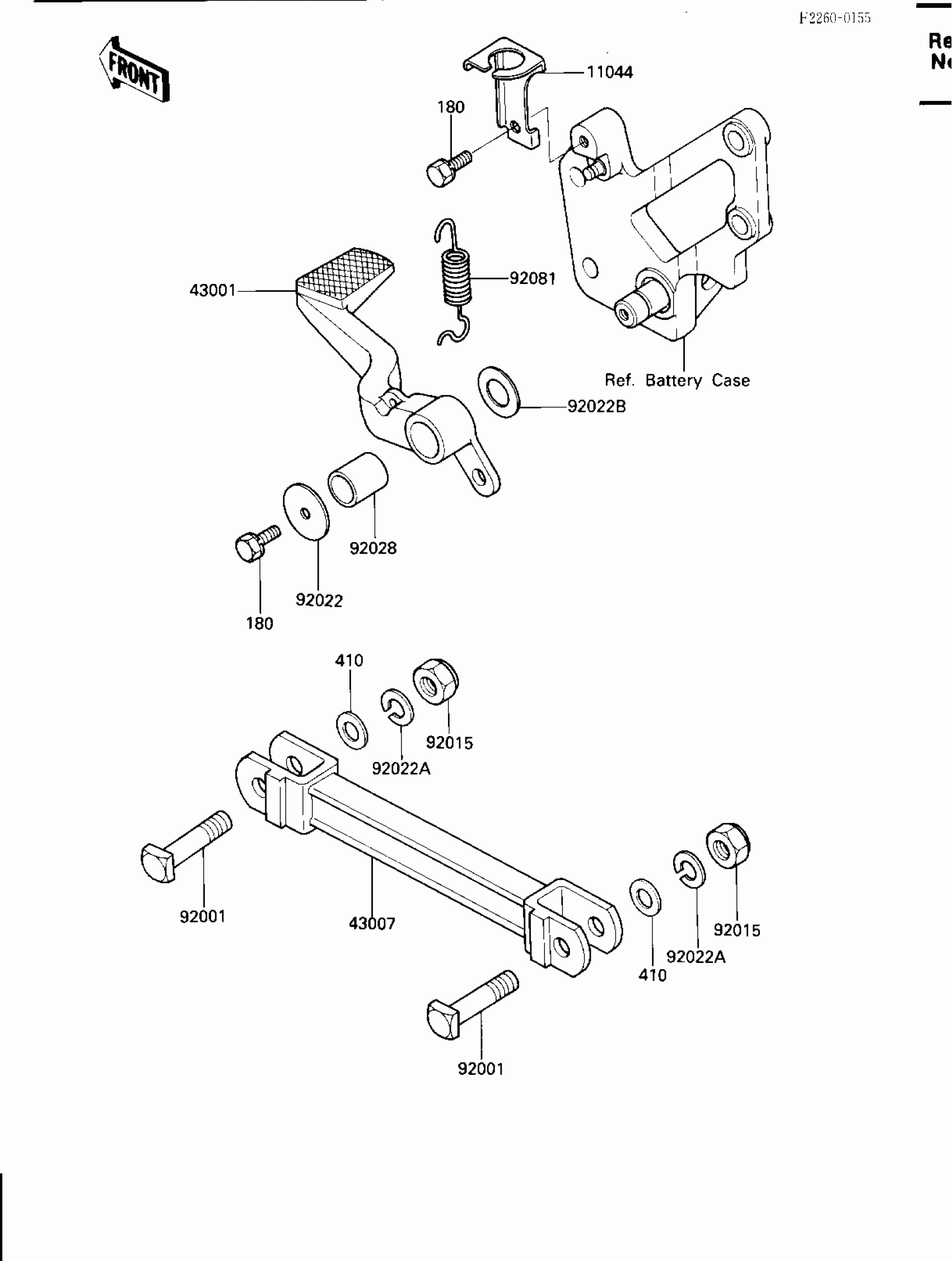

Kawasaki Ninja® 600RX BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

11044

BRACKET,RR BRAKE SWITCH

11044-1107

$10.62

43001

LEVER-BRAKE,PEDAL

43001-1190

$142.20

43007

ROD-TORQUE

43007-1115

$100.14

92001

BOLT,10X37

92001-1307

$6.88

92015

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,7X28X1.6

92022-1282

$4.69

92022A

WASHER,SPRING,10MM

92022-1540

$4.11

92022B

WASHER,15.3X24X1

92022-326

$3.92

92028

BUSHING,BRAKE PEDAL

92028-1282

$14.10

92081

SPRING,BRAKE PEDAL

92081-1833

$10.19

180

BOLT-UPSET-WS

180B0614

$1.00

410

WASHER PLAIN 10MM

410B1000

$0.58
