Description

Price

11012

CAP,SWING ARM BRACKET

11012-1629

$8.08

11012A

CAP,BUNGEE CORD HOOK

11012-1589

$7.77

11044

BRACKET,BATTERY

11044-1101

Unavailable

11044A

BRACKET,REGULATOR

11044-1126

Unavailable

11044B

BRACKET,IGNITION COIL

11044-1128

Unavailable

11044C

BRACKET,CANISTER

11044-1133

Unavailable

11044D

BRACKET,OIL COOLER

11044-1157

Unavailable

11044E

BRACKET,RADIATOR,LH

11044-1207

Unavailable

11044F

BRACKET,RADIATOR,RH

11044-1208

Unavailable

11044G

BRACKET,RELAY

11044-5001

Unavailable

11044H

BRACKET,IGNITER

11044-1470

Unavailable

110441

BRACKET,DAMPER CLAMP,

11044-1522

Unavailable

11044J

BRACKET,DAMPER CLAMP,

11044-1523

Unavailable

13169

PLATE,GRIP

13169-1760

$10.62

27012

HOOK,BUNGEE CORD

27012-1311

Unavailable

32085

STOPPER,HOOK

32085-1187

$11.91

32099

CASE

32099-1074

$33.99

32099A

CASE,TOOL

32099-1075

Unavailable

32109

GRIP-FRAME

32109-1108

$85.99

35011

STAY,MUFFLER,LH

35011-1242

Unavailable

35011A

STAY,MUFFLER,RH

35011-1243

$125.22

35011B

STAY,STEP HOLDER,FR,L

35011-1244

Unavailable

35011C

STAY,STEP HOLDER,FR,R

35011-1245

$172.95

46075

GRIP,GRABRAIL

46075-1058

$177.90

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92002A

BOLT,SOCKET,8X20

92002-1493

$2.15

92002B

BOLT,SOCKET,6X24

92002-1511

Unavailable

92009

SCREW,TAPPING,6MM

92009-1261

$2.80

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,L=142.1

92072-006

$12.76

92075

DAMPER

92075-1045

$8.86

92075A

DAMPER,FOOT GUARD

92075-1786

$14.92

130

BOLT-FLANGED,6X12

130C0612

$0.63

130A

BOLT-FLANGED,6X20

130C0620

$6.86

130B

BOLT-FLANGED

130D0816

Unavailable

130C

BOLT-FLANGED,8X20

130G0820

$4.06

224

SCREW-PAN-WP-CROS

224C0508

$4.30

700

Not Available As Spare Part - Friction Washer

Unavailable

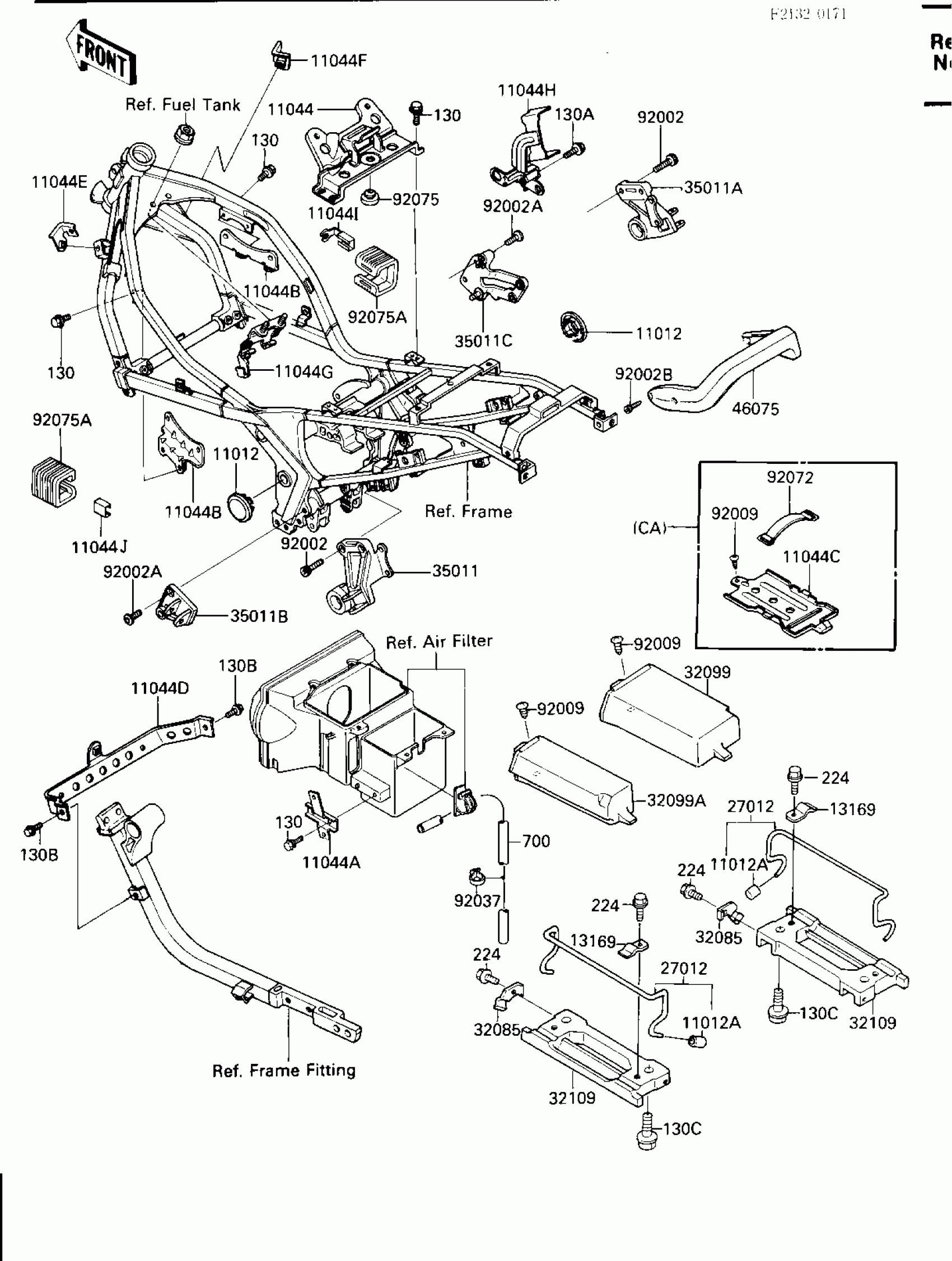

Kawasaki Ninja® 600RX BATTERY CASE/TOOL CASE Diagram

CAP,SWING ARM BRACKET

CAP,BUNGEE CORD HOOK

BRACKET,BATTERY

BRACKET,REGULATOR

BRACKET,IGNITION COIL

BRACKET,CANISTER

BRACKET,OIL COOLER

BRACKET,RADIATOR,LH

BRACKET,RADIATOR,RH

BRACKET,RELAY

BRACKET,IGNITER

BRACKET,DAMPER CLAMP,

BRACKET,DAMPER CLAMP,

PLATE,GRIP

HOOK,BUNGEE CORD

STOPPER,HOOK

CASE

CASE,TOOL

GRIP-FRAME

STAY,MUFFLER,LH

STAY,MUFFLER,RH

STAY,STEP HOLDER,FR,L

STAY,STEP HOLDER,FR,R

GRIP,GRABRAIL

BOLT,SOCKET,8X25

BOLT,SOCKET,8X20

BOLT,SOCKET,6X24

SCREW,TAPPING,6MM

CLAMP,SPEED,L=58

BAND,L=142.1

DAMPER

DAMPER,FOOT GUARD

BOLT-FLANGED,6X12

BOLT-FLANGED,6X20

BOLT-FLANGED

BOLT-FLANGED,8X20

SCREW-PAN-WP-CROS

Not Available As Spare Part - Friction Washer
