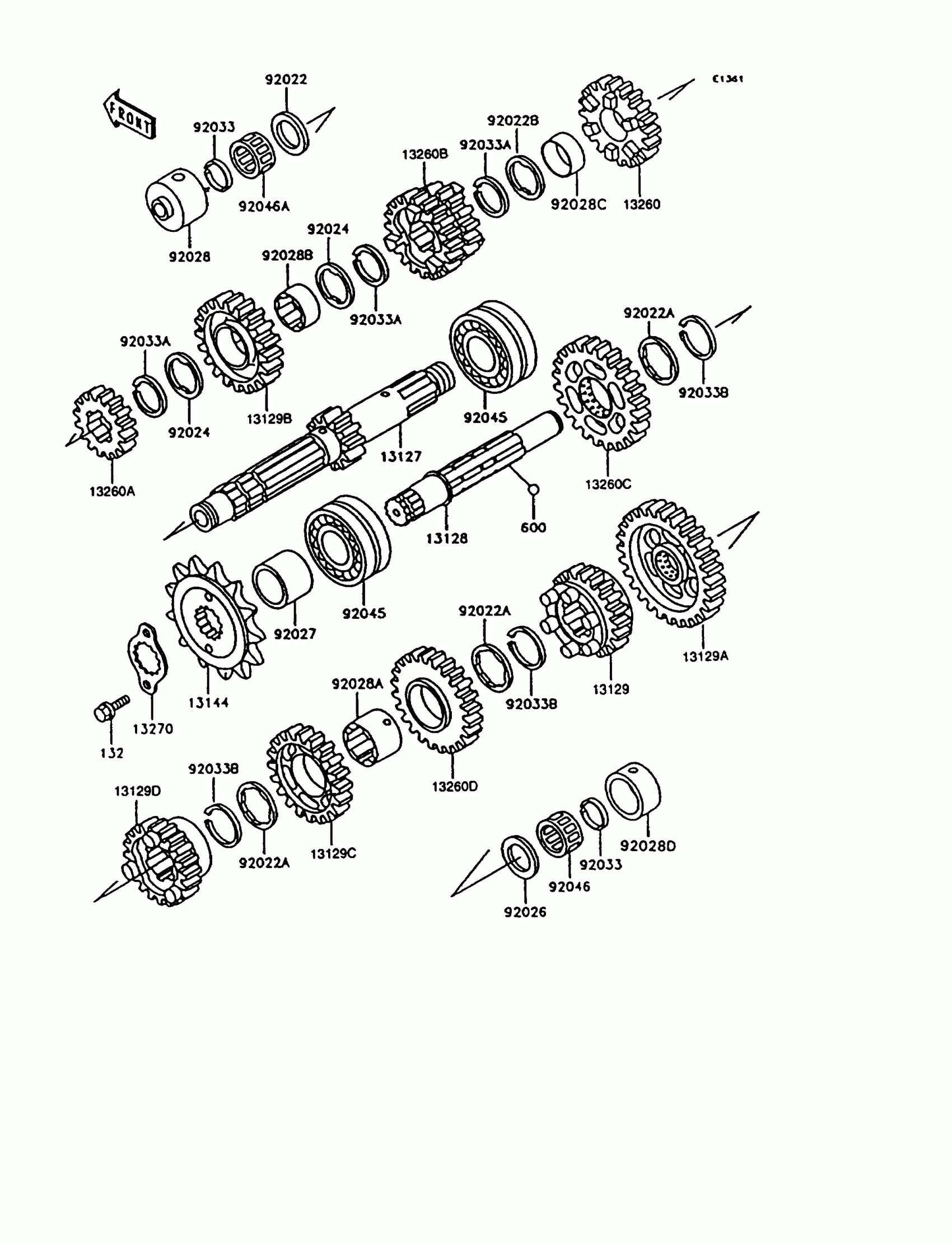

Kawasaki Ninja® 600R Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,14T

13127-1151

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1119

Unavailable

13129

GEAR,INPUT 2ND,18T

13129-1077

Unavailable

13129A

GEAR,OUTPUT 2ND,32T

13129-1078

Unavailable

13129B

GEAR,OUTPUT 5TH,25T

13129-1083

Unavailable

13129C

GEAR,OUTPUT LOW,36T

13129-1564

$151.72

13129D

GEAR,INPUT 5TH,26T

13129-1657

Unavailable

13129E

GEAR,INPUT TOP,27T

13129-1658

Unavailable

13129F

GEAR,OUTPUT 3RD,29T

13129-1659

Unavailable

13129G

GEAR,OUTPUT 4TH,27T

13129-1660

$143.68

13129H

GEAR,OUTPUT TOP,23T

13129-1662

Unavailable

13129I

GEAR,INPUT 3RD&4TH,21T&24T

13129-1846

Unavailable

13144

SPROCKET-OUTPUT,15T(#530)

13144-1117

Unavailable

13183

PLATE,SPROCKET

13169-1658

Unavailable

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

92022B

WASHER,TOOTHED,25.3X31.8X1.6

92022-1861

$7.22

92022C

WASHER,TOOTHED,25.5X32X1

92024-033

$8.19

92026

SPACER,20.3X30X2.0

92026-1022

$5.59

92027

COLLAR,25X32X23.5

92027-1106

$13.07

92028

BUSHING,INPUT SHAFT

92028-1199

Unavailable

92028A

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1364

$35.90

92028B

BUSHING,INPUT TOP GEAR

92028-1552

$31.84

92028C

BUSHING,26X34X16.6

92028-180

$28.82

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,83993SH2-CS

92045-035

$73.57

92046

BEARING-NEEDLE,VS20/14A

92046-1030

$25.43

92046A

BEARING-NEEDLE,20V2715

92046-1045

Unavailable

130

BOLT-FLANGED,6X12

130G0612

$1.69

600

BALL-STEEL,5/32

600A0500

$0.81
