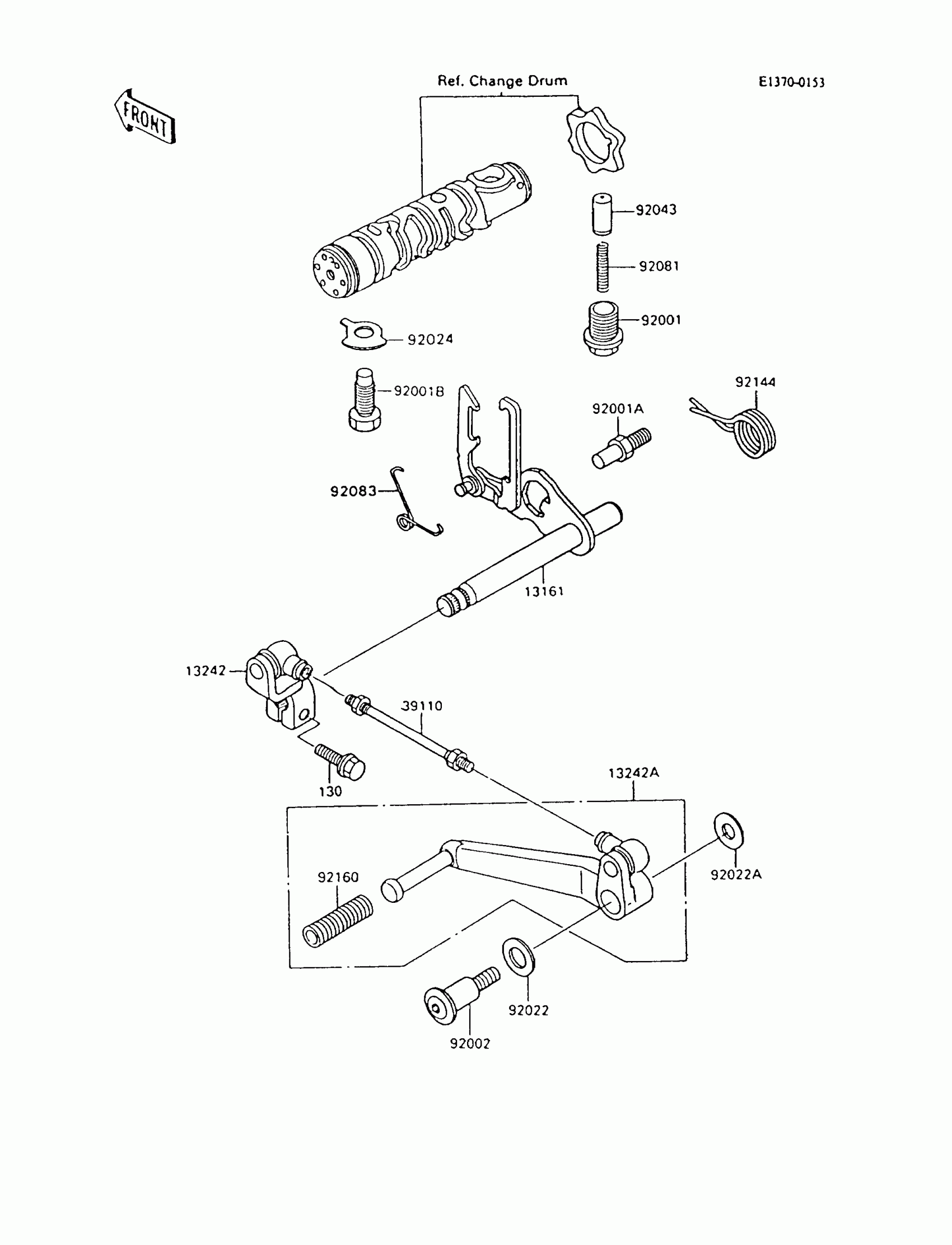

Kawasaki Ninja® 600R Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

13242

LEVER-ASSY-CHANGE,BOSS

13242-1190

$53.55

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-1191

$111.93

39110

ROD-ASSY-TIE,CHANGE LEVER

39110-1010

$13.08

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92001A

BOLT,RETURN SPRING

92001-1455

$4.69

92001B

BOLT,10X26

92001-174

$8.19

92002

BOLT,CHANGE PEDAL

92002-1926

$15.92

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,8.5X20X1.6

92022-1561

$4.31

92024

WASHER,LOCK,10MM

92024-074

$4.38

92043

92043-076

$11.71

92081

SPRING

92081-112

$6.16

92083

SPRING

92083-018

$9.80

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

130

BOLT-FLANGED,6X20

130S0620

$6.86

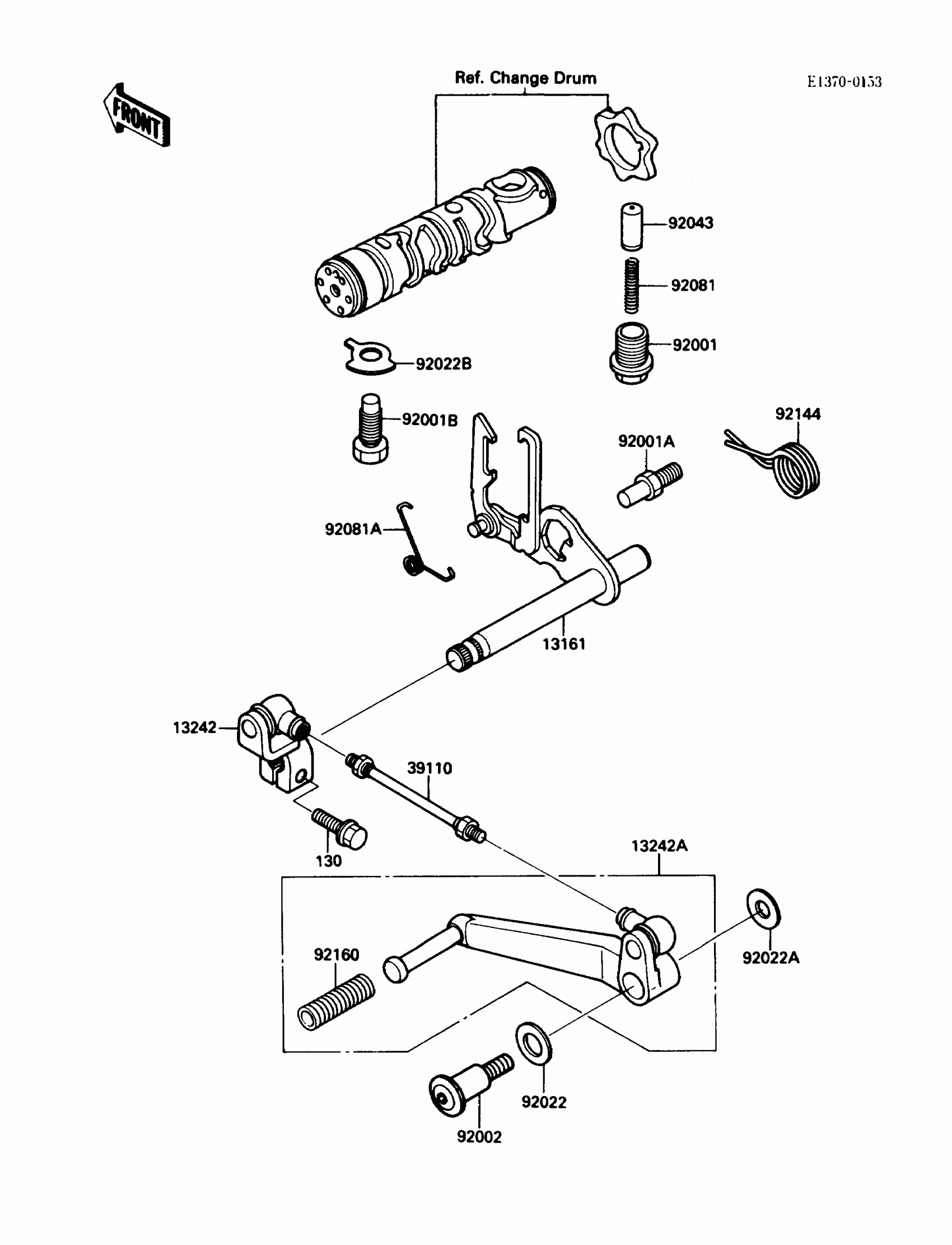

Kawasaki Ninja® 600R Gear Change Mechanism Diagram

LEVER-COMP-CHANGE SHAFT

LEVER-ASSY-CHANGE,BOSS

LEVER-ASSY-CHANGE,PEDAL

ROD-ASSY-TIE,CHANGE LEVER

BOLT,NEUTRAL POSITION

BOLT,RETURN SPRING

BOLT,10X26

BOLT,CHANGE PEDAL

WASHER,12.5X22X1.2

WASHER,8.5X20X1.6

WASHER,LOCK,10MM

PIN

SPRING

SPRING

SPRING,CHANGE PEDAL RETURN

DAMPER,CHANGE PEDAL

BOLT-FLANGED,6X20
