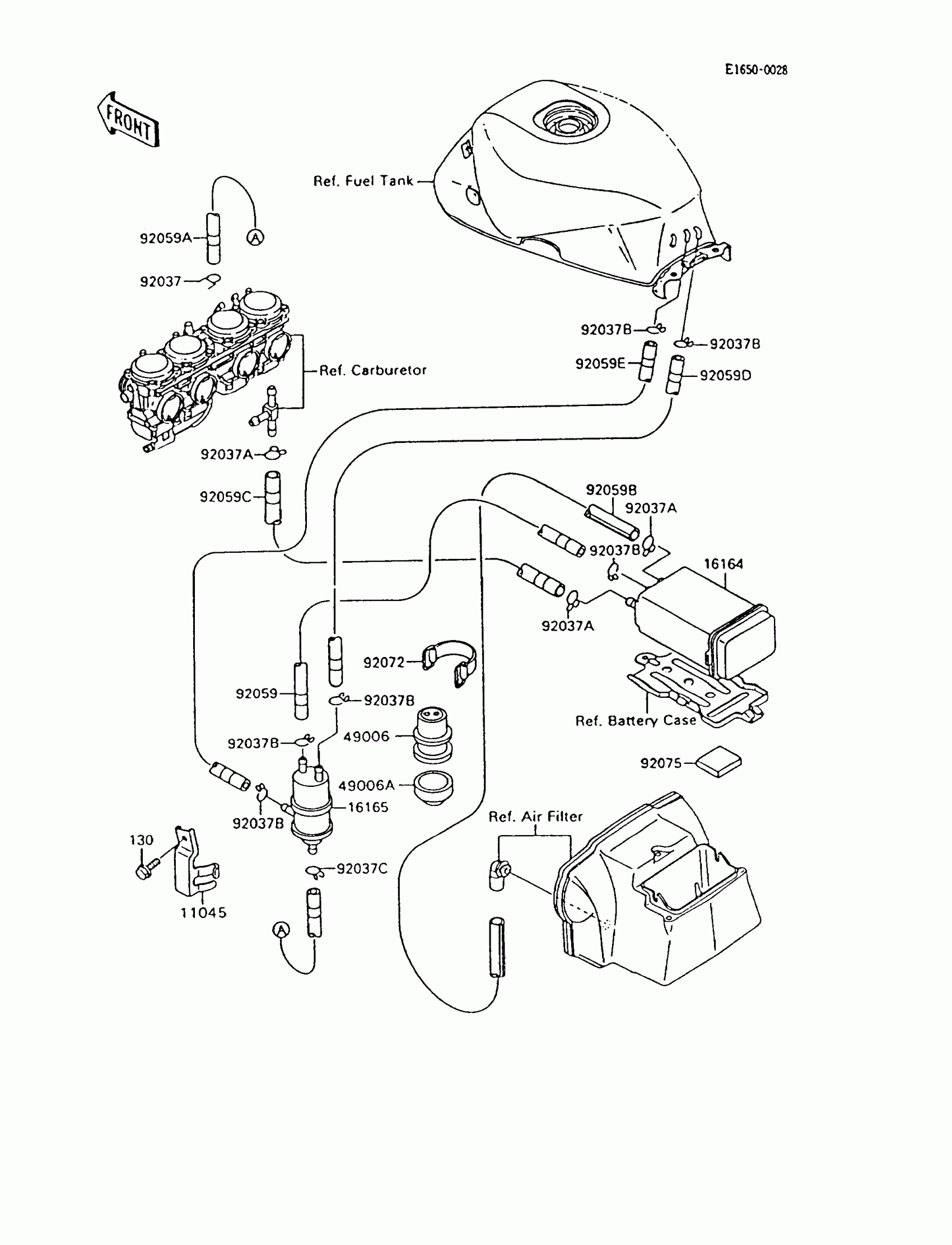

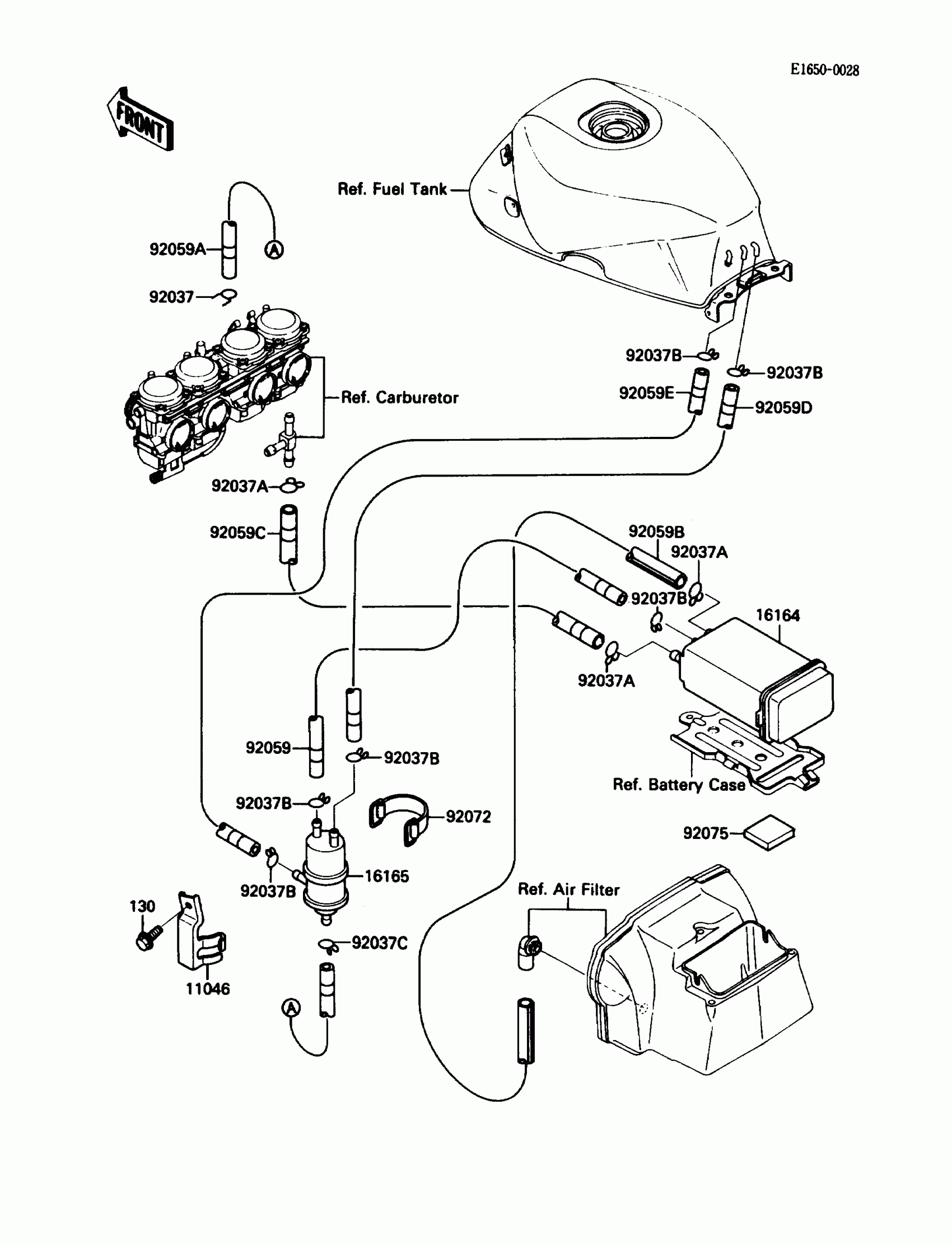

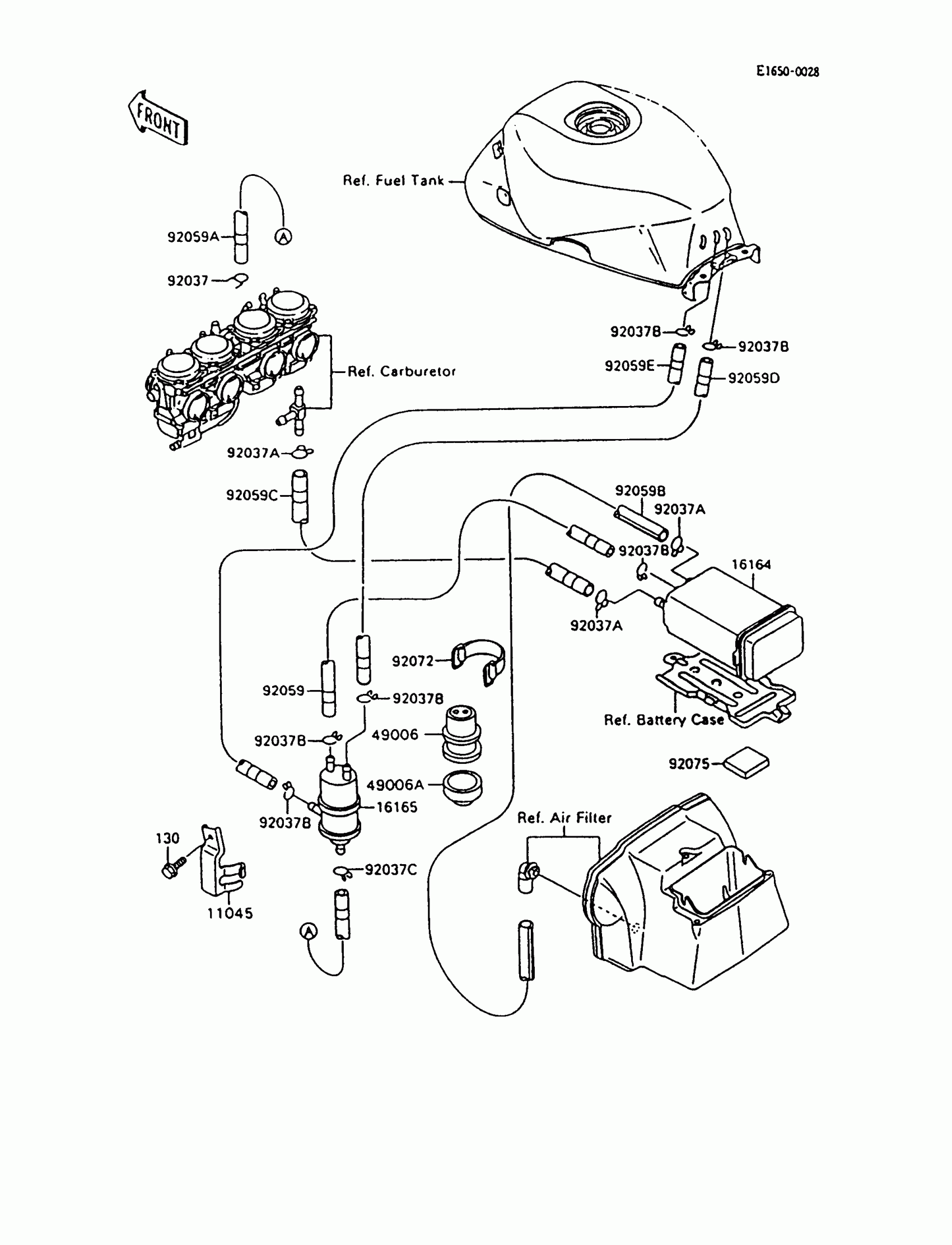

Kawasaki Ninja® 600R Fuel Evaporative System Diagram

Description

Price

11045

BRACKET,SEPARATOR

11045-1597

Unavailable

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

49006

BOOT

49006-1263

$15.99

49006A

BOOT

49006-1264

Unavailable

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92059

TUBE,5X10X380,BLUE

92059-1604

Unavailable

92059A

TUBE,4X9X705,WHITE

92059-1690

$19.09

92059B

TUBE,7X12X830,GREEN

92059-1806

$24.91

92059C

TUBE,7X12X630,YELLOW

92059-1855

$18.00

92059D

TUBE,5X10X290,BLUE

92059-1856

Unavailable

92059E

TUBE,5X10X320,RED

92059-1857

Unavailable

92072

BAND,L=50

92072-066

$16.08

92075

DAMPER

92075-1215

Unavailable

130

BOLT-FLANGED,6X12

130C0612

$0.63
