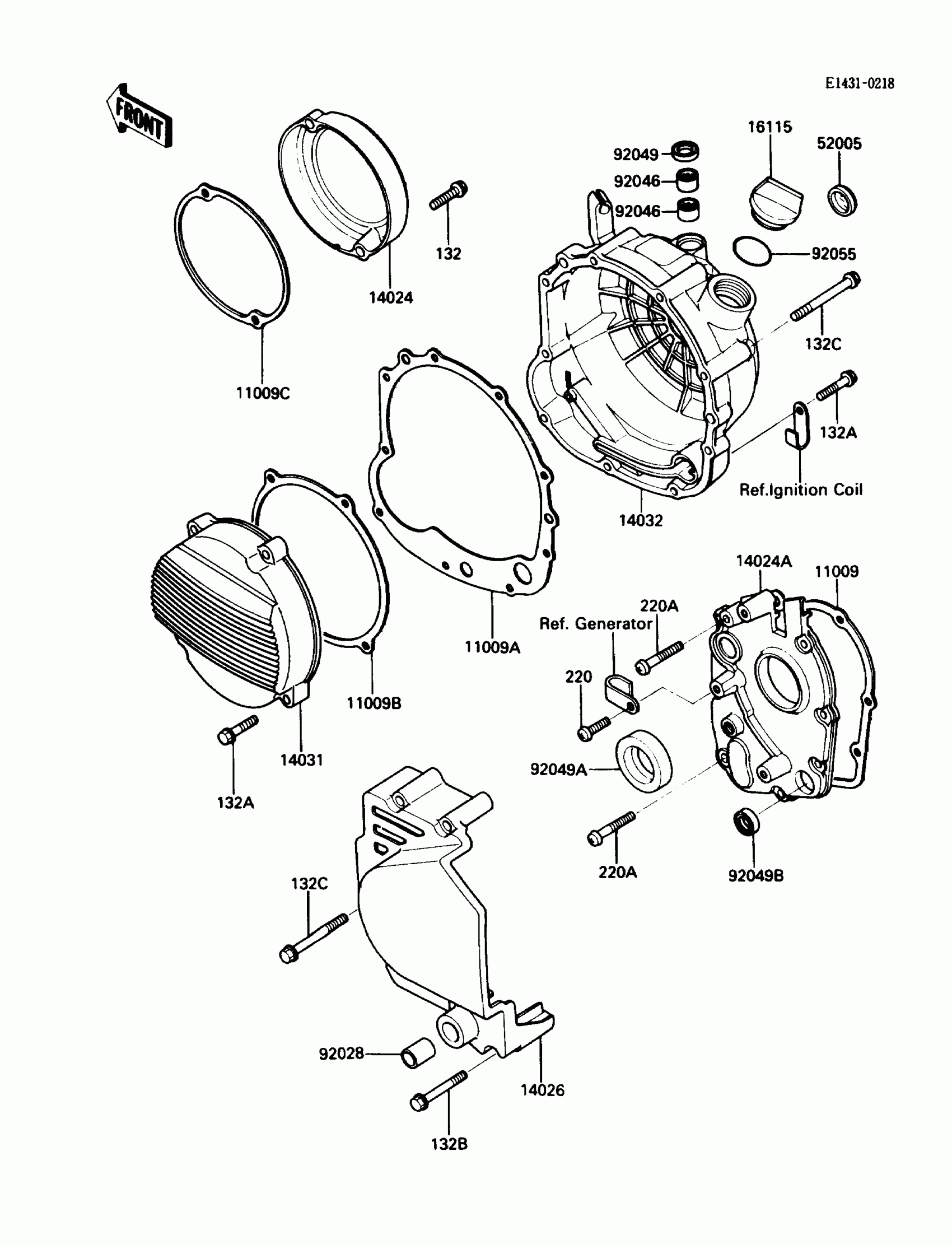

Kawasaki Ninja® 600R Engine Cover(s) Diagram

#

Description
Price

11009

GASKET,TRANSMISSION COVER

11009-1285

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1500

Unavailable

11009B

GASKET,GENERATOR COVER

11009-1502

Unavailable

11009C

GASKET,PULSING COIL COVER

11009-1503

Unavailable

14024

COVER,PULSING COIL

14024-1425

$82.43

14024A

COVER,TRANSMISSION

14025-1700

Unavailable

14026

COVER-CHAIN

14026-1134

Unavailable

14031

COVER-GENERATOR

14031-1208

$103.29

14032

COVER-CLUTCH

14032-1254

$234.57

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92028

BUSHING,13X15X20

92028-1251

$12.60

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$9.28

92049A

SEAL-OIL,SC325210

92050-024

$8.17

92049B

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL,6X50

132J0650

$4.44

132C

BOLT-FLANGED-SMALL,6X60

132J0660

$4.89

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

220A

SCREW PAN HEAD 6X40

220B0640

Unavailable
