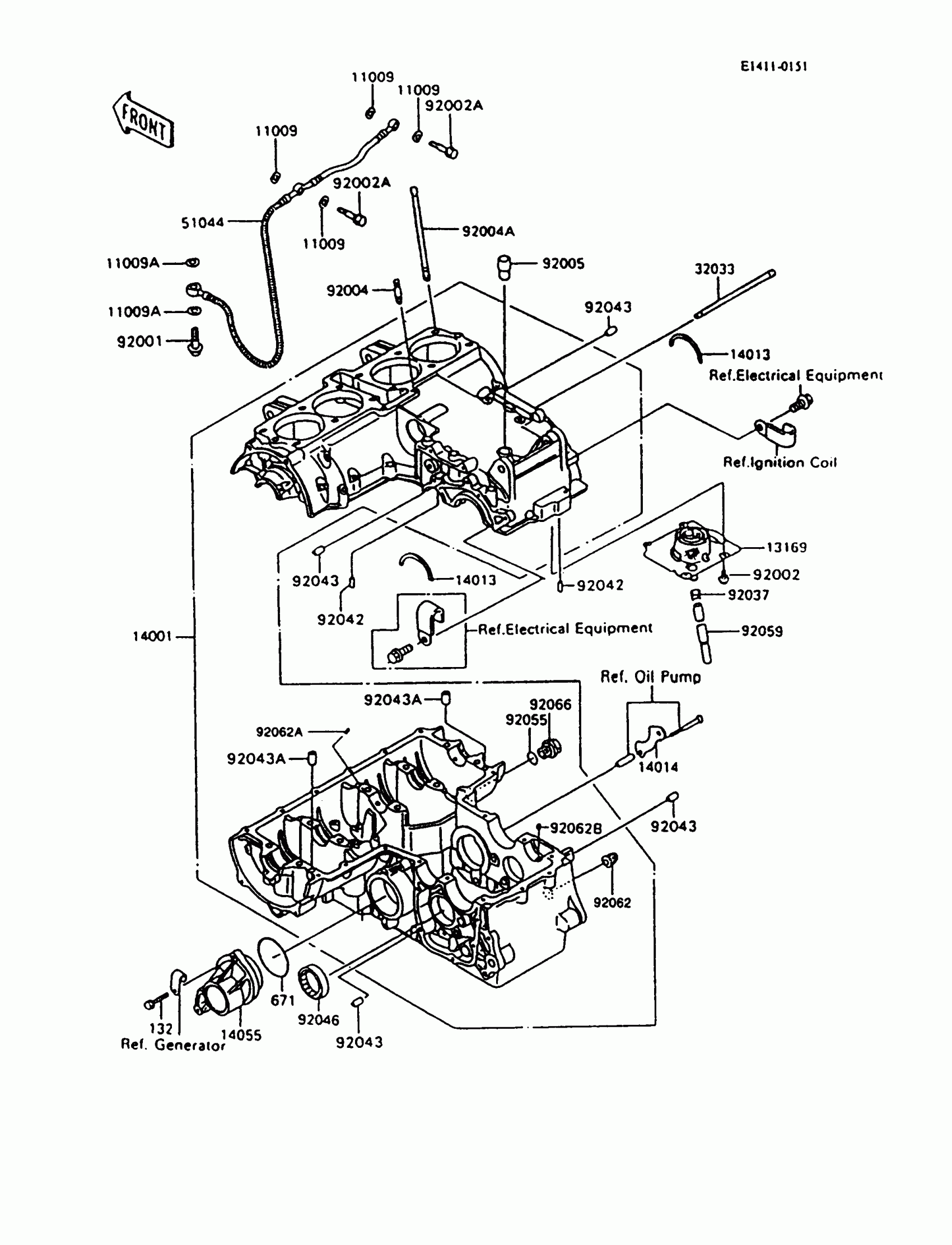

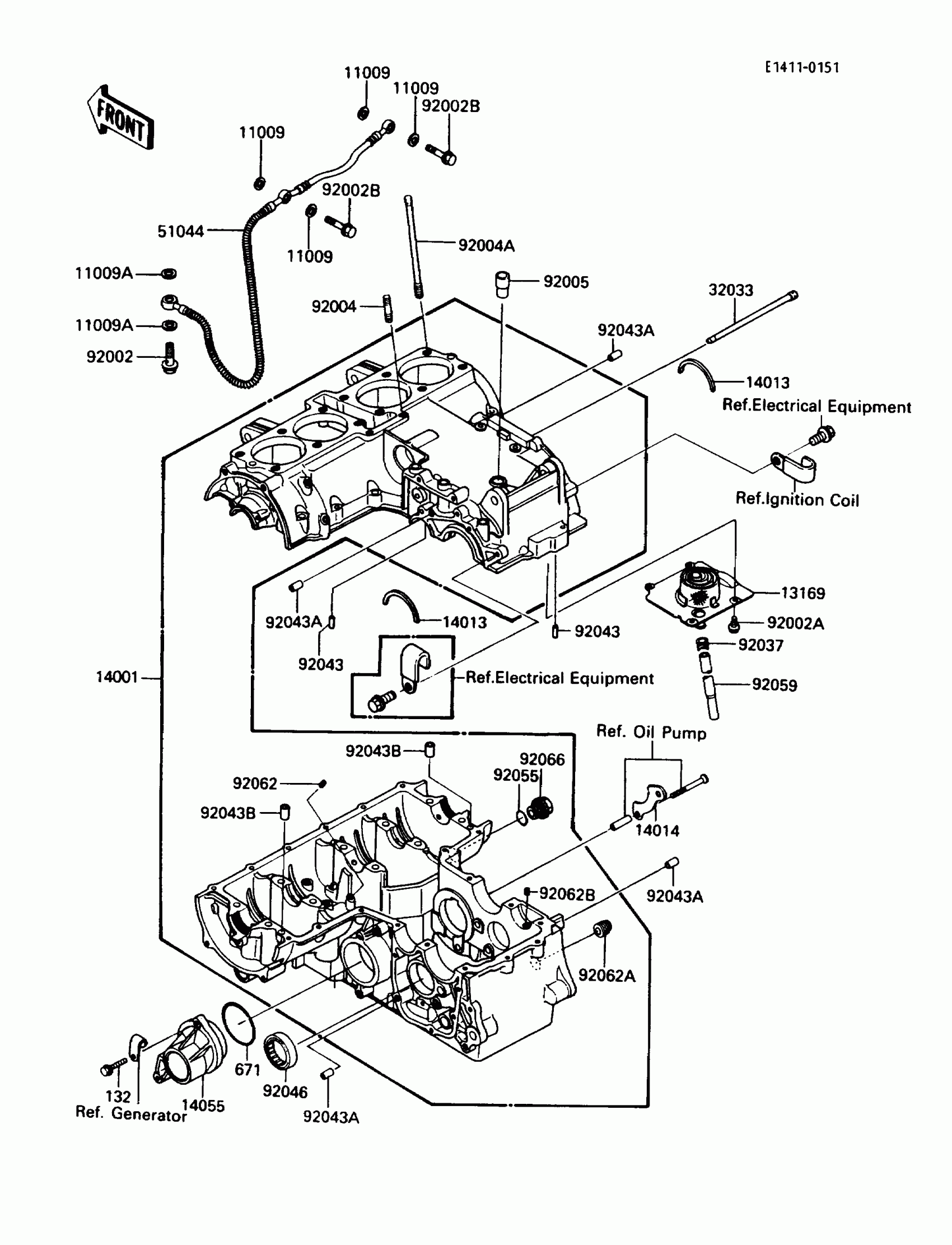

Kawasaki Ninja® 600R Crankcase Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11009A

GASKET,12.5X18X1.5

11009-1376

$1.85

13169

PLATE,BREATHER

13169-1966

Unavailable

14001

SET-CRANKCASE

14001-5217

Unavailable

14013

RING-POSITION

14013-004

$10.19

14014

PLATE-POSITION

14014-1006

$11.91

14055

CASE-GEAR

14055-1078

Unavailable

32033

PIPE,OIL

32033-1858

Unavailable

51044

TUBE-ASSY

51044-1071

$226.53

92002

BOLT,BANJO,12X23

92001-1871

$17.13

92002A

BOLT,6X10

92002-1449

$4.11

92002B

BOLT,BANJO,8X24

92002-1858

$11.50

92004

STUD,6X22

92004-059

$6.50

92004A

STUD,8X128.5

92004-1161

$15.31

92005

FITTING,BREATHER

92005-1129

$20.80

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92043

PIN,DOWEL,6X16

92042-016

$5.00

92043A

PIN,6.2X8X14

92043-1263

$0.43

92043B

PIN,8.2X10X14

92043-1264

$0.64

92046

BEARING-NEEDLE,37BTM4312

92046-051

$25.09

92055

RING-O,20X2

92055-1146

$8.58

92059

TUBE

92059-1544

Unavailable

92062

NOZZLE,BLACK

92062-011

$8.58

92062A

NOZZLE

92062-014

$9.89

92062B

NOZZLE,SILVER

92062-015

$3.70

92066

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

$11.50

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

671

O RING,55MM

671B2555

$6.22
