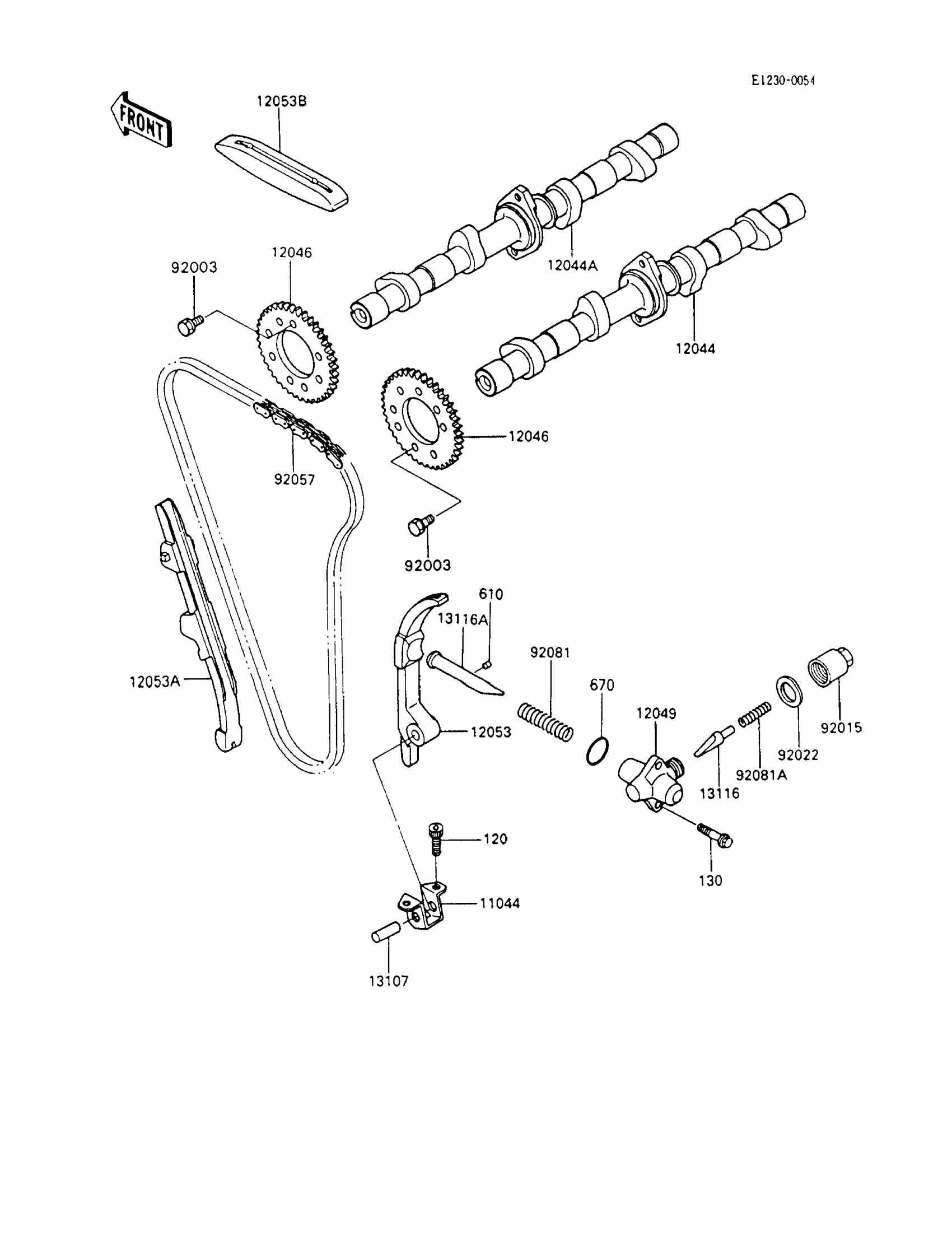

Kawasaki Ninja® 600R Camshaft(s)/Tensioner Diagram

Description

Price

11044

BRACKET,CHAIN GUIDE

11044-1079

Unavailable

12044

CAMSHAFT-VALVE,INTAKE

12044-1203

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1204

Unavailable

12046

SPROCKET,CAMSHAFT,42T

12046-1078

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1009

$54.23

12053

GUIDE-CHAIN,RR

12053-1158

Unavailable

12053A

GUIDE-CHAIN,FR

12053-1159

Unavailable

12053B

GUIDE-CHAIN,HEAD

12053-1160

Unavailable

13107

SHAFT,8X25

13107-1142

$7.68

13116

ROD-PUSH,TENSIONER

13116-1012

$19.66

13116A

ROD-PUSH,CAM CHAIN

13116-1020

$38.11

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92015

NUT,CAP,18MM

92015-1100

$13.08

92022

WASHER,18.3X24X1.4

92022-1175

$4.39

92057

CHAIN,CAM,82RH2010-136L

92057-1190

$129.83

92081

SPRING,TENSIONER

92081-1075

$5.03

92081A

SPRING,TENSIONER

92081-1302

$5.54

120

BOLT-SOCKET,6X18

120P0618

$2.87

130

BOLT-FLANGED,6X25

130Y0625

$4.11

610

ROLLER,4X8

610A0408

$4.31

670

O RING,21MM

670B2021

$4.69
