1989 Kawasaki Ninja® 600R Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

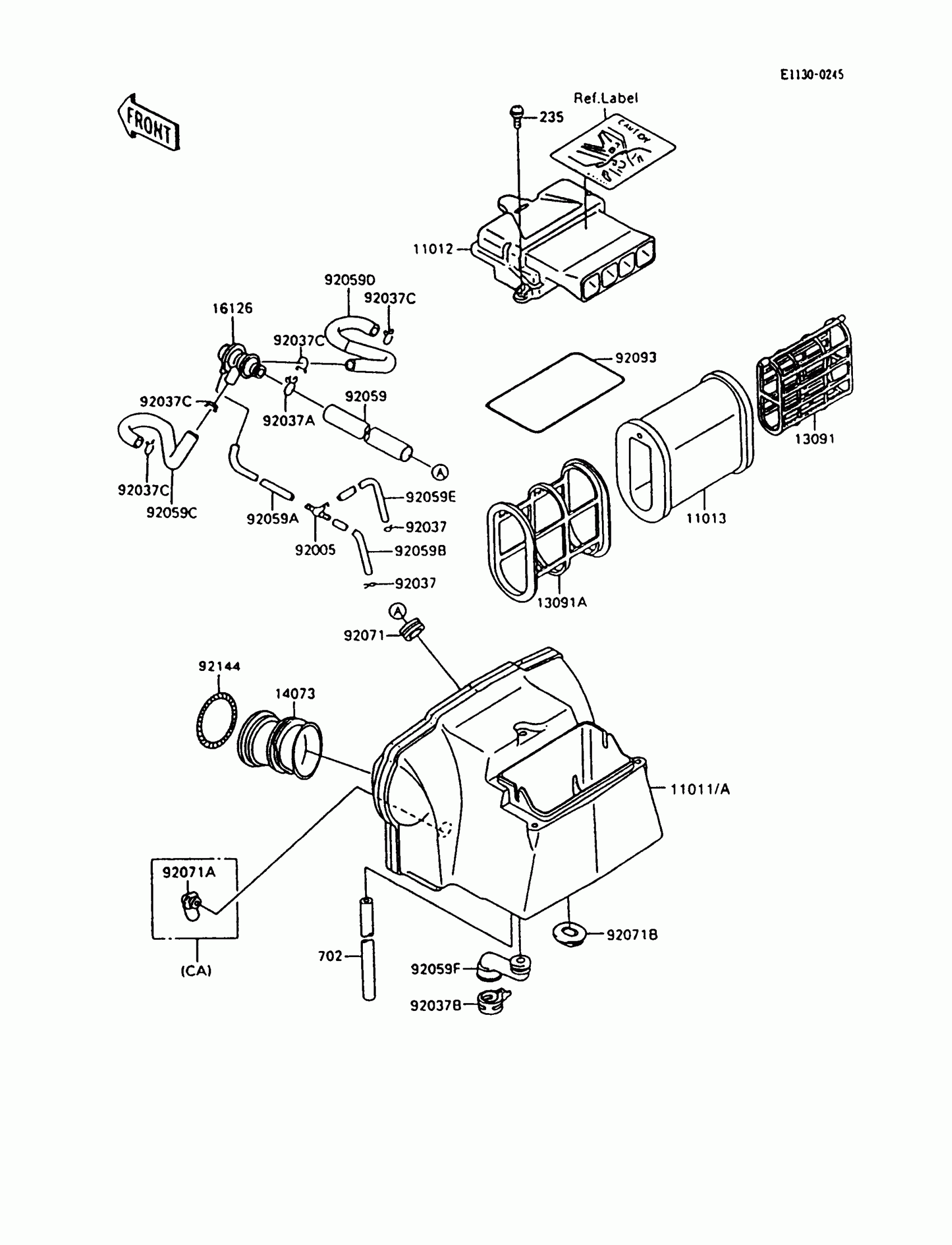

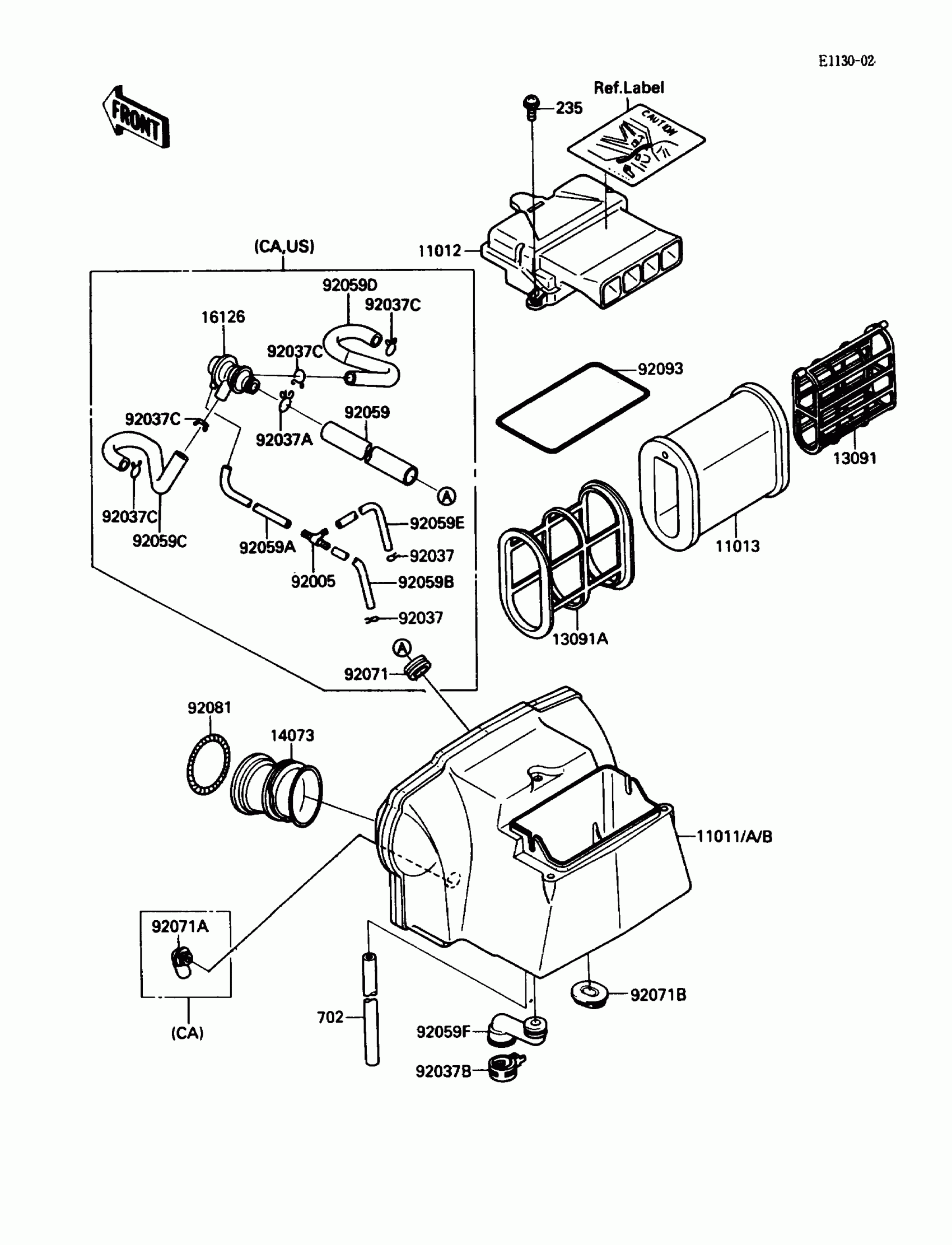

1989 Kawasaki Ninja® 600R Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1252

1
Out of stock

11011A

CASE-AIR FILTER

11011-1253

1
Out of stock

11011B

CASE-AIR FILTER

11011-1256

1
Out of stock

11012

CAP,AIR FILTER

11012-1619

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1154

1

$31.07

In stock

13091

HOLDER,ELEMENT

13091-1467

1

$16.54

In stock

13091A

HOLDER,ELEMENT

13091-1468

1

$15.51

In stock

14073

DUCT,CARBURETOR

14073-1211

1

$33.53

In stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037B

CLAMP

92037-1730

1

$8.39

In stock

92037C

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,19X25X260

92059-1031

1
Out of stock

92059A

TUBE,4X9X220

92059-1040

1

$9.85

In stock

92059B

TUBE,4X9X80

92059-1365

1

$12.97

In stock

92059C

TUBE,AIR SWITCH VALVE,LH

92059-1674

1
Out of stock

92059D

TUBE,AIR SWITCH VALVE,RH

92059-1675

1
Out of stock

92059E

TUBE,4X9X260

92059-1712

1

$15.01

In stock

92059F

TUBE,BREATHER

92059-1798

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1013

1

$5.61

In stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92071B

GROMMET,AIR FILTER

92071-1123

1

$5.95

In stock

92081

1

$10.26

In stock

92093

SEAL,AIR FILTER CAP

92093-1212

1
Out of stock

235

1

$3.66

In stock

702

TUBE-RUBBER

702A05100

1
Out of stock
