FUEL TANK (ZX600-A2)

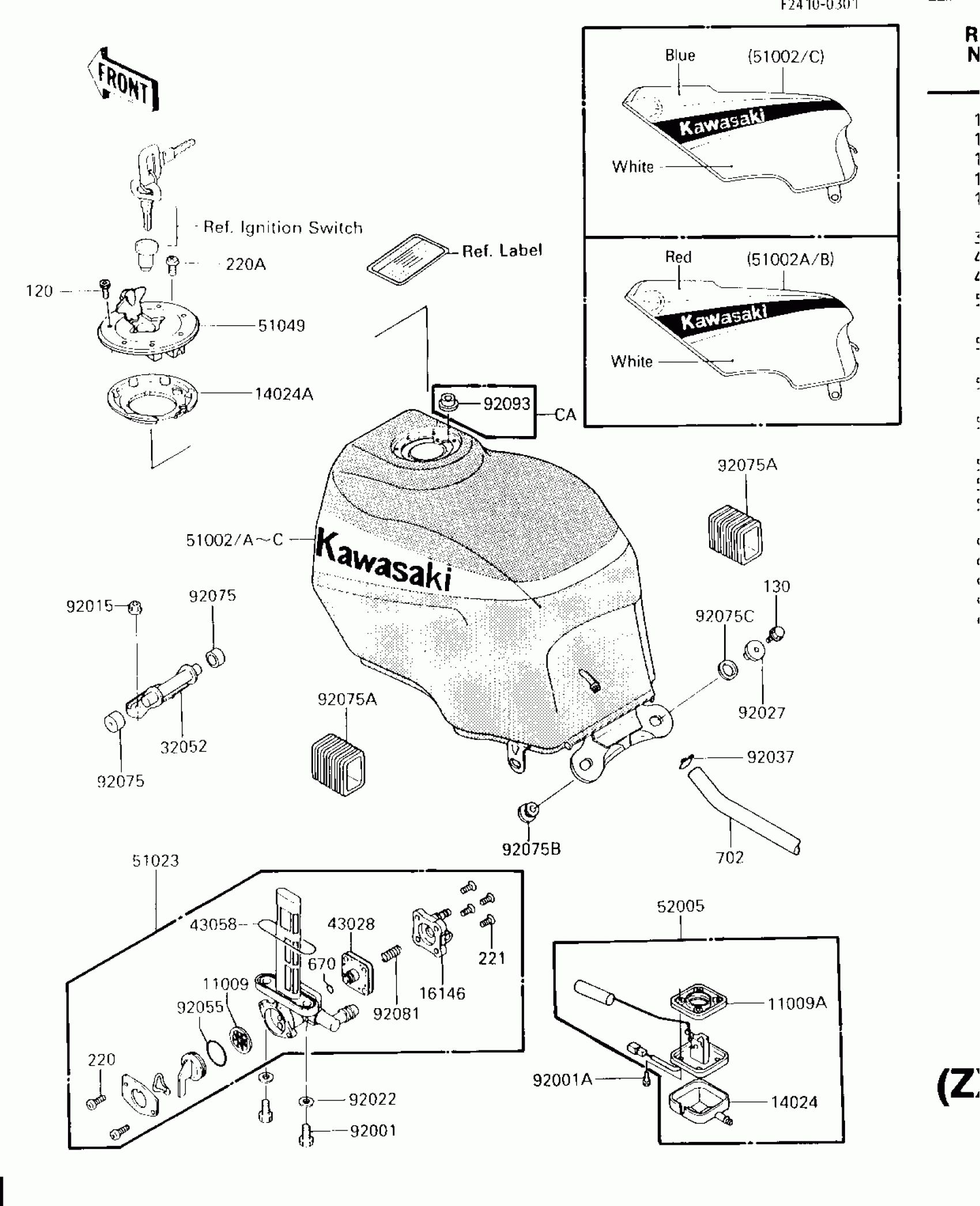

Kawasaki Ninja® 600 FUEL TANK (ZX600-A2) Diagram
#
11009
GASKET,TAP VALVE
11009-1188
$5.74
11009A
GASKET,FUEL GAUGE
11009-1656
Unavailable
14024
COVER,FUEL GAUGE
14025-1536
Unavailable
14024A
COVER,TANK CAP
14025-1913
$21.55
16146
COVER ASSY,FUEL TAP
16146-1009
$18.54
32052
BRACKET-TANK
32052-1202
Unavailable
43028
DIAPHRAGM
43028-1033
$22.90
43058
RING,TAP FLANGED
51039-003
$6.27
51002E
TANK-COMP-FUEL,BLUE/W
51002-5143-S3
$674.33
51002G
TANK-COMP-FUEL,RED/WH
51002-5169-P9
$768.98
51002H
TANK-COMP-FUEL,RED/WH
51002-5170-P9
$673.09
51002I
TANK-COMP-FUEL,BLUE/W
51002-5171-S3
$674.33
51023
TAP-ASSY,FUEL
51023-1186
$141.02
51049
CAP-TANK,FUEL
51049-1079
$133.30
52005
GAUGE,FUEL
52005-1071
Unavailable
92001
BOLT,6X20
92001-1091
$3.92
92001A
BOLT,FUEL GAUGE
92001-1705
Unavailable
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=13.1
92027-251
Unavailable
92037
CLAMP,TUBE
92037-010
$3.92
92055
RING-O,TAP LEVER
92055-1085
$5.05
92075
DAMPER,FUEL TANK,FR
92075-1115
$6.57
92075A
DAMPER,FUEL TANK
92075-1700
$17.19
92075B
RUBBER,FENDER COVER
92075-174
$4.78
92075C
DAMPER,FEMALE
92075-175
$4.39
92081
SPRING,TAP DIAPHRAGM
92081-1240
$3.89
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
120
BOLT-SOCKET,5X12
120S0512
$1.71
130
BOLT-FLANGED,6X25
130J0625
$2.62
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROSS
220C0508
$0.55
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-BREATHER (BULK)
702A071000
$13.38
