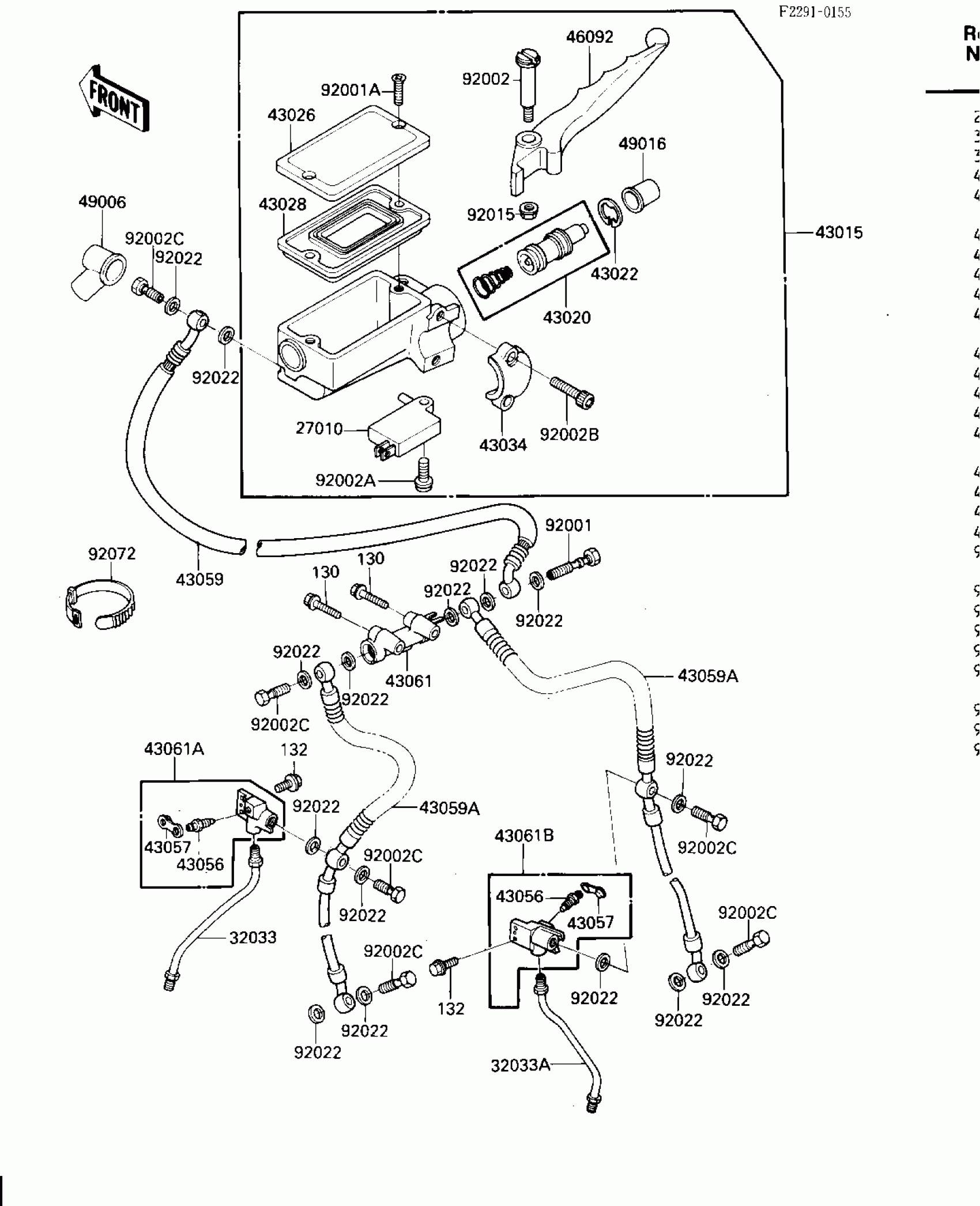

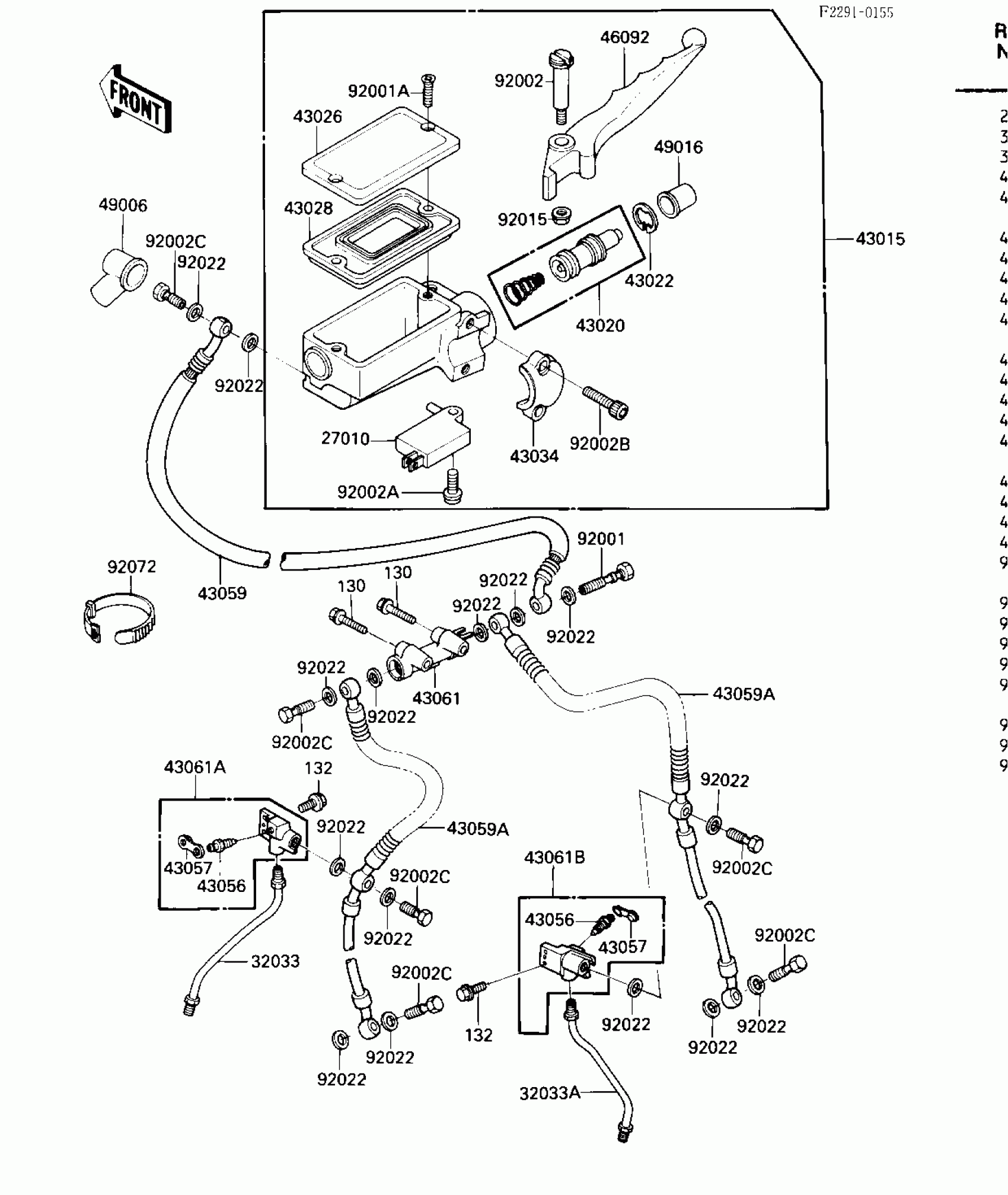

Kawasaki Ninja® 600 FRONT MASTER CYLINDER Diagram

#

Description
Price

27010

SWITCH,BRAKE

27010-1170

$35.04

32033

PIPE,BRAKE,FR,LH

32033-1240

Unavailable

32033A

PIPE,BRAKE,FR,RH

32033-1241

Unavailable

43015

CYLINDER-ASSY-MASTER,

43015-1288

$415.41

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,FR

43026-1055

$48.83

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43056

BREATHER-BRAKE

43056-1051

$15.74

43057

CAP-BREATHER

43057-1001

$4.91

43059

HOSE-BRAKE,FR

43059-1616

Unavailable

43059A

HOSE-BRAKE,FR

43059-1297

Unavailable

43061

JOINT-BRAKE

43061-1004

$72.14

43061A

JOINT-BRAKE,FORK.LH

43061-1057

$34.88

43061B

JOINT-BRAKE,FORK,RH

43061-1058

$36.31

46092

LEVER-GRIP,FRONT BRAKE

46092-1117

$24.80

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

BOLT,OIL,L=37

92002-1909

$11.83

92001A

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92072

BAND,L=186

92072-056

$5.00

130

BOLT-FLANGED,6X60

130G0660

$4.16

132

BOLT-FLANGED-SMALL

132H0616

$1.47
