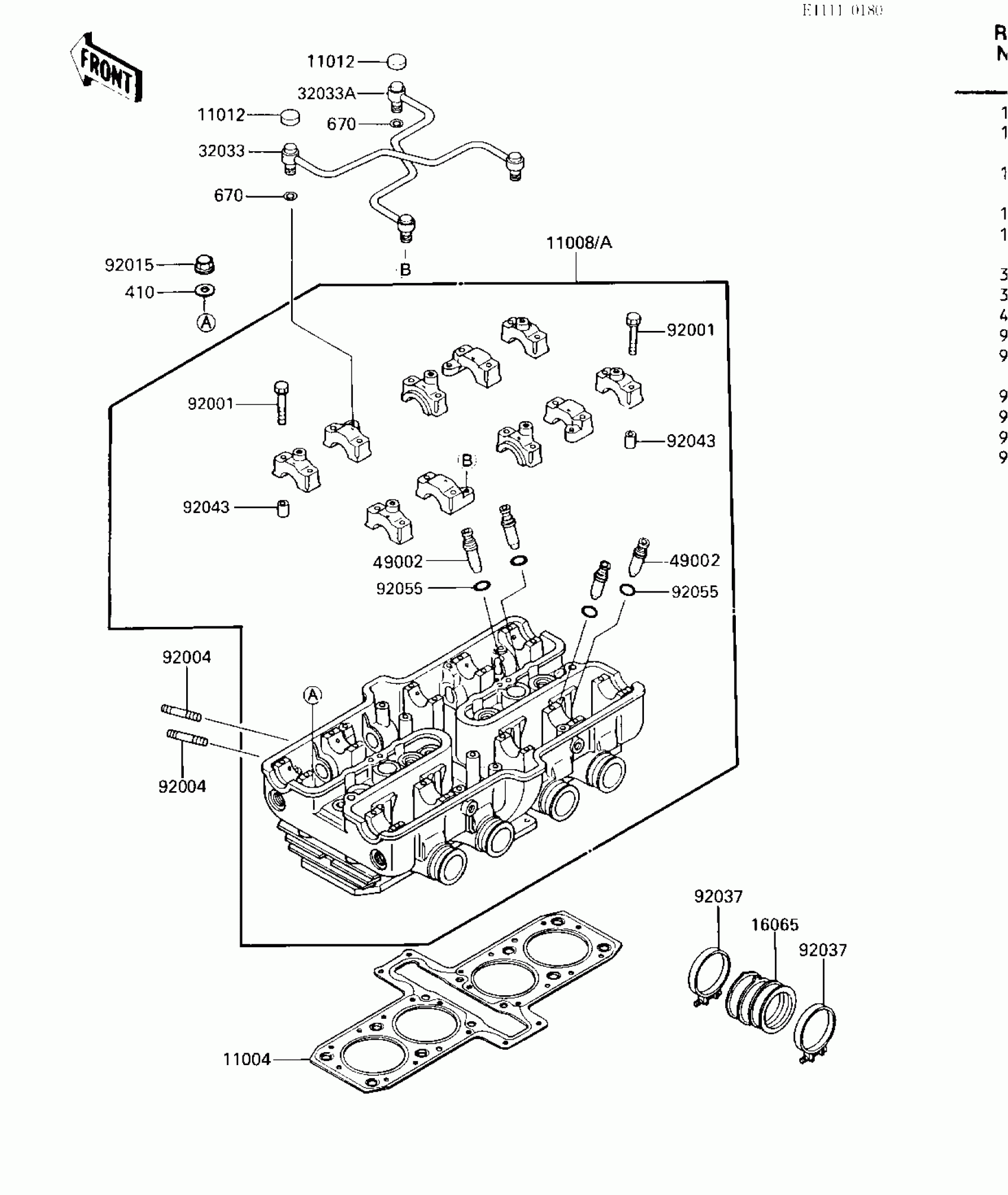

Kawasaki Ninja® 600 CYLINDER HEAD Diagram

Description

Price

11004

GASKET-HEAD

11004-1152

$102.84

11008

HEAD-COMP-CYLINDER

11008-1172

Unavailable

11008A

11008-1196 (Canada)

11008-1173

Unavailable

11012

CAP

11012-1491

$6.80

16065

HOLDER-CARBURETOR

16065-1129

$22.97

32033

PIPE

32033-1942

Unavailable

32033A

PIPE

32033-1943

Unavailable

49002

GUIDE-VALVE

49002-1060

Unavailable

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92004

STUD,6X27

92004-066

$5.17

92015

NUT,CAP,8MM

92015-1151

$5.00

92037

CLAMP

92037-1326

$8.98

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,VALVE GUIDE

92055-1177

$8.64

410

WASHER PLAIN 8MM

410B0800

$0.93

670

O RING

670D1505

$4.31
