CRANKSHAFT

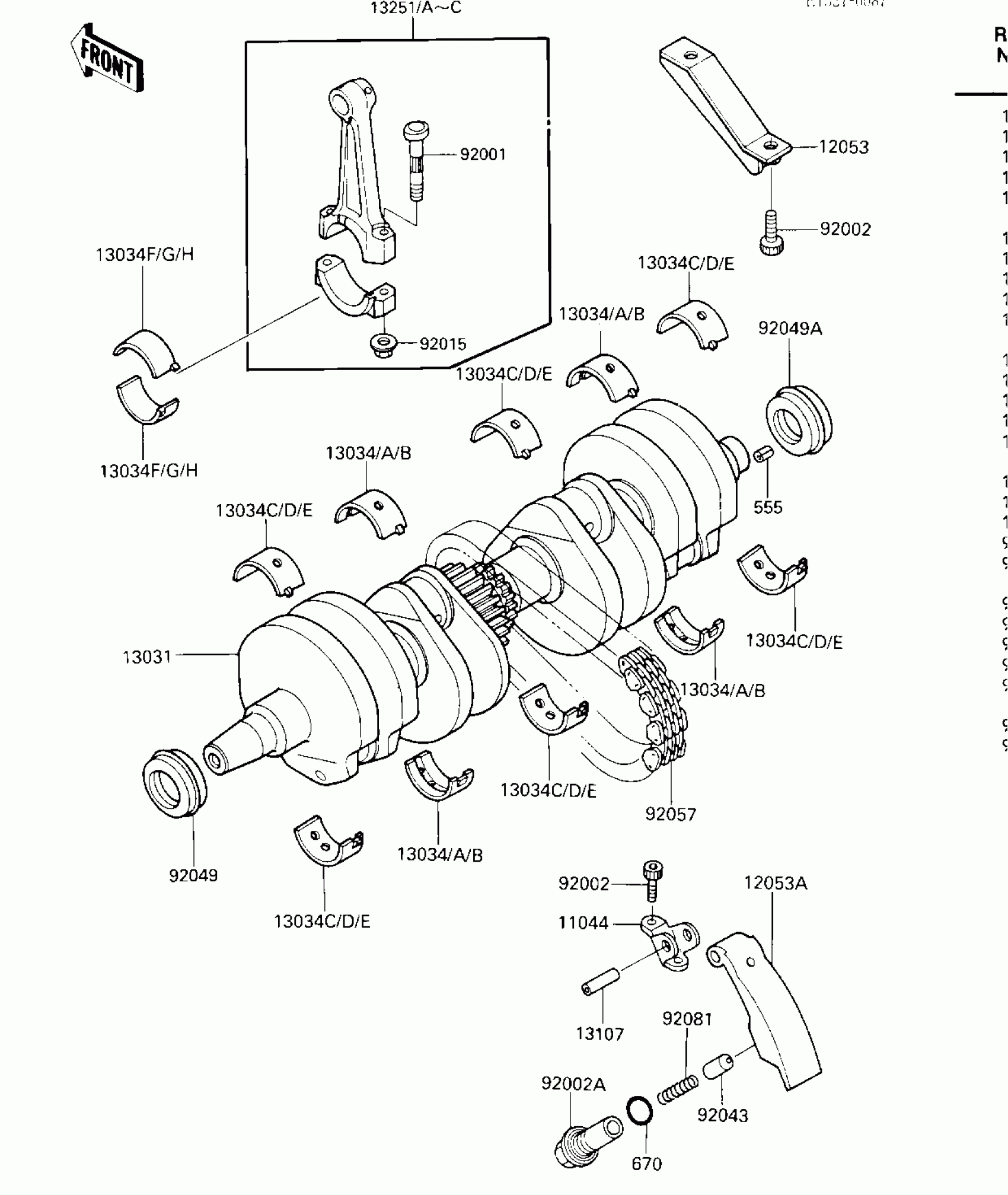

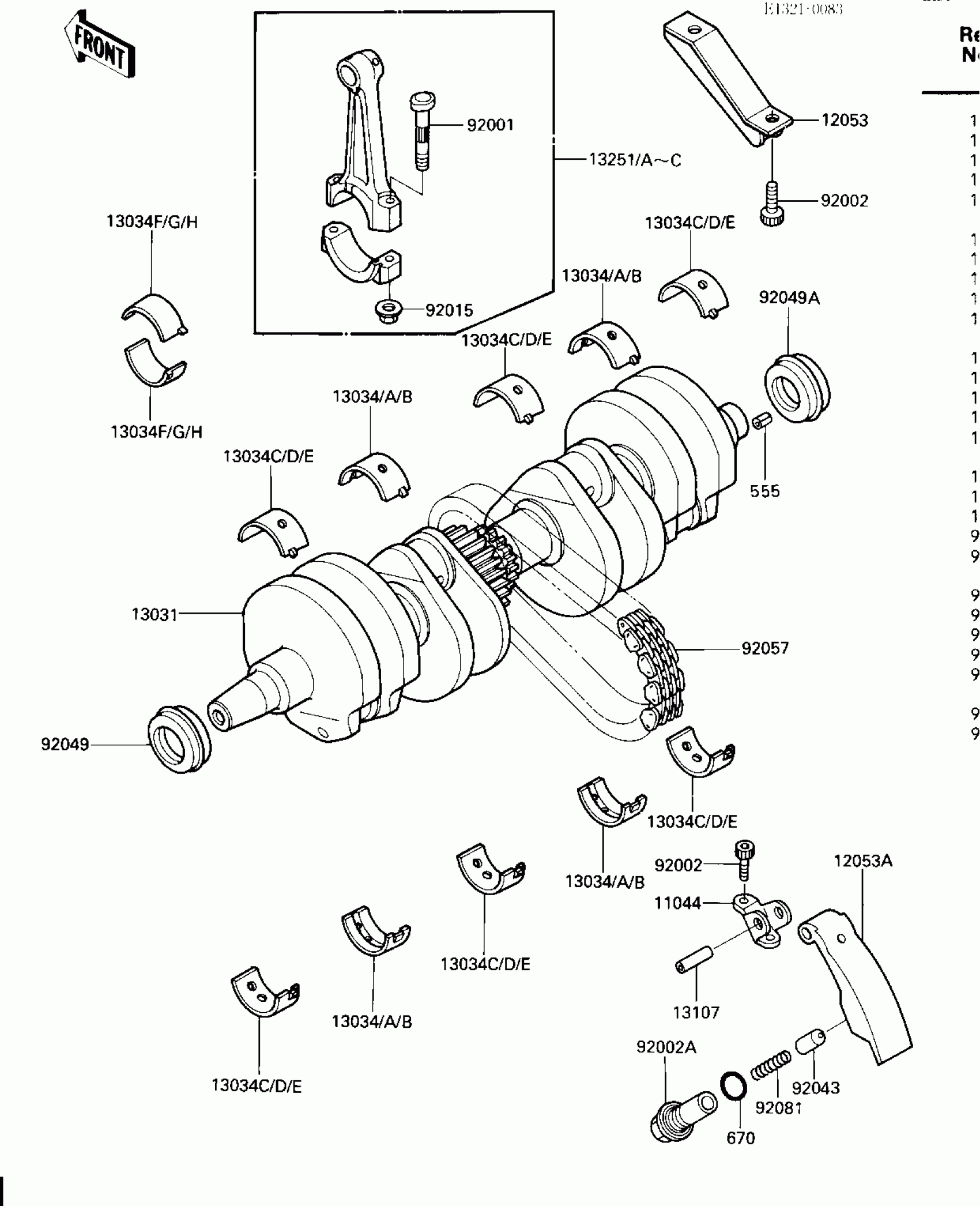

Kawasaki Ninja® 600 CRANKSHAFT Diagram
#
Description
Price
11044
BRACKET,CHAIN GUIDE
11044-1075
Unavailable
12053
GUIDE-CHAIN,UPP
12053-1156
Unavailable
12053A
GUIDE-CHAIN,LWR
12053-1157
$56.15
13031
CRANKSHAFT-COMP
13031-1191
Unavailable
13034
METAL,CRANKSHAFT,BROWN
13034-1016
Unavailable
13034A
METAL,CRANKSHAFT,BLACK
13034-1017
Unavailable
13034B
METAL,CRANKSHAFT,BLUE
13034-1018
Unavailable
13034C
BUSHING,CRANKSHAFT,BLUE
13034-1064
Unavailable
13034D
BUSHING,CRANKSHAFT,BLACK
13034-1065
Unavailable
13034E
BUSHING,CRANKSHAFT,BROWN
13034-1066
Unavailable
13034F
BUSHING,CONNECTING ROD,BLUE
13034-1067
Unavailable
13034G
BUSHING,CONNECTING ROD,BLACK
13034-1068
Unavailable
13034H
BUSHING,CONNECTING ROD,BROWN
13034-1069
Unavailable
13107
SHAFT,8X25
13107-1142
$7.68
13251
ROD-ASSY-CONNECTING,J
13251-1059-JJ
Unavailable
13251A
ROD-ASSY-CONNECTING,I
13251-1059-II
Unavailable
13251B
ROD-ASSY-CONNECTING,J
13251-1059-JJ
Unavailable
13251C
ROD-ASSY-CONNECTING,K
13251-1059-KK
Unavailable
92001
BOLT,CONNECTING ROD,8MM
92001-1887
$9.57
92002
BOLT,SOCKET,6X14
92002-1192
$5.59
92002A
BOLT
92002-1479
Unavailable
92015
NUT,FLANGED,8MM
92015-1311
$7.34
92043
PIN
92043-076
$11.71
92049
SEAL-OIL,HSCY25367
92049-1013
$10.40
92049A
SEAL-OIL,HSCY25397
92050-081
$13.07
92057
CHAIN,PRIMARY,MA0364X50L
92057-1011
$155.01
92081
SPRING
92081-112
$6.16
555
PIN-SPRING,4X8
555A0408
$3.92
670
O RING,16MM
670B2016
$1.36
