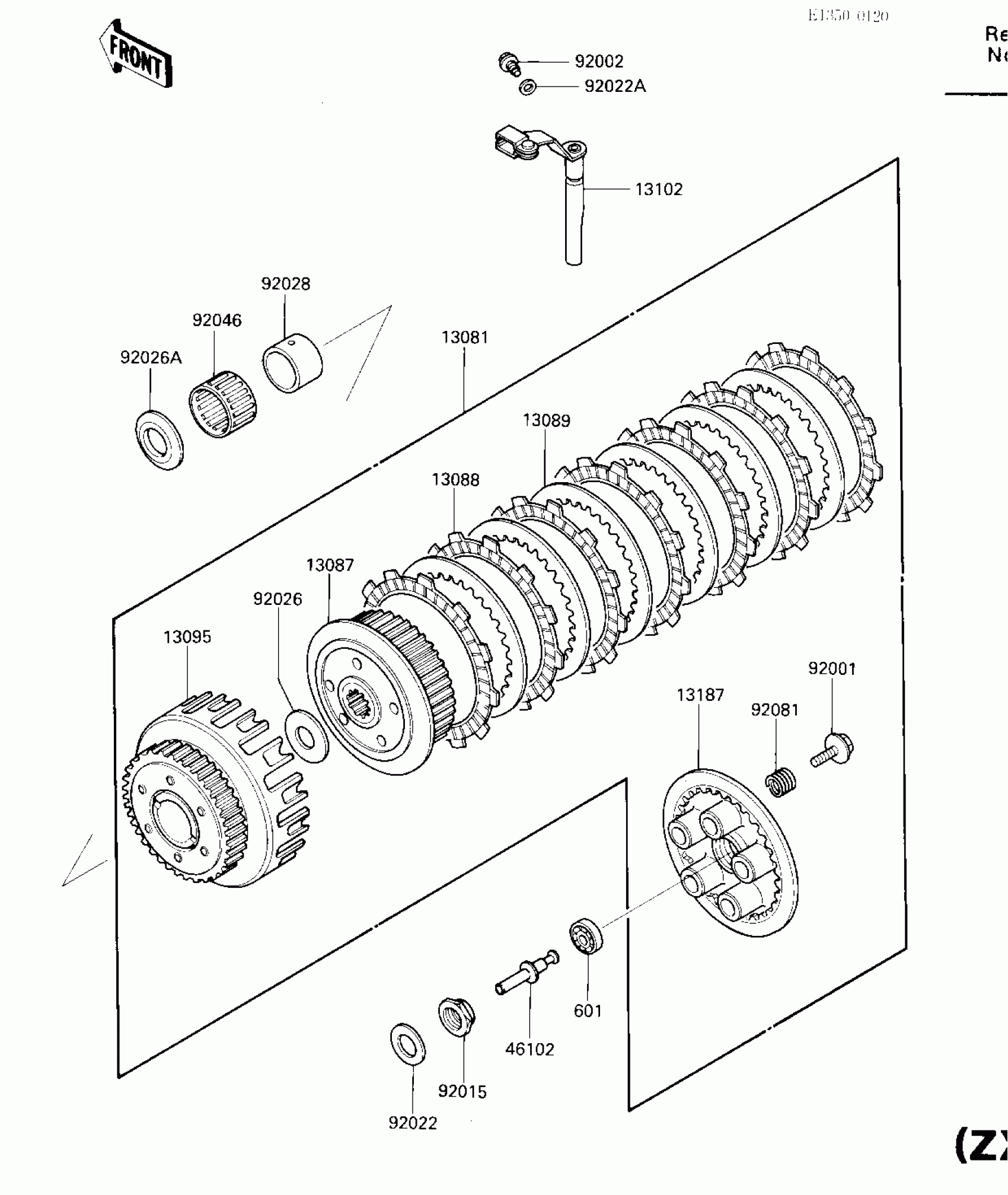

Kawasaki Ninja® 600 CLUTCH (ZX600AE051067-) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1253

Unavailable

13087

HUB-CLUTCH

13087-1052

Unavailable

13088

PLATE-FRICTION

13088-040

$12.57

13089

PLATE-CLUTCH,T=2.0

13089-026

$12.80

13095

HOUSING-COMP-CLUTCH

13095-1128

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1089

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1012

Unavailable

46102

ROD,CLUTCH

46102-1030

$29.92

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92002

BOLT,FLANGED,6X9.5

92002-1356

$6.22

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER,THRUST,T=5.5

92026-116

$17.60

92028

BUSHING,25X32X23.6

92028-178

$25.03

92046

BEARING-NEEDLE,KTV323723

92046-028

$21.24

92081

SPRING,CLUTCH

92081-139

$8.51

601

BEARING-BALL,6001C3ML01

92045-1235

$16.25
