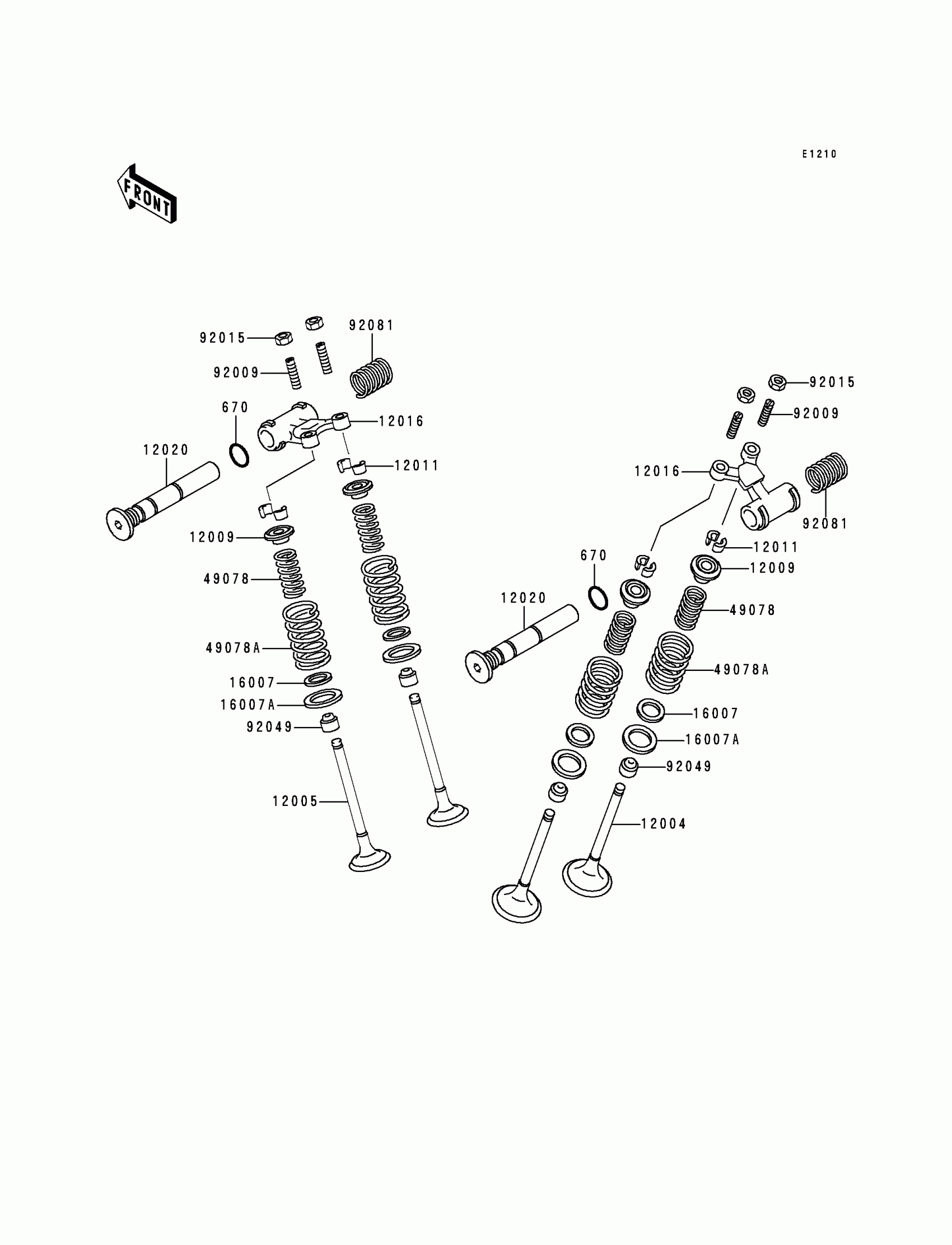

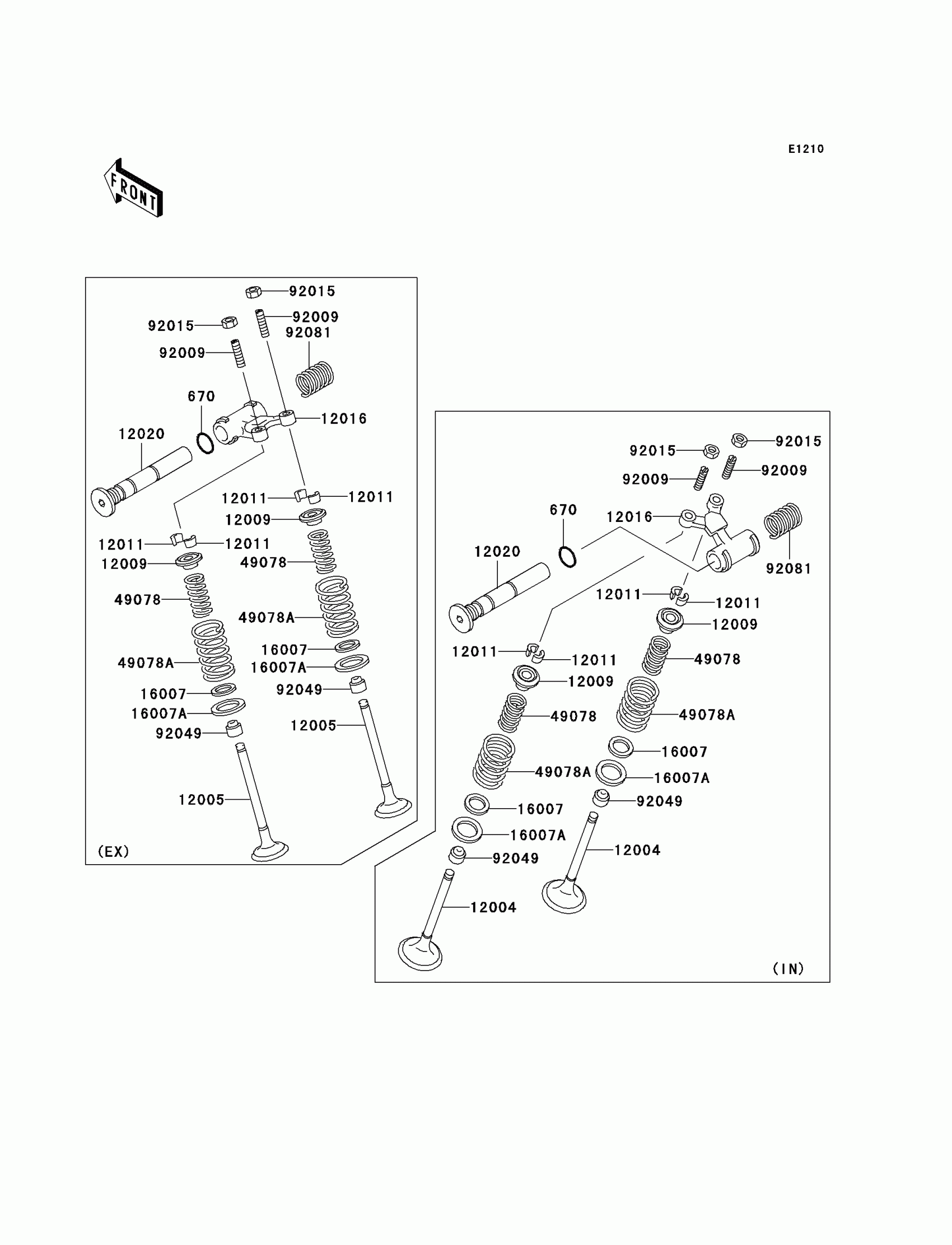

Kawasaki Ninja® 500R Valve(s) Diagram

Description

Price

670

O RING,16MM

670D2016

$1.70

12004

VALVE-INTAKE

12004-1119

$41.04

12005

VALVE-EXHAUST

12005-1052

$73.78

12009

RETAINER-VALVE SPRING

12009-1054

$10.86

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER

12016-1051

Unavailable

12020

SHAFT-ROCKER

12020-1057

$78.36

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1177

$5.54

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1178

$6.16

49078

SPRING-ENGINE VALVE,INNER

49078-1051

$16.53

49078A

SPRING-ENGINE VALVE,OUTER

49078-1052

$16.53

92009

SCREW,7MM

92009-1279

$10.62

92015

NUT,7MM

92015-1325

$5.00

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13

92081

SPRING,ROCKER ARM

92081-1636

$15.76
