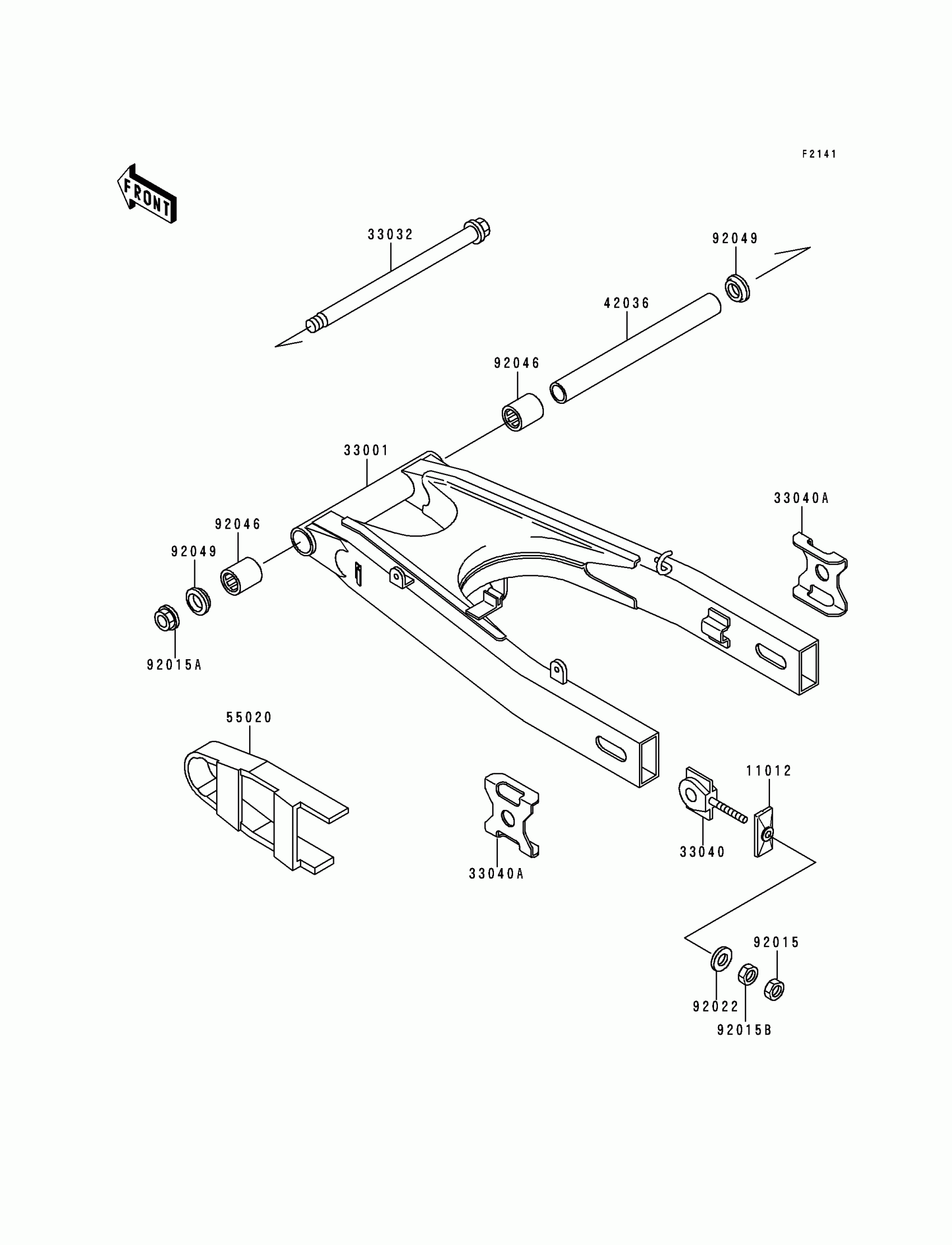

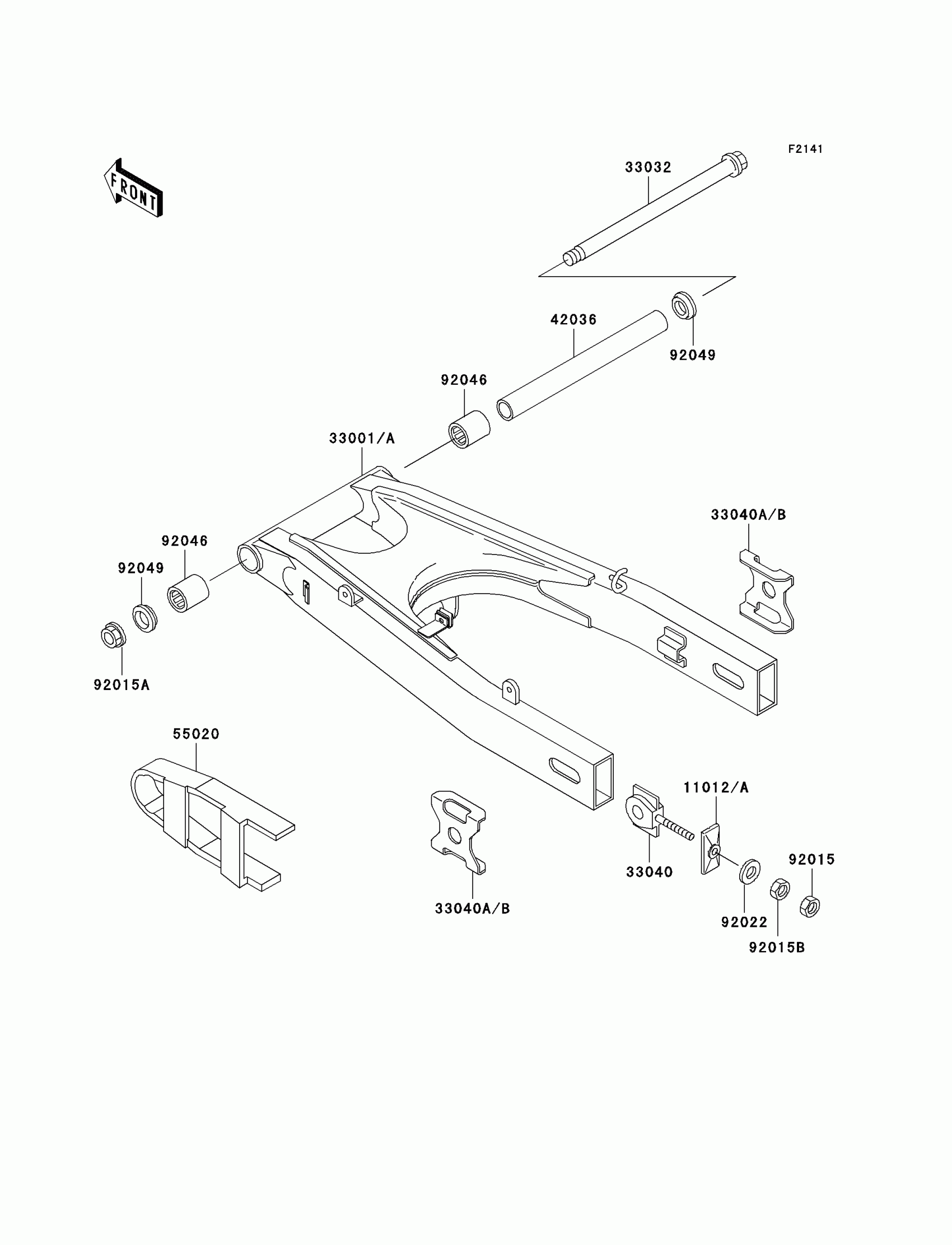

Kawasaki Ninja® 500R Swingarm Diagram

Description

Price

11012A

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$27.22

33001A

ARM-COMP-SWING,BLACK

33001-1625-18R

$490.08

33032

SHAFT-SWING ARM

33032-1109

$67.40

33040

ADJUSTER-CHAIN,INNER

33040-1116

$30.34

33040B

ADJUSTER-CHAIN,OUTER,BLACK

33040-1137-18R

$22.86

42036

SLEEVE,14.1X22X220

42036-1212

$68.02

55020

GUARD,CHAIN

55020-1500

$51.90

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,14MM

92015-1407

$9.91

92015B

NUT,8MM

92015-1658

$4.87

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92046

BEARING-NEEDLE,F-2220

92046-1162

$21.24

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$9.28
