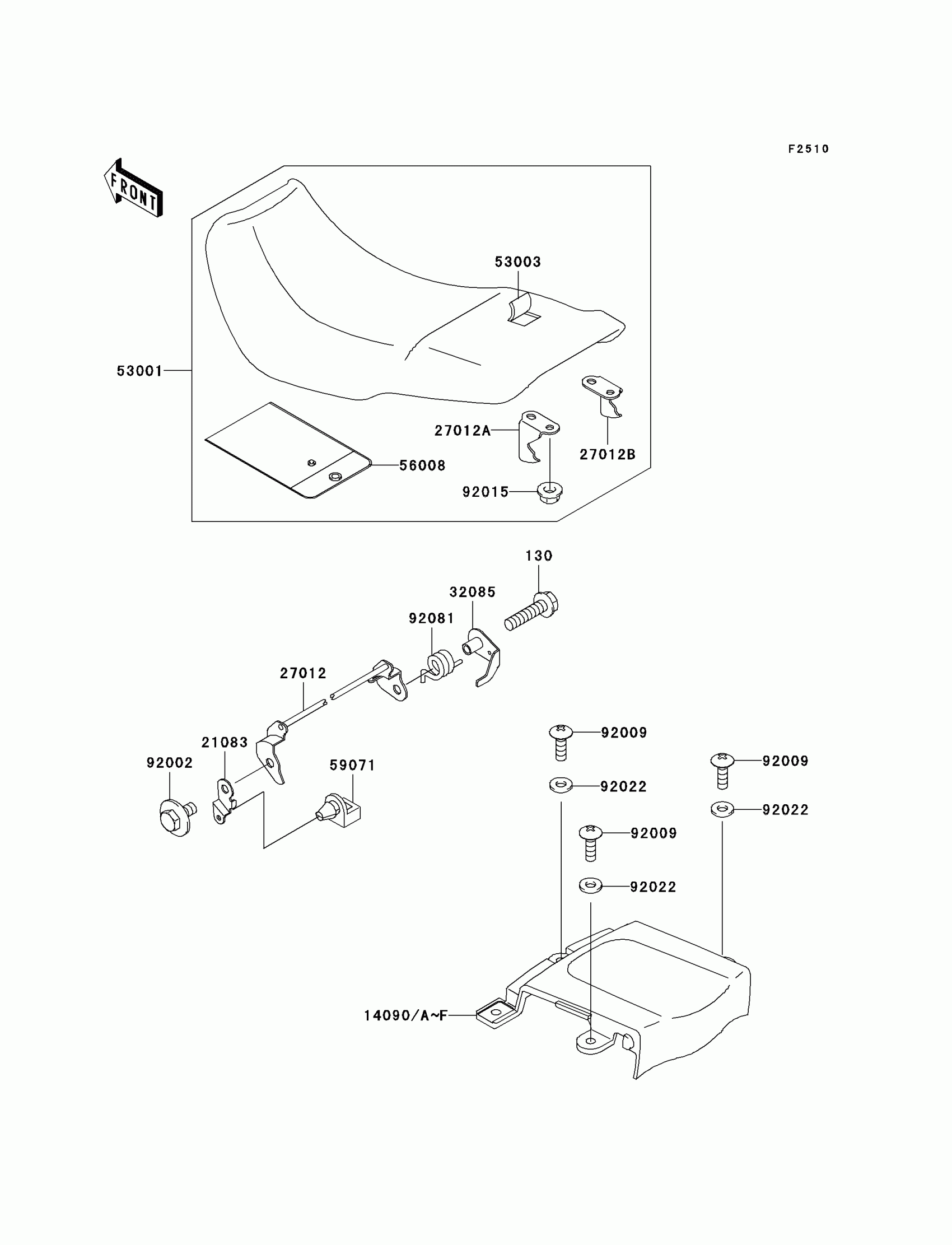

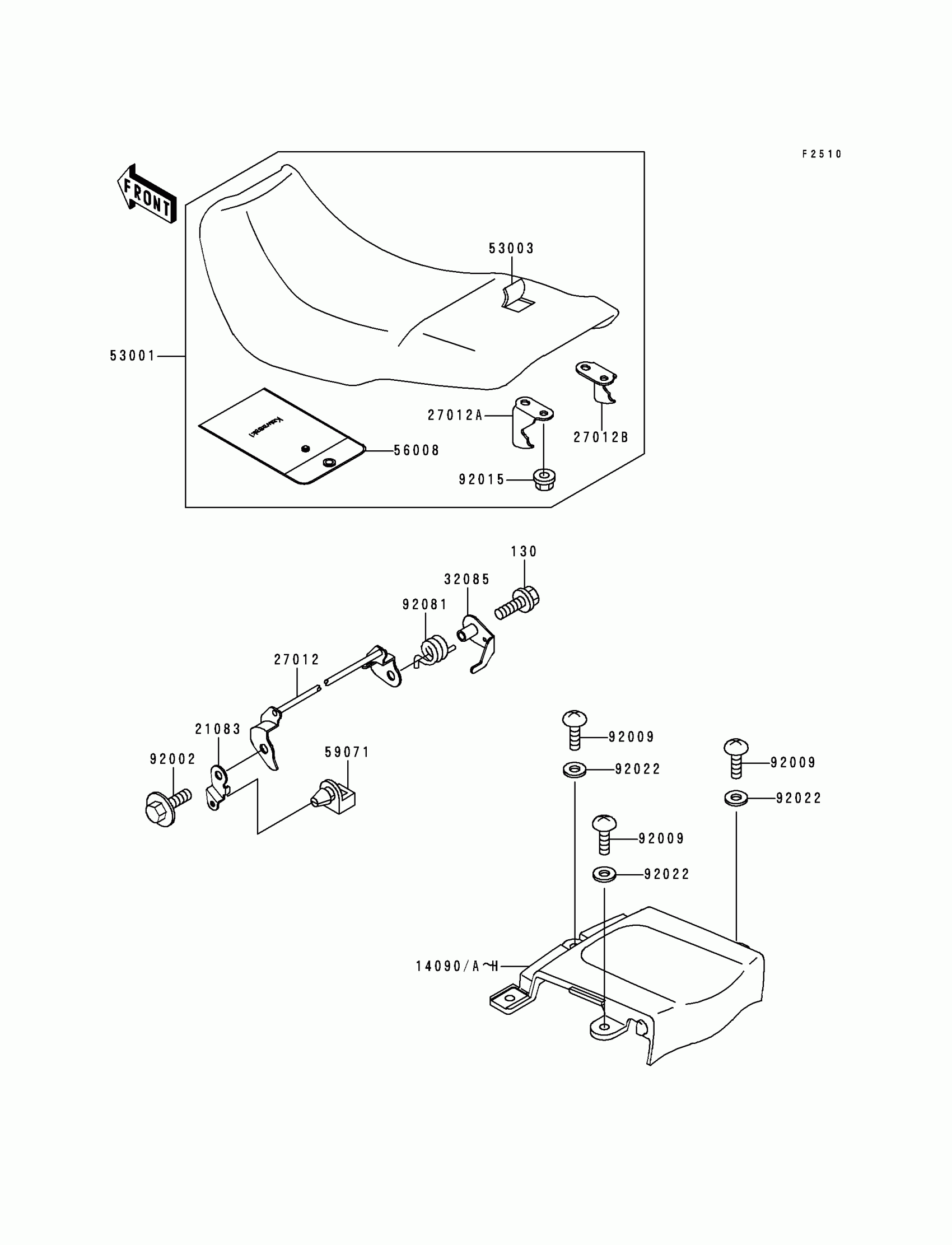

Kawasaki Ninja® 500R Seat Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130J0625

$2.62

21083

ARM,SEAT LOCK

21083-1063

$9.45

27012

HOOK,SEAT LOCK

27012-1363

$52.38

27012A

HOOK,SEAT,LH

27012-1377

$11.07

27012B

HOOK,SEAT,RH

27012-1378

$11.07

32085

STOPPER,SEAT LOCK SPRING

32085-1270

$18.41

53001

SEAT-ASSY,DUAL,BLACK

53001-1726-MA

$544.70

53003

LEATHER,SEAT,BLACK

53003-1284-MA

$202.47

56008

BAG,HAND BOOK

56008-1066

$52.38

59071

JOINT

59071-1103

$8.68

92002

BOLT,UPSET-WP,6X12

92002-1884

$4.11

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92081

SPRING

92081-1982

$6.87

14090

COVER,SEAT,C.P.RED

14090-1369-A5

Unavailable

14090B

COVER,SEAT,BLACK PEARL

14090-1369-B5

Unavailable
