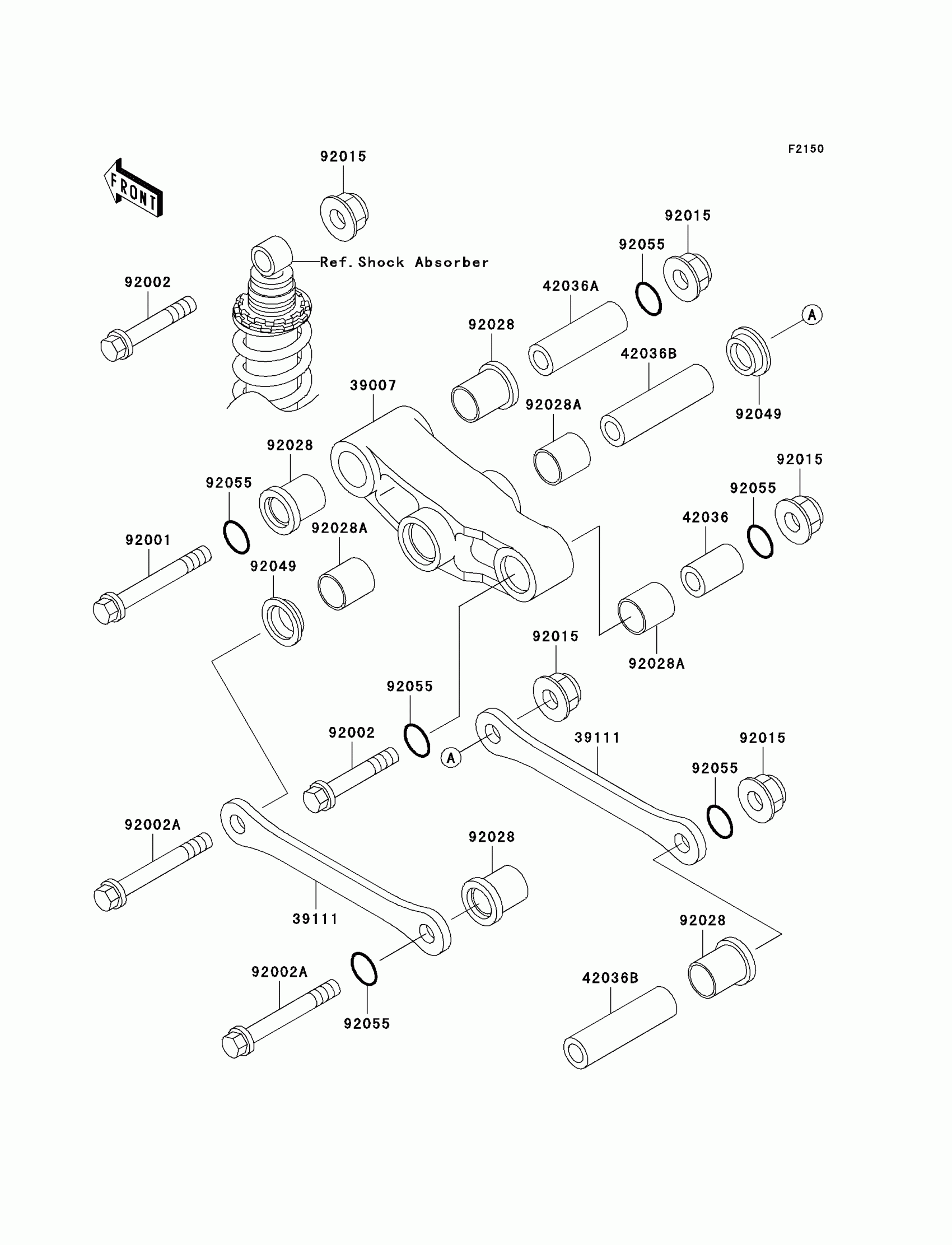

Kawasaki Ninja® 500R Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1120

$249.43

39111

ROD-TIE,SUSPENSION

39111-1133

$95.37

42036

SLEEVE,12.1X20X32

42036-1077

$16.69

42036A

SLEEVE,ARM,FR

42036-1078

$25.27

42036B

SLEEVE,12.1X20X74

42036-1102

$28.72

92001

BOLT,12X90

92001-1937

$17.55

92002

BOLT,12X55

92002-1130

$10.65

92002A

BOLT,FLANGED,12X100

92002-1886

$18.41

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92028

BUSHING

92028-1597

$7.36

92028A

BUSHING

92028-1598

$5.08

92049

SEAL-OIL,ARM

92049-1109

$9.28

92055

RING-O,19.8X2.2

92055-1215

$4.31
