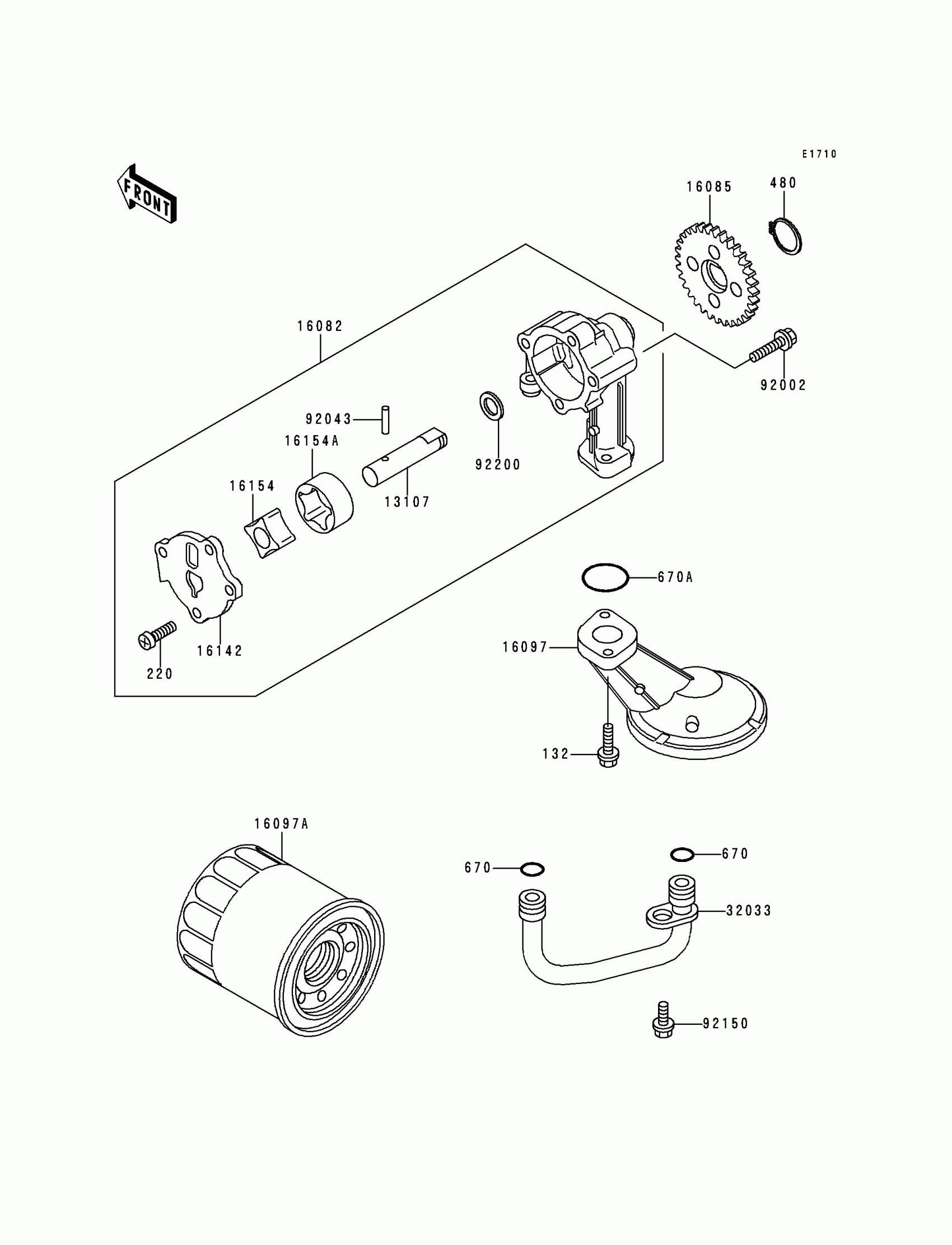

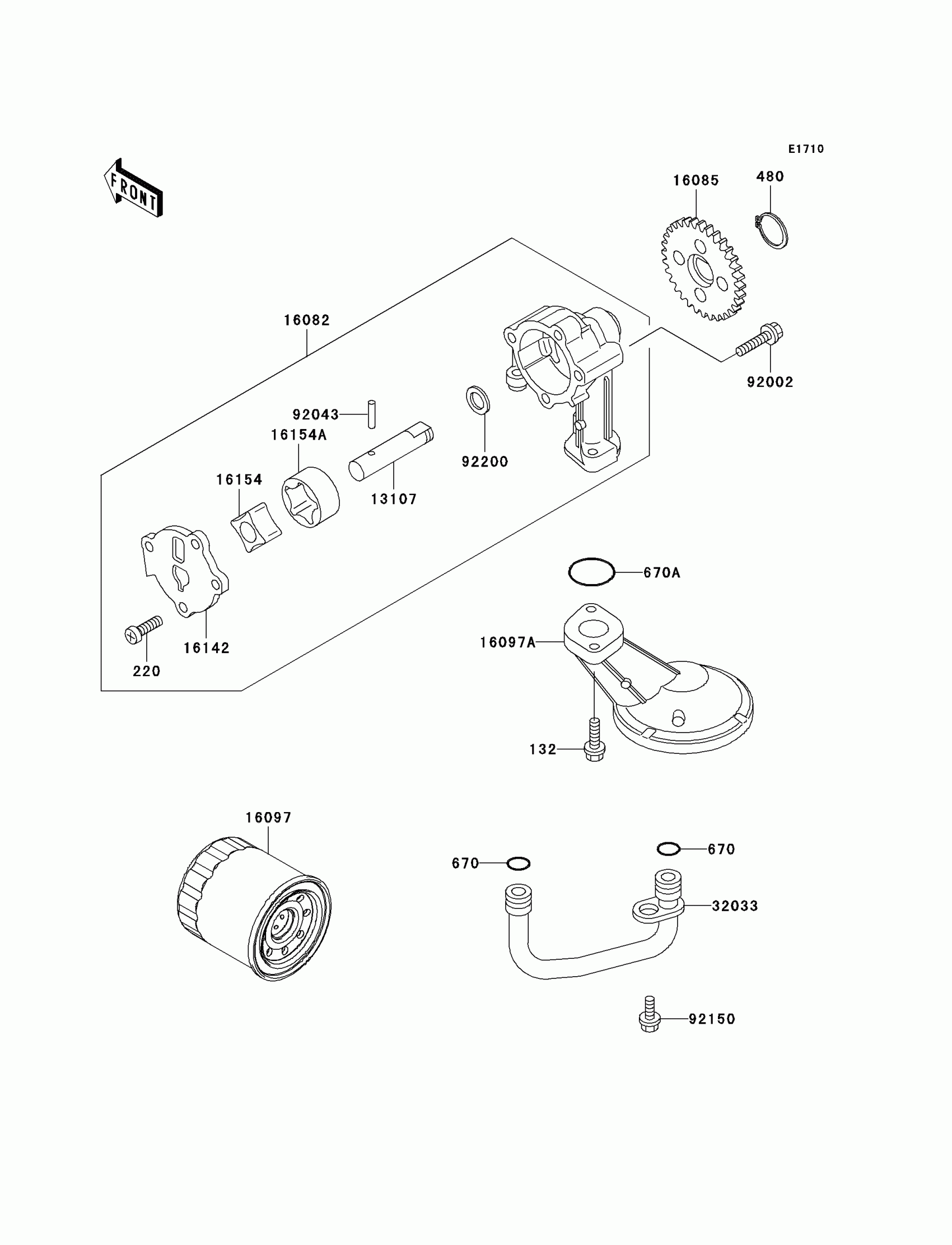

Kawasaki Ninja® 500R Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

220

SCREW-PAN-CROSS,6X16

220AA0616

$3.04

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

670

O RING,10MM

670B2010

$1.50

670A

O RING,22MM

670D2022

$9.59

13107

SHAFT,OIL PUMP

13107-1366

$30.76

16082

PUMP-ASSY-OIL

16082-1147

$203.18

16085

GEAR,OIL PUMP

16085-1143

$137.83

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16097A

FILTER-ASSY-OIL

16097-1056

$17.67

16142

COVER-PUMP,OIL

16142-1141

$31.86

16154

ROTOR-PUMP,INNER

16154-1111

$74.28

16154A

ROTOR-PUMP,OUTER

16154-1112

$74.28

32033

PIPE

32033-1540

$61.04

92002

BOLT,6X25

92002-1609

$4.73

92043

PIN,4X15.8

92043-1543

$1.76

92150

BOLT,FLANGED,6X12

92150-1826

$3.65

92200

WASHER

92200-1334

$2.76
