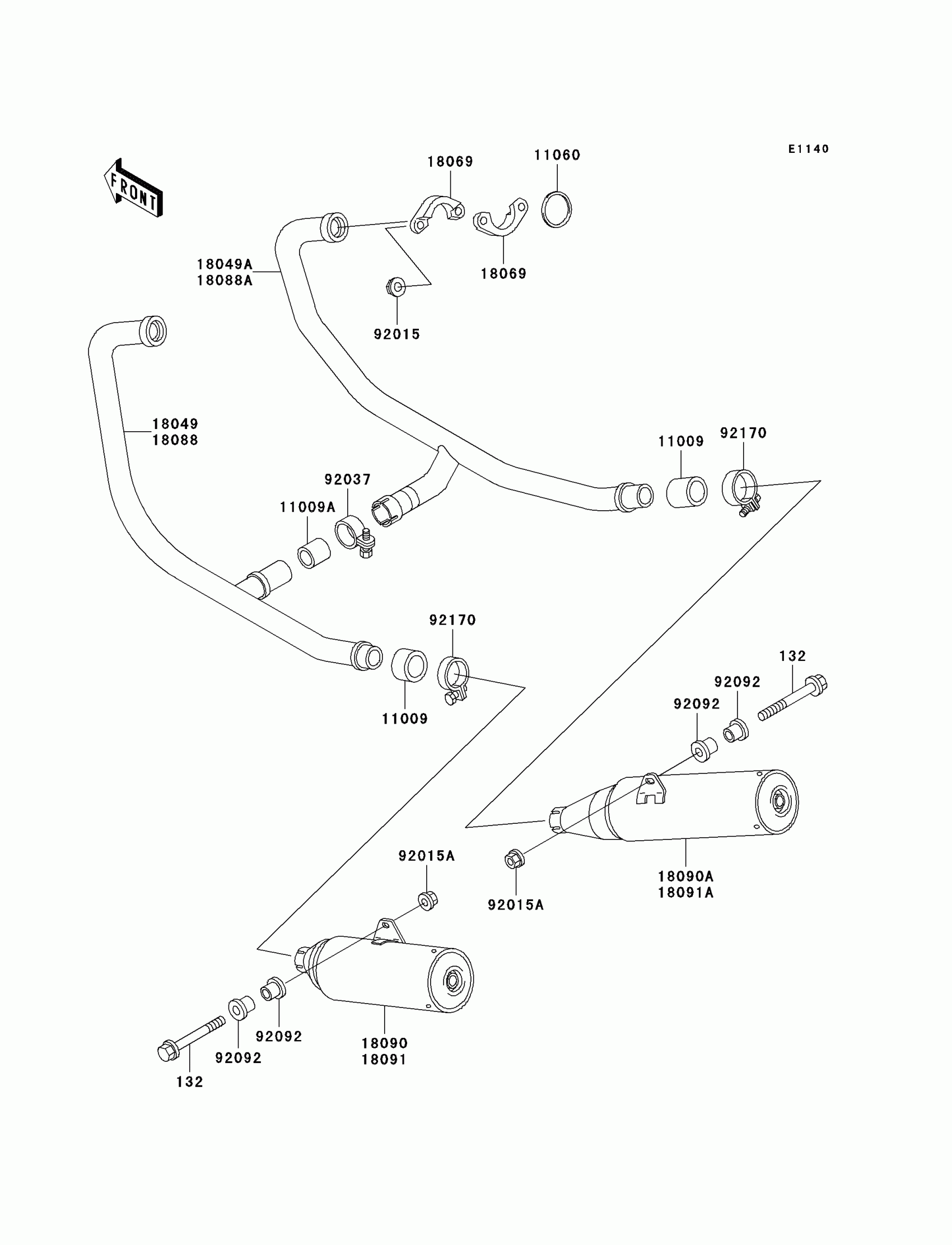

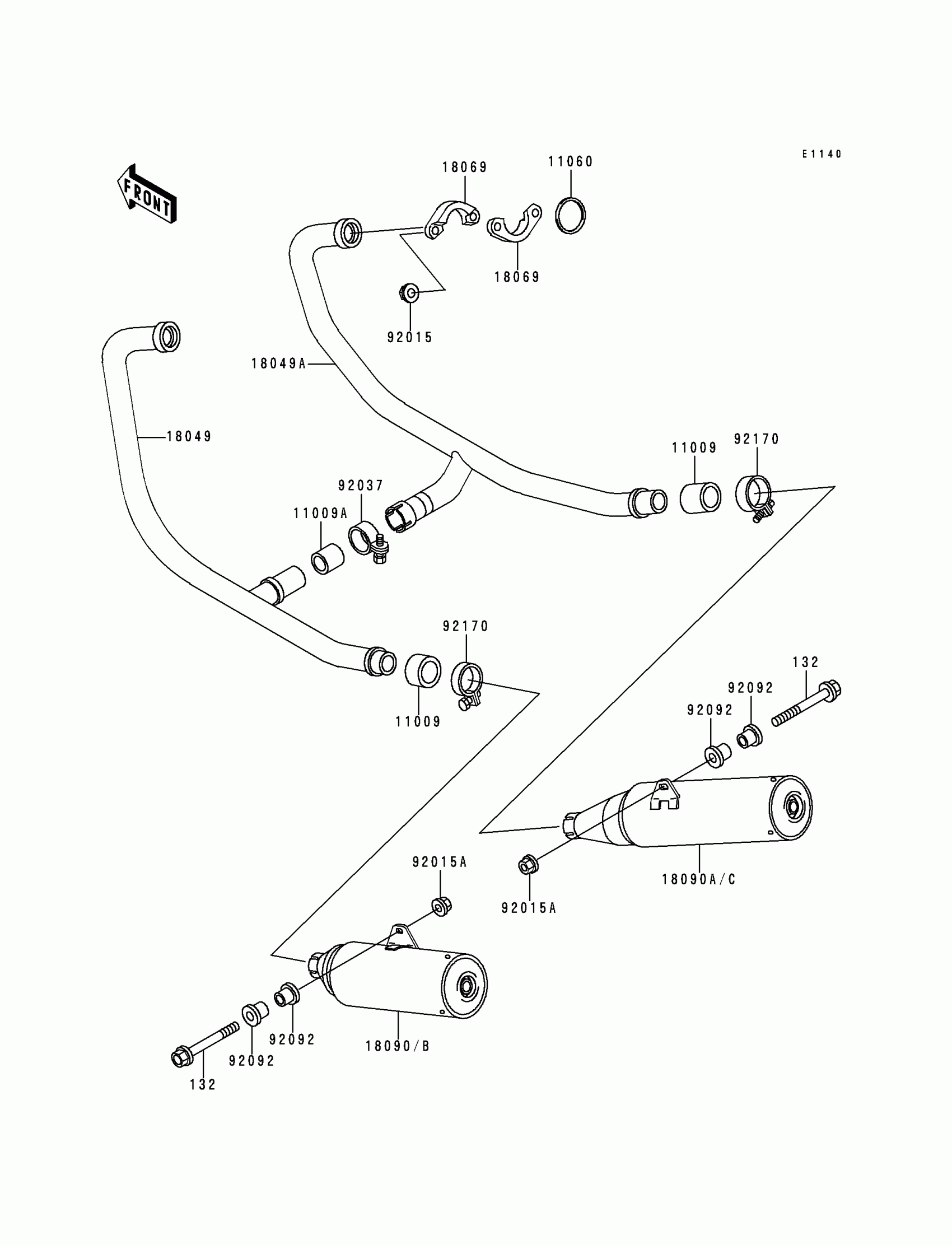

Kawasaki Ninja® 500R Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,10X65

132BB1065

$8.52

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11009A

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11060

GASKET,EXHAUST PIPE HOLDER

11060-1764

$8.17

18069

HOLDER-EXHAUST PIPE

18069-1122

Unavailable

18088

PIPE-EXHAUST,LH

18088-0285

$305.19

18088A

PIPE-EXHAUST,RH

18088-0286

$305.19

18091

BODY-COMP-MUFFLER,LH

18091-0415

$557.07

18091A

BODY-COMP-MUFFLER,RH

18091-0416

$557.07

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92037

CLAMP,39.5MM

92037-1792

Unavailable

92092

BUSHING,MUFFLER FITT

92092-010

$16.18

92170

CLAMP

92170-1469

Unavailable
