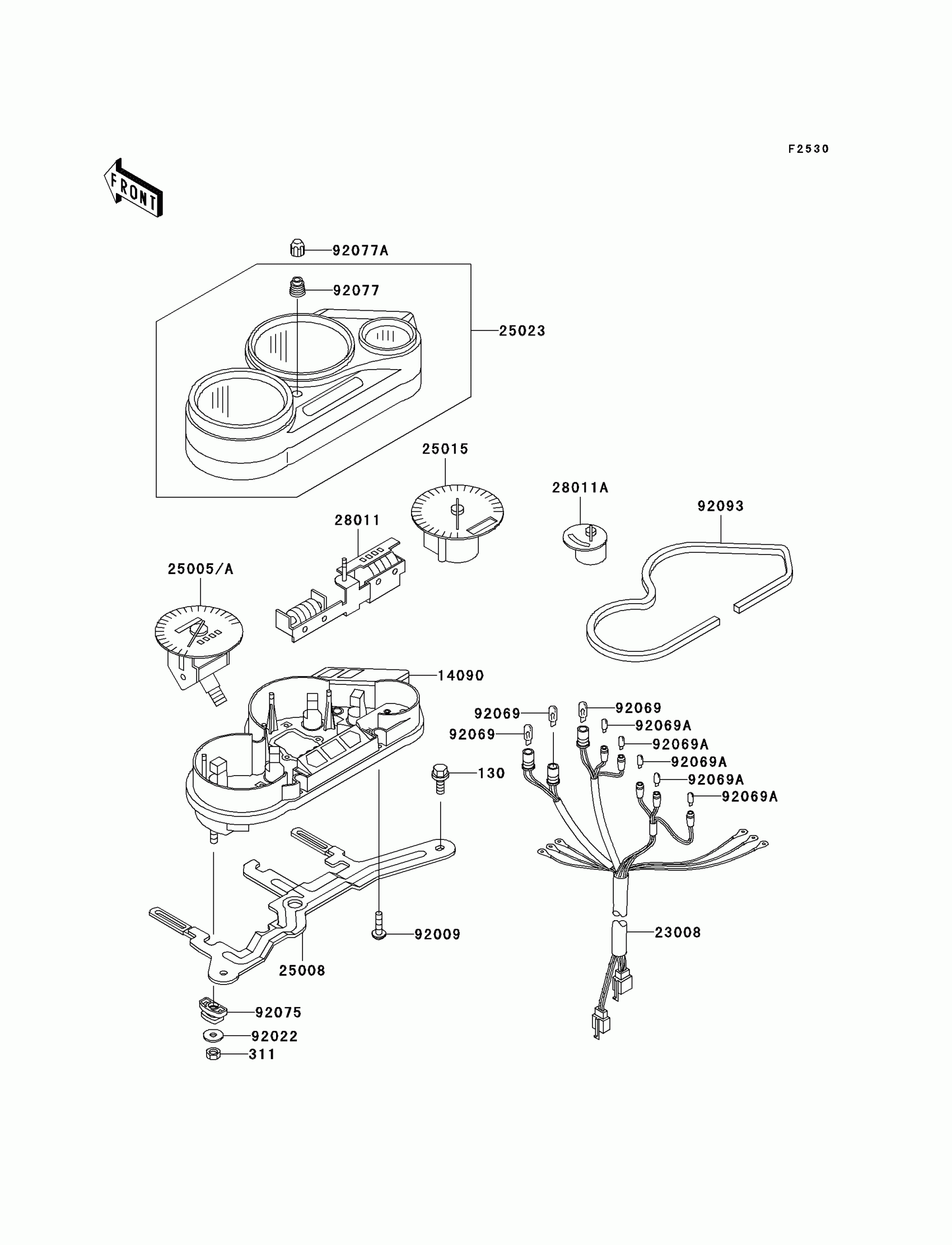

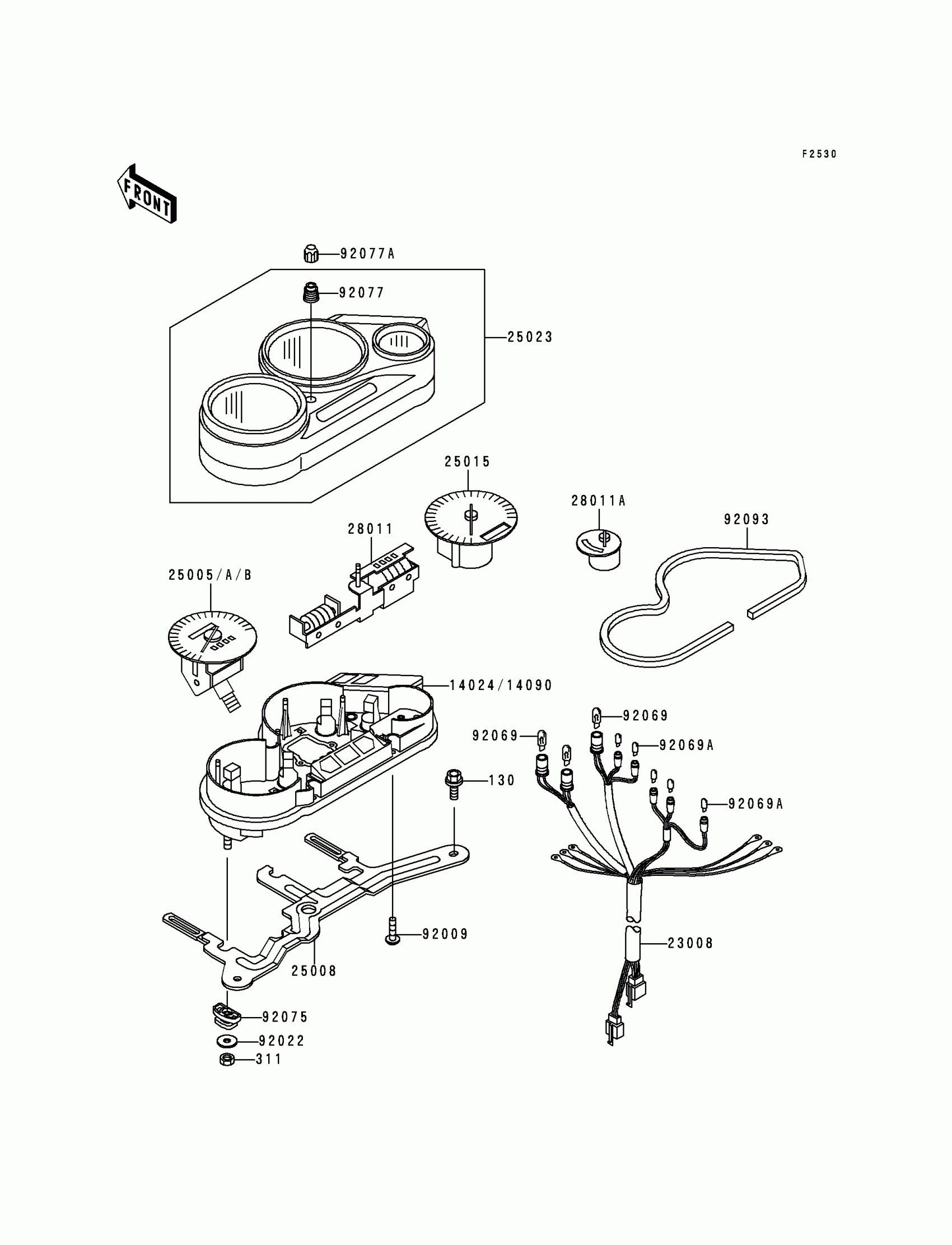

Kawasaki Ninja® 500R Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130C0612

$0.63

311

NUT-HEX

311B0500

$0.47

14090

COVER,METER HOUSING

14090-1869

$124.18

23008

SOCKET-ASSY,METER

23008-1431

$105.99

25008

BRACKET-METER

25008-1160

$70.61

25015

TACHOMETER,X1000R/MIN

25015-1327

$458.66

25023

COVER-METER CASE,UPP

25023-1167

$172.48

28011

METER,TRIP

28011-1118

$169.28

28011A

METER,TEMP

28011-1144

$125.54

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92069A

BULB,14V 3W,T6.5

92069-1068

$5.00

92075

DAMPER,METER BRACKET

92075-1495

$12.79

92077

KNOB,TRIP RESET

92077-1087

$9.49

92077A

KNOB,TRIP RESET

92077-1094

$9.05

92093

SEAL

92093-1373

$9.55

25005A

SPEEDOMETER,MPH

25005-1554

$360.15

25005B

SPEEDOMETER,KPH

25005-1555

Unavailable
