Description

Price

11045

BRACKET,FUEL TANK,FR

11045-1362

$42.53

14025

COVER,TANK CAP

14025-1913

$21.55

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

32052

BRACKET-TANK,FUEL,RR

32052-1394

$56.67

43028

DIAPHRAGM

43028-1033

$22.90

43049

PACKING

43049-1103

$5.74

51023

TAP-ASSY,FUEL

51023-1389

$132.20

51039

RING,TAP FLANGED

51039-003

$6.27

51049

CAP-TANK,FUEL

51049-0018

$115.45

51086

TANK-COMP-FUEL,M.D,BLACK

51086-5021-17K

$1,249.67

51086A

TANK-COMP-FUEL,C.P.BLUE

51086-5022-723

$1,249.67

92001

BOLT,6X20

92001-1091

$3.92

92027

COLLAR,L=19.3

92027-1780

$6.57

92037A

CLAMP

92037-1712

$5.00

92055

RING-O,TAP LEVER

92055-1085

$5.05

92055A

RING-O

92055-1664

$5.00

92075

DAMPER

92075-015

$5.00

92075A

DAMPER

92075-1045

$8.86

92075B

DAMPER,FUEL TANK,FR

92075-1115

$6.57

92075C

DAMPER

92075-1489

$8.94

92075D

DAMPER

92075-1736

$6.57

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

92200

WASHER,6.5X11.5X0.8

92200-0117

$2.61

120

BOLT-SOCKET,5X12

120CB0512

$1.76

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,8X30

130BA0830

$1.98

220

SCREW-PAN-CROS,3X8

220AA0308

$0.59

220A

SCREW-PAN-CROS,5X8

220AB0508

$0.56

221

SCREW-CSK-CROS,4X14

221AA0414

$3.67

702

TUBE-RUBBER,7X10X380

702A07380

$13.38

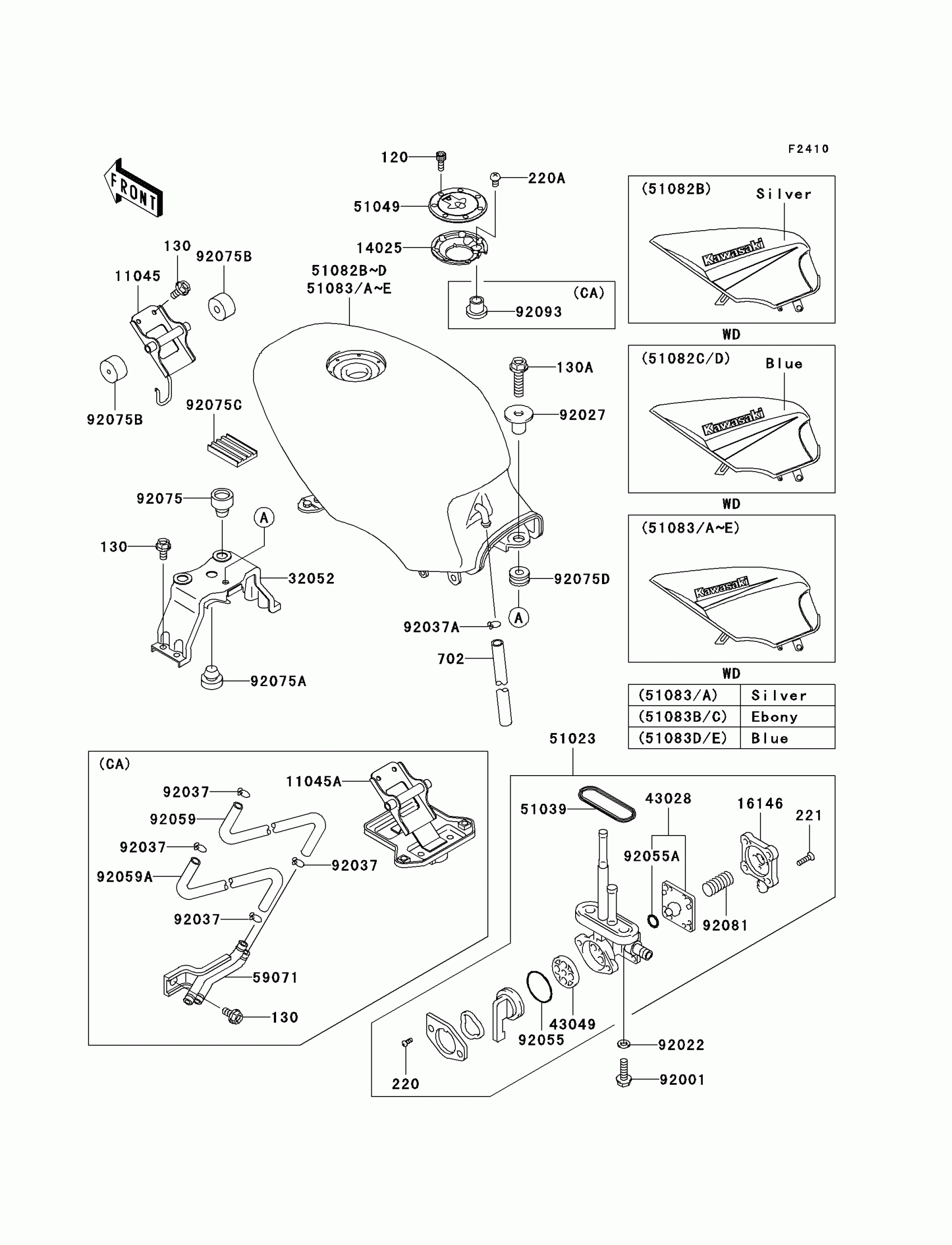

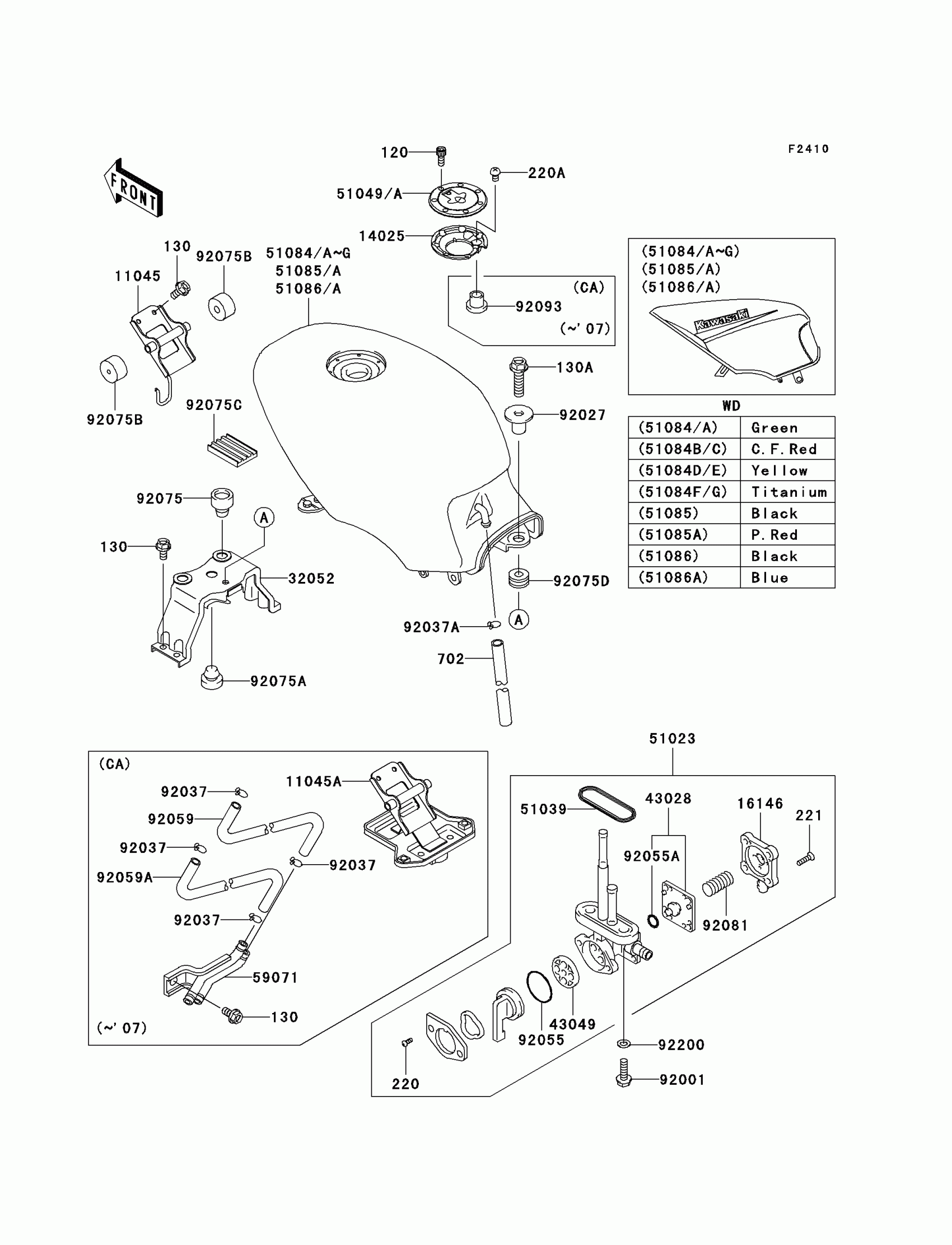

Kawasaki Ninja® 500R Fuel Tank(6/6) Diagram

BRACKET,FUEL TANK,FR

COVER,TANK CAP

COVER-ASSY,TAP DIAPHRAGM

BRACKET-TANK,FUEL,RR

DIAPHRAGM

PACKING

TAP-ASSY,FUEL

RING,TAP FLANGED

CAP-TANK,FUEL

TANK-COMP-FUEL,M.D,BLACK

TANK-COMP-FUEL,C.P.BLUE

BOLT,6X20

COLLAR,L=19.3

CLAMP

RING-O,TAP LEVER

RING-O

DAMPER

DAMPER

DAMPER,FUEL TANK,FR

DAMPER

DAMPER

SPRING,TAP DIAPHRAGM

WASHER,6.5X11.5X0.8

BOLT-SOCKET,5X12

BOLT-FLANGED,6X12

BOLT-FLANGED,8X30

SCREW-PAN-CROS,3X8

SCREW-PAN-CROS,5X8

SCREW-CSK-CROS,4X14

TUBE-RUBBER,7X10X380
