Description

Price

44005

PIPE-LEFT FORK OUTER

44005-1330

$448.71

44006

PIPE-RIGHT FORK OUTER

44006-1330

$448.71

44013

PIPE-FORK INNER

44013-1394

$325.95

44023

CYLINDER-COMP-FORK

44023-1092

$129.21

44026

SPRING-FRONT FORK

44026-1555

$74.26

44029

SEAT-FORK SPRING

44029-1127

$44.15

44037

HOLDER-FORK UNDER

44037-1319

$387.33

44039

HOLDER-FORK UPPER,BLACK

44039-1246-10

$281.51

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-1109

$23.01

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1110

$23.83

44070

DAMPER-ASSY,FORK

44070-5174

$1,082.31

92022

WASHER

92022-1879

$5.00

92022A

WASHER,30.5X50X0.6

92022-231

$4.69

92026

SPACER,FORK

92026-1443

$8.58

92033

RING-SNAP

92033-1236

$7.38

92033A

RING-SNAP

92033-1286

$8.03

92047

RACE,STEERING STEM BEARING

92047-012

$14.60

92049

SEAL-OIL,FORK OUTER

92049-1421

$21.12

92055

RING-O,FORK SPRING SEAT

92055-1384

$5.00

92056

SEAL-OIL,STEERING STEM

92056-003

$8.86

92093

SEAL,FORK OUTER

92093-1367

$21.57

92143

COLLAR,FORK,L=100

92143-1682

$9.57

92150

BOLT,SOCKET,8X18

92150-1432

$9.91

92150A

BOLT

92150-1610

$8.58

92150B

BOLT,SOCKET,8MM

92150-1613

$4.76

92153

BOLT,SOCKET,10X25

92153-0301

$3.26

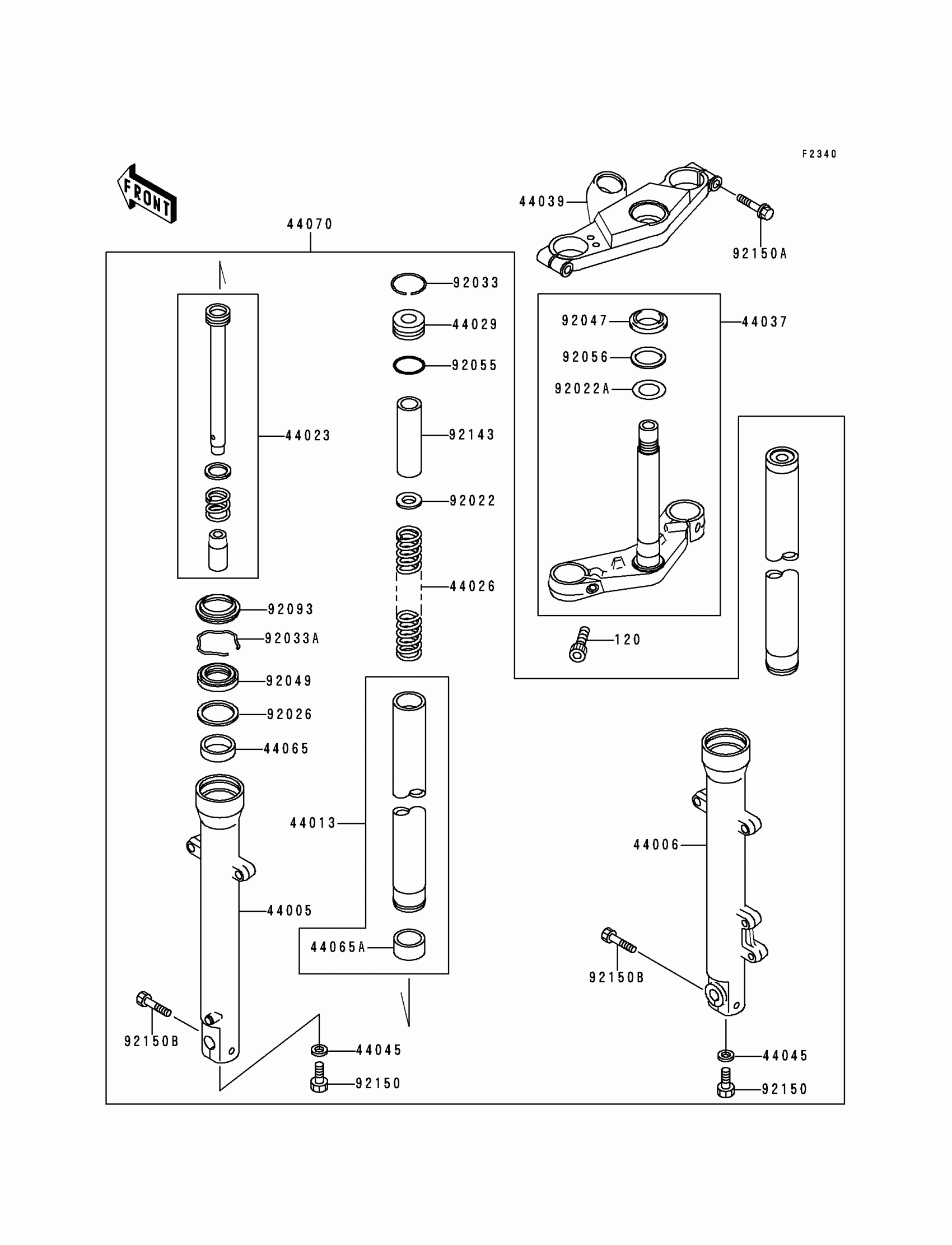

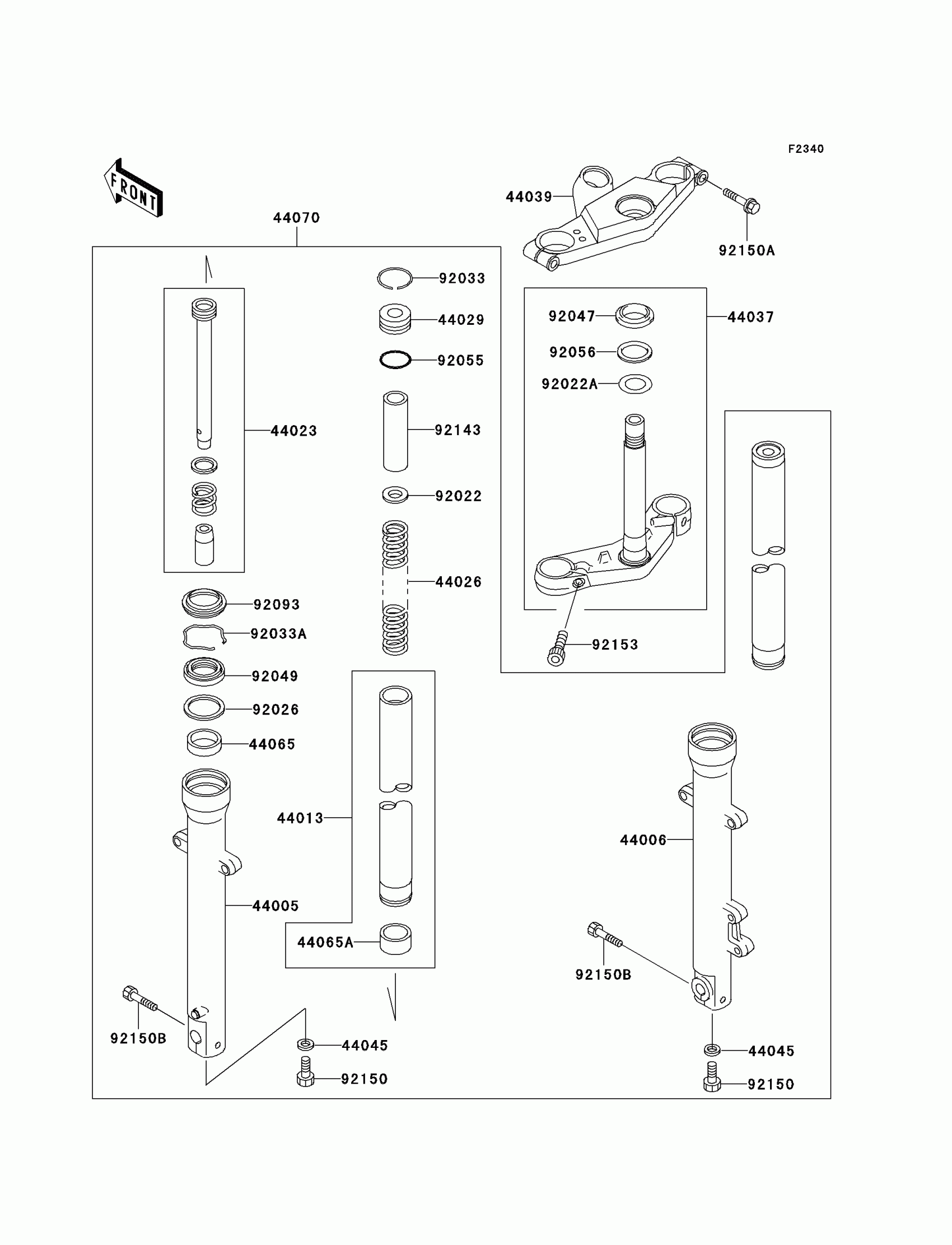

Kawasaki Ninja® 500R Front Fork Diagram

PIPE-LEFT FORK OUTER

PIPE-RIGHT FORK OUTER

PIPE-FORK INNER

CYLINDER-COMP-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER

HOLDER-FORK UPPER,BLACK

GASKET,FORK CYLINDER BOLT

BUSHING-FRONT FORK

BUSHING-FRONT FORK,INNER PIPE

DAMPER-ASSY,FORK

WASHER

WASHER,30.5X50X0.6

SPACER,FORK

RING-SNAP

RING-SNAP

RACE,STEERING STEM BEARING

SEAL-OIL,FORK OUTER

RING-O,FORK SPRING SEAT

SEAL-OIL,STEERING STEM

SEAL,FORK OUTER

COLLAR,FORK,L=100

BOLT,SOCKET,8X18

BOLT

BOLT,SOCKET,8MM

BOLT,SOCKET,10X25
