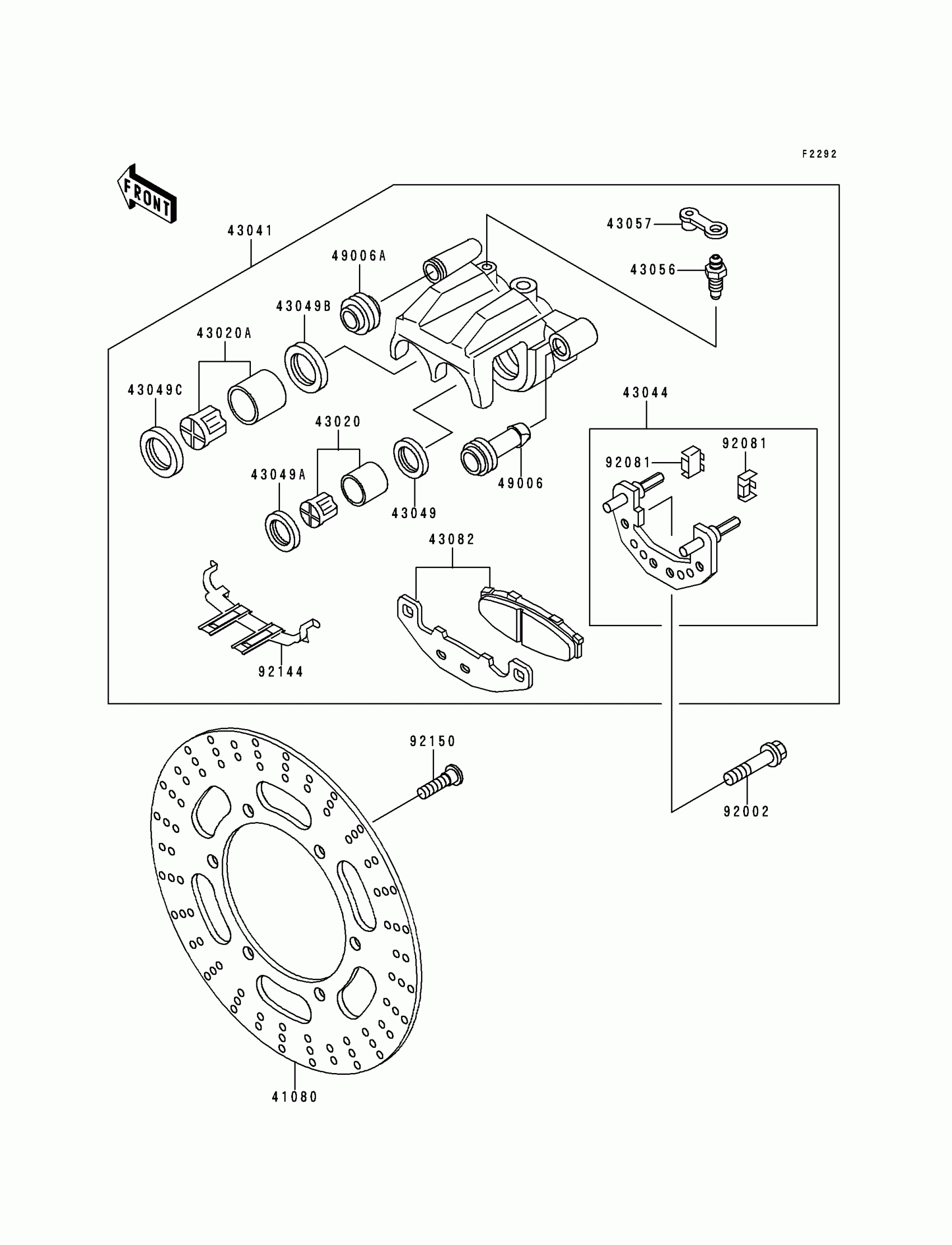

Kawasaki Ninja® 500R Front Brake Diagram

Description

Price

41080B

DISC,FR,BLACK

41080-0134-11H

$452.15

43020

PISTON-COMP-BRAKE

43020-1068

$72.80

43020A

PISTON-COMP-BRAKE

43020-1069

$72.80

43044

HOLDER-COMP-CALIPER

43044-1067

$158.69

43049

PACKING,PISTON

43049-1055

$11.29

43049A

PACKING,PISTON

43049-1057

$12.65

43049B

PACKING,PISTON SEAL

43049-1095

$13.10

43049C

PACKING,PISTON SEAL

43049-1096

$12.42

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5013-DJ

$428.21

43082

PAD-ASSY-BRAKE

43082-1161

$66.14

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,FLANGED,10X41

92002-1484

$8.19

92081

SPRING,PAD STOPPER

92081-1661

$11.80

92144

SPRING,PAD

92144-1070

$29.85

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
