Description

Price

130

BOLT-FLANGED,6X8

130BB0608

$6.07

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

130B

BOLT-FLANGED,6X16

130BB0616

$2.06

130C

BOLT-FLANGED,8X16

130BB0816

$1.71

224

SCREW-PAN-WP-CROS,5X8

224AB0508

$4.62

11012

CAP,BUNGEE CORD HOOK

11012-1589

$7.77

11012A

CAP

11012-1688

$18.42

11012C

CAP,CROSS PIPE,BLACK

11012-1717-18R

Unavailable

11045

BRACKET,IGNITION COIL,LH

11045-1419

$14.64

11045A

BRACKET,REGULATOR

11045-1421

$22.06

11045B

BRACKET,BATTERY BAND

11045-1423

$20.99

11045C

BRACKET,JUNCTION BOX

11045-1424

$9.89

11048

BRACKET,IGNITER

11048-1343

$18.92

11048A

BRACKET,IGNITION COIL,RH

11048-1665

$19.74

13169

PLATE,GRIP

13169-1760

$10.62

32085

STOPPER,HOOK

32085-1187

$11.91

32109

GRIP-FRAME,TAIL

32109-0007

$180.64

32109A

GRIP-FRAME

32109-1108

$85.99

53045

HOOK-ASSY,BUNGEE CORD

53045-1062

$32.13

92027

COLLAR

92027-1166

$6.22

92072

BAND

92072-1085

$18.15

92075

DAMPER RUBBER

92075-051

$3.92

92160

DAMPER,BATTERY

92160-1094

$5.59

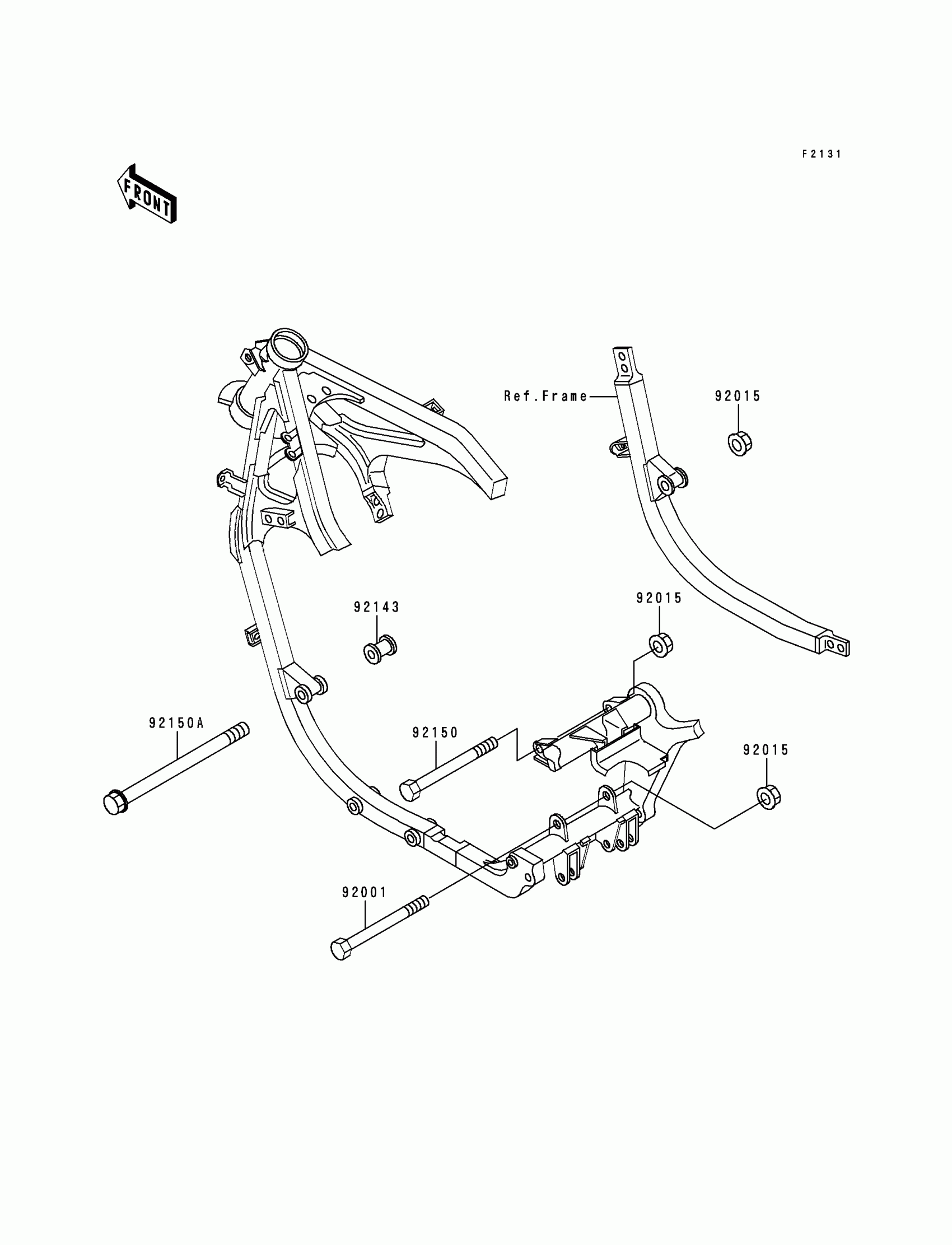

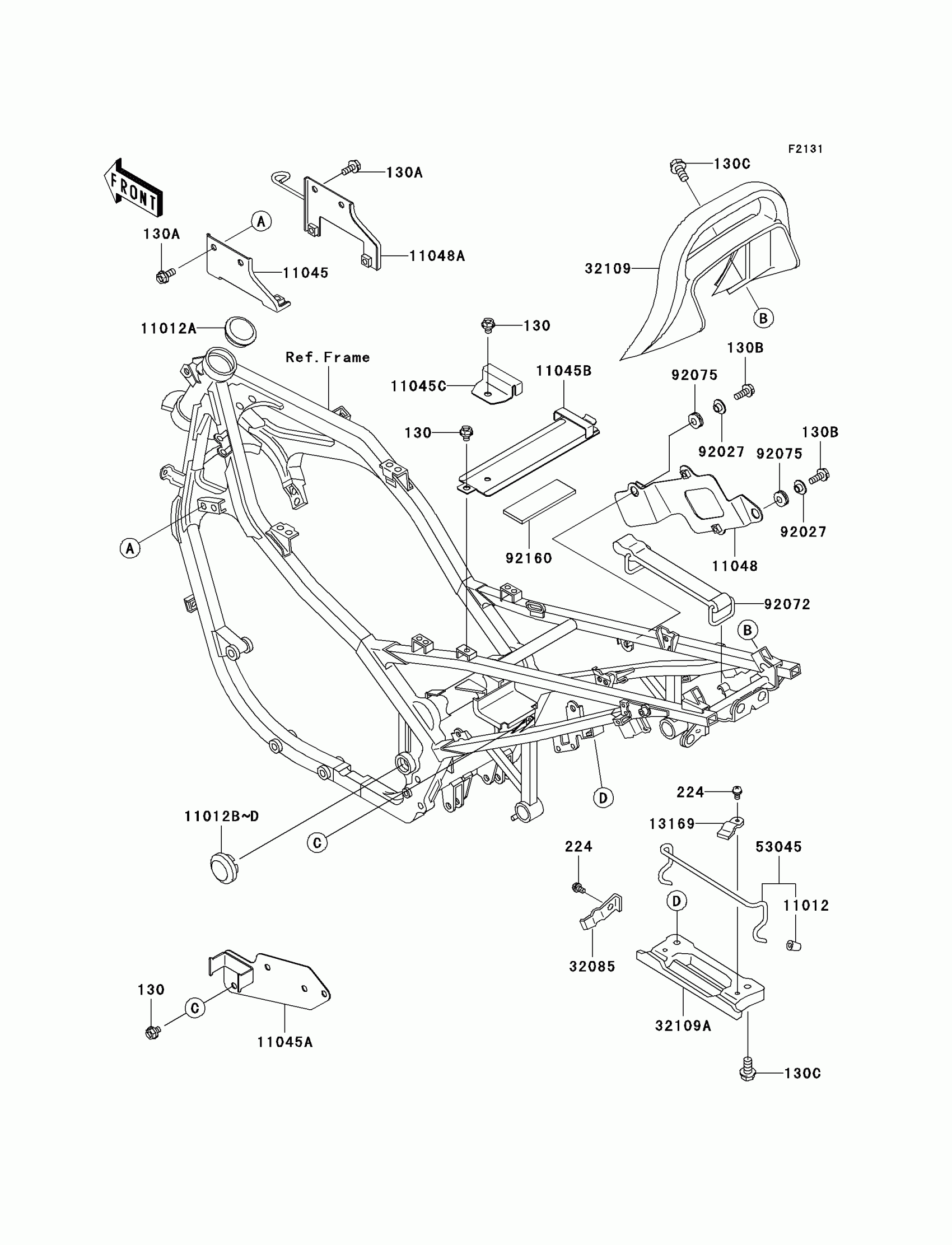

Kawasaki Ninja® 500R Frame Fittings Diagram
