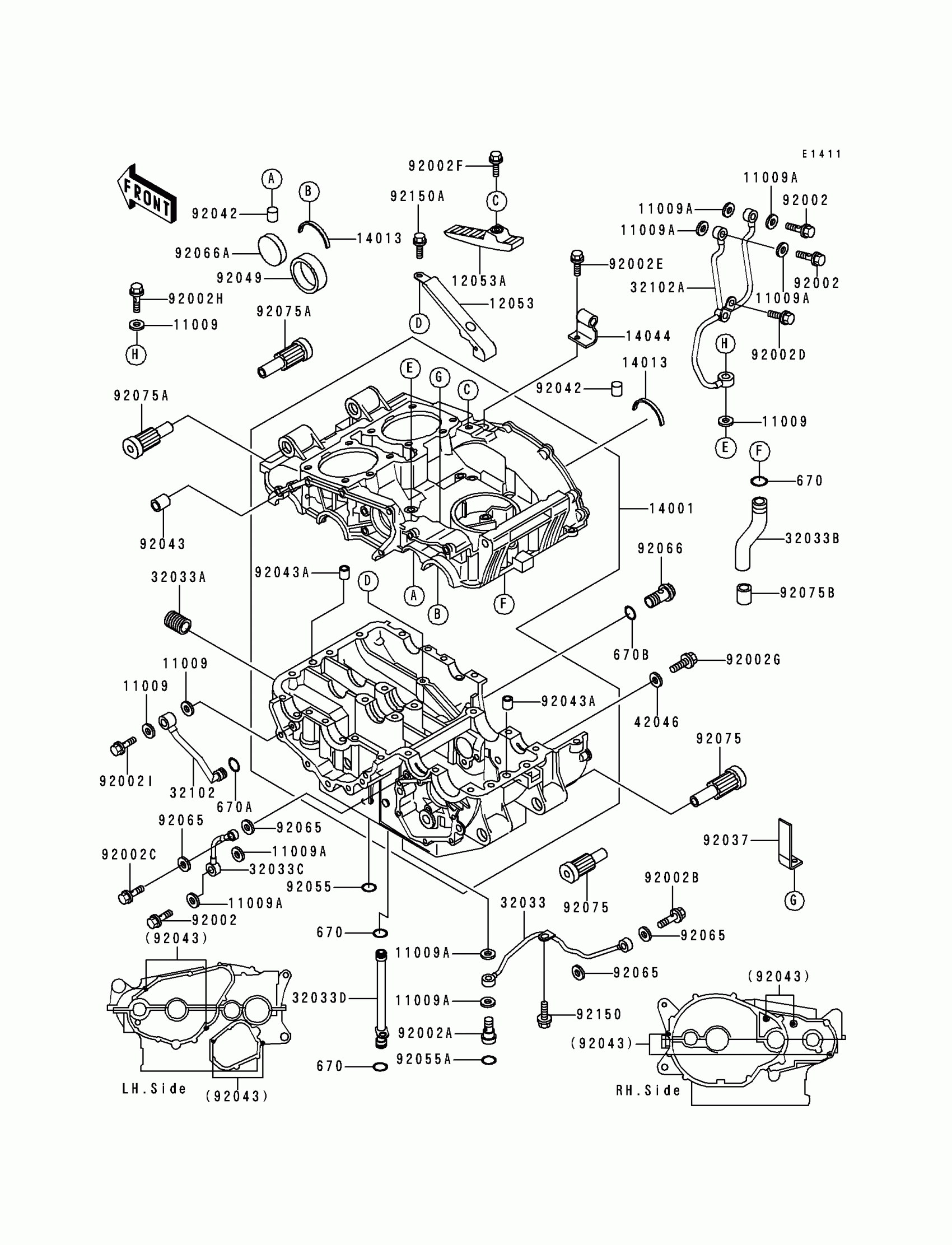

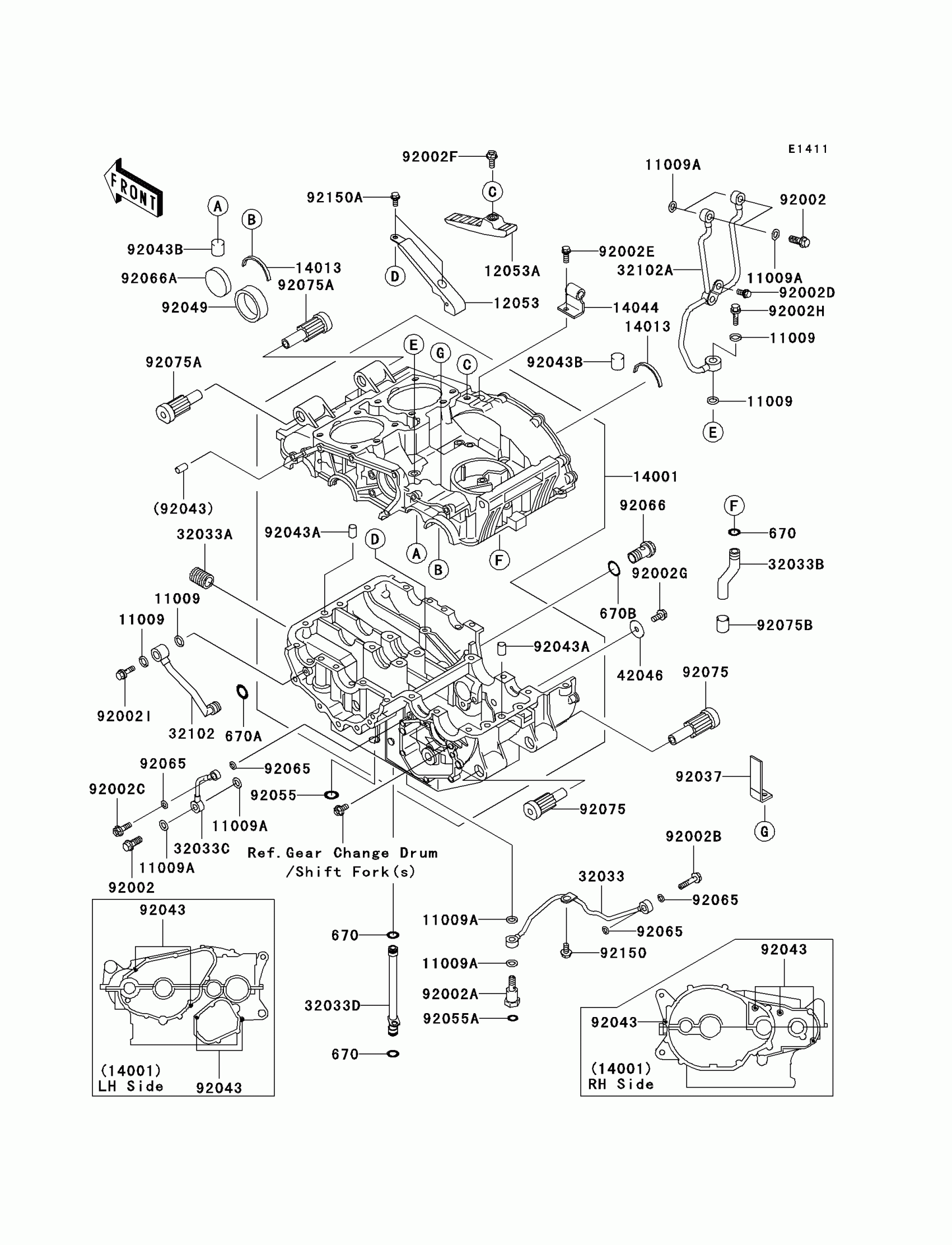

Kawasaki Ninja® 500R Crankcase Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,8.2X14X1.0

11009-1344

$3.17

12053

GUIDE-CHAIN,LWR

12053-1216

$49.54

12053A

GUIDE-CHAIN,UPP

12053-1217

$49.54

14001

SET-CRANKCASE

14001-1090

$1,585.41

14013

RING-POSITION

14013-004

$10.19

14044

HOLDER-CABLE

14044-1059

$9.89

32033

PIPE

32033-1530

$59.33

32033A

PIPE,OIL FILTER

32033-1535

$12.96

32033B

PIPE

32033-1538

$38.87

32033C

PIPE

32033-1539

$46.13

32033D

PIPE

32033-1574

$61.04

32102

PIPE

32102-1541

$43.64

32102A

PIPE

32102-1710

$121.17

42046

WASHER

42046-008

$4.38

92002

BOLT,8X20

92002-1429

$11.07

92002A

BOLT

92002-1467

$30.84

92002B

BOLT,BANJO,6X28

92002-1471

$19.74

92002C

BOLT,BANJO,6X19

92002-1473

$13.07

92002D

BOLT,6X12

92002-1569

Unavailable

92002E

BOLT,6X16

92002-1570

Unavailable

92002F

BOLT,6X16

92002-1571

$4.69

92002G

BOLT,6X14

92002-1656

$4.69

92002H

BOLT,OIL,L=23

92002-1809

$15.03

92002I

BOLT,BANJO,10X30

92002-1941

$10.62

92037

CLAMP

92037-1679

$5.52

92042

PIN,DOWEL,6X16

92042-016

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,8.2X10X14

92043-1264

$0.64

92049

SEAL-OIL,AE2343F0

92049-1070

$16.56

92055

RING-O,OD=18

92055-048

$4.80

92055A

RING-O,OD=13

92055-074

$8.58

92065

GASKET

92065-096

$4.65

92066

PLUG,MAIN GALLERY

92066-1205

$30.56

92066A

PLUG,RCA 345.5

92066-1208

$15.98

92075

DAMPER,L=79.5

92075-1678

$52.38

92075A

DAMPER,L=93

92075-1679

$52.38

92075B

DAMPER

92075-1742

$6.16

92150

BOLT,FLANGED,6X12

92150-1826

$3.65

92150A

BOLT,6X12

92150-1868

$3.32

670

O RING,9.8X1.9

670B1510

$4.31

670A

O RING,10MM

670B2010

$1.50

670B

O RING,21MM

670B2021

$4.69
