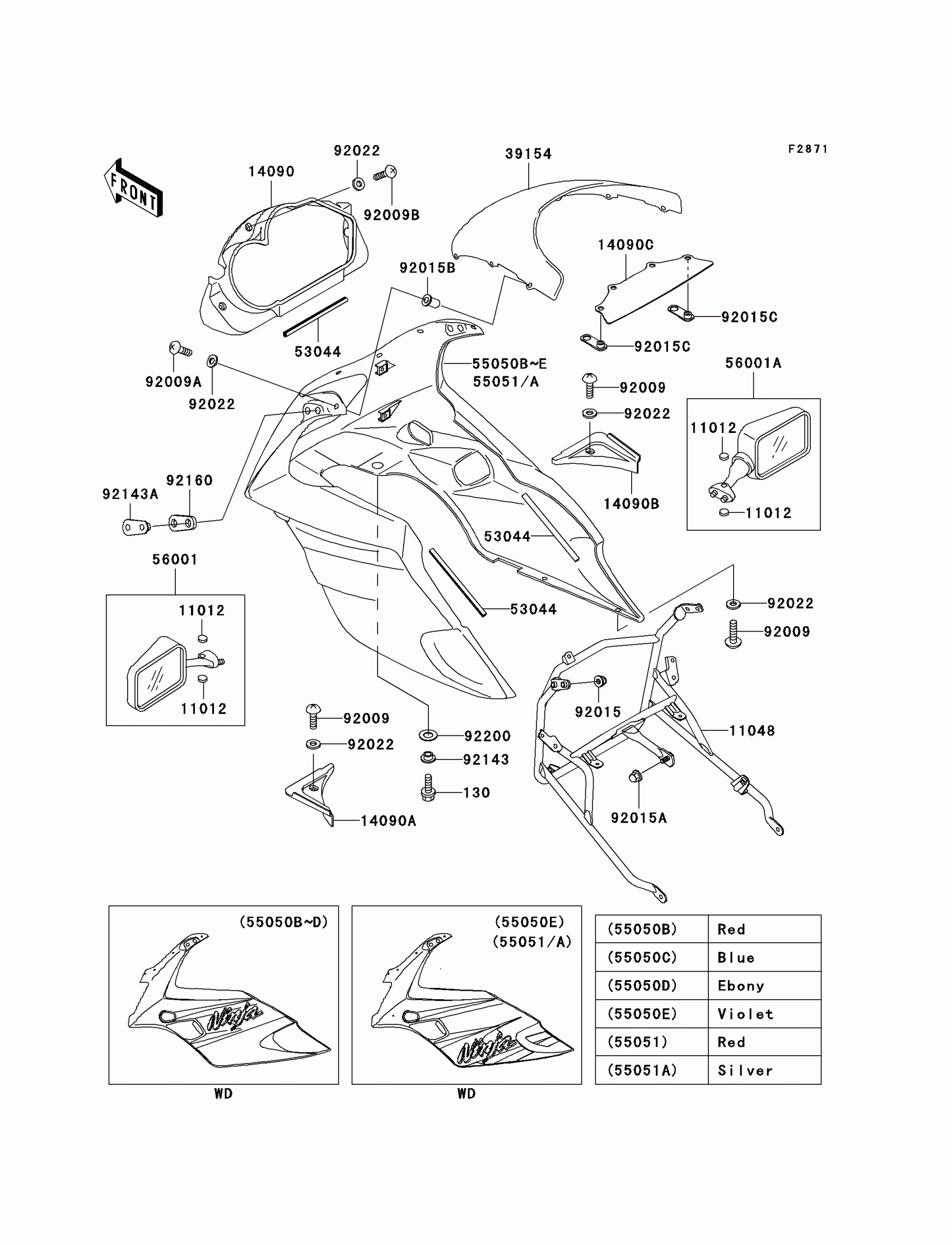

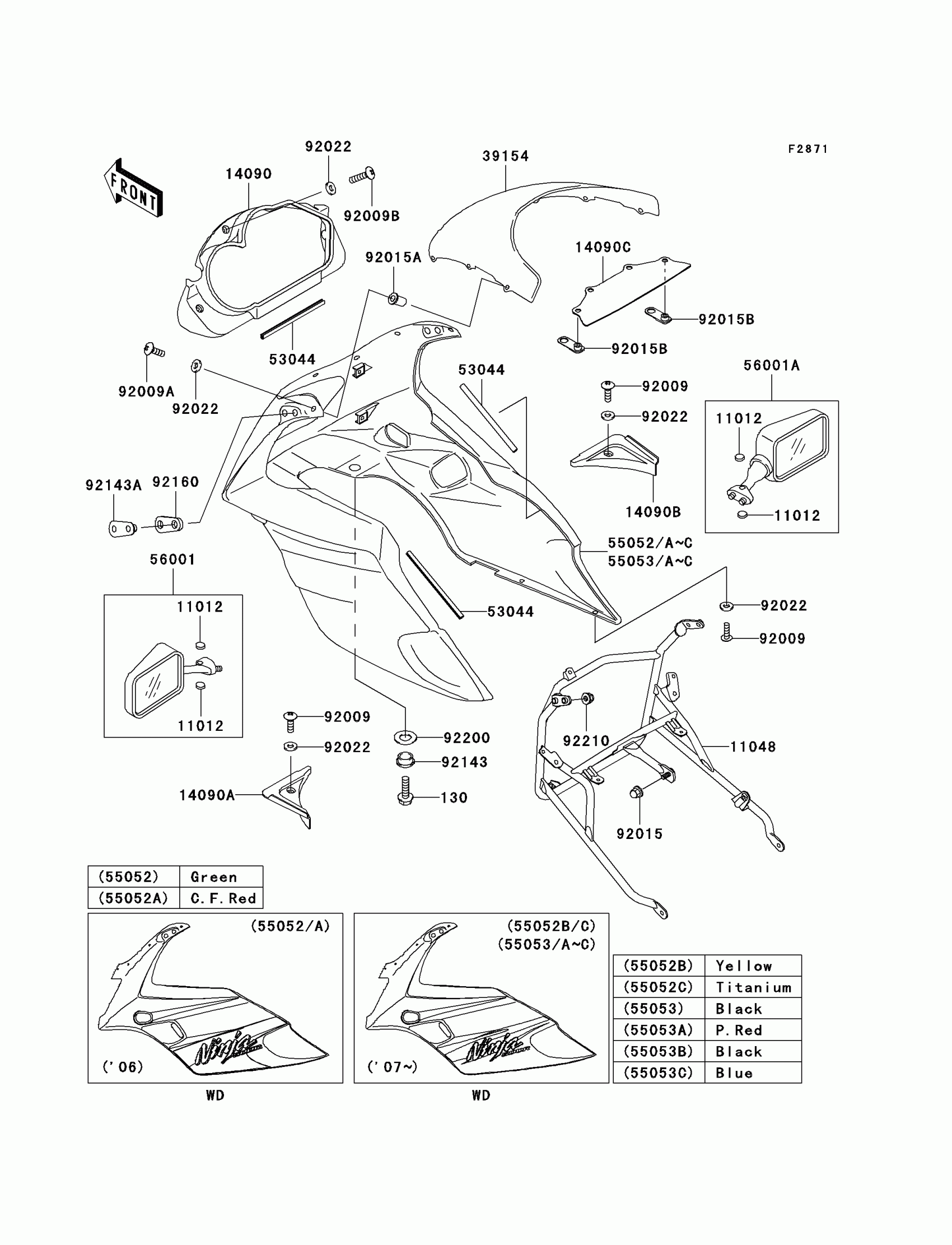

Kawasaki Ninja® 500R Cowling Diagram

#

Description
Price

11012

CAP,MIRROR

11012-1818

$3.43

11048

BRACKET,UPP COWLING

11048-1368

$245.57

14090

COVER,INNER COWLING,CNT

14090-1397

$129.40

14090A

COVER,INNER COWLING,LH

14090-1398

$68.49

14090B

COVER,INNER COWLING,RH

14090-1399

$68.49

14090C

COVER,WINDSHIELD

14090-1488

$23.80

39154

WINDSHIELD

39154-1125

$246.54

53044

TRIM,L=157

53044-1276

$8.86

55051

COWLING-ASSY,UPP,F.RED

55051-5104-B1

Unavailable

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

$83.79

56001A

MIRROR-ASSY,RH,EBONY

56001-1377-6C

$83.79

92009

SCREW,TAPPING,5X15

92009-1479

$4.38

92009A

SCREW,5X16,BLACK

92009-1654

$3.13

92009B

SCREW,5X22

92009-1660

$4.80

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,WELL,5MM

92015-1757

$7.29

92015C

NUT

92015-1949

$9.21

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92143

COLLAR,L=6.6

92143-1088

$5.33

130

BOLT-FLANGED

130J0620

$0.43

92143A

COLLAR

92143-1699

$4.40

92160

DAMPER,MIRROR

92160-1089

$7.29

92200

WASHER,10.3X20X1

92200-1013

$4.50

55051A

COWLING-ASSY,UPP,G.SILVER

55051-5206-F2

Unavailable

11045

BRACKET,LOWER COWLING,RR,LH

11045-1573

$15.87

11045A

BRACKET,LOWER COWLING,RR,RH

11045-1574

$15.87

11048

BRACKET,LOWER COWLING,FR,LH

11048-1685

$23.46

11048A

BRACKET,LOWER COWLING,FR,RH

11048-1686

$23.46

55028D

COWLING,LWR,P.C.GRAY

55028-1161-T2

Unavailable
