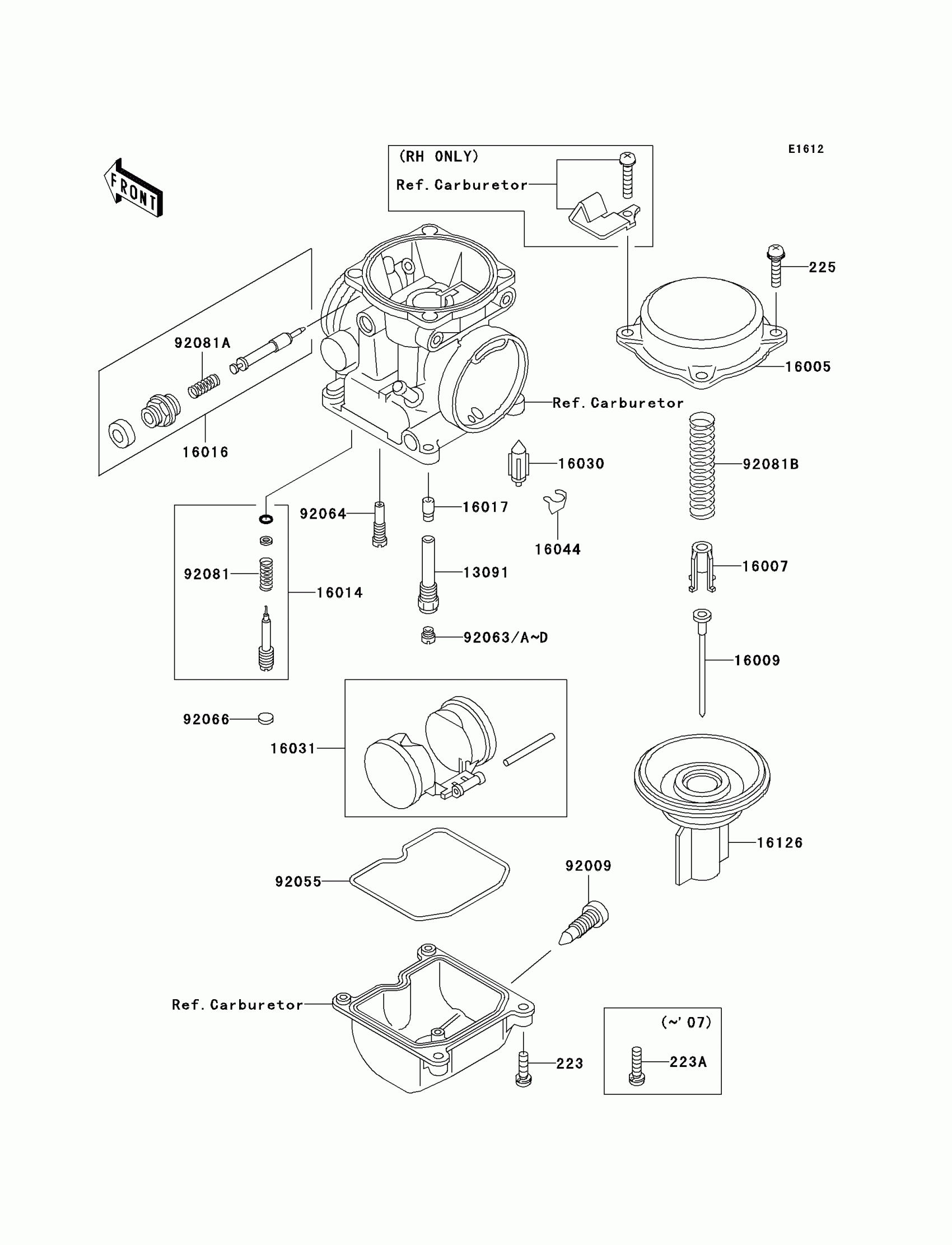

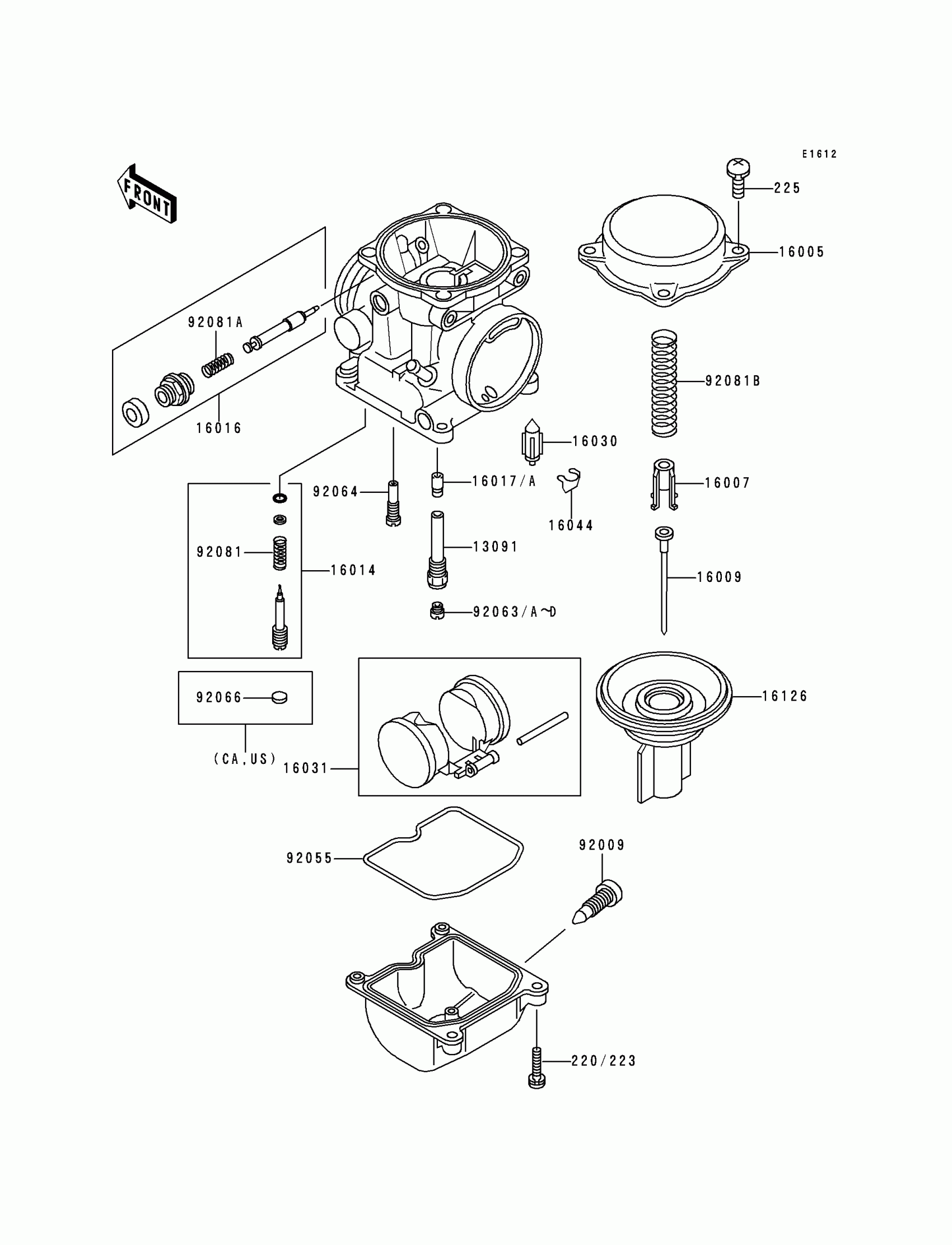

Kawasaki Ninja® 500R Carburetor Parts Diagram

#

Description
Price

223

SCREW-PAN-WS-CROS,4X14

223AA0414

$1.52

225

SCREW-PAN-WSP-CROS,4X18

225AB0418

$4.34

13091

HOLDER,NEEDLE JET

13091-1406

$33.38

16005

TOP-CHAMBER,MIXING,27/60

16005-1057

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N36N

16009-1342

$37.53

16014

SCREW-PILOT AIR

16014-1081

$24.57

16016

PLUNGER,STARTER

16016-1090

$66.52

16017

JET-NEEDLE

16017-1059

$49.12

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1173

$200.34

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#135

92063-1014

Unavailable

92063A

JET-MAIN,#125

92063-1069

Unavailable

92063B

JET-MAIN,#128

92063-1074

Unavailable

92063C

JET-MAIN,#130

92063-1075

$14.10

92063D

JET-MAIN,#132

92063-1076

Unavailable

92064

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081B

SPRING,VACUUM VALVE

92081-1874

$29.43
