2009 Kawasaki Ninja® 500R Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2009 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

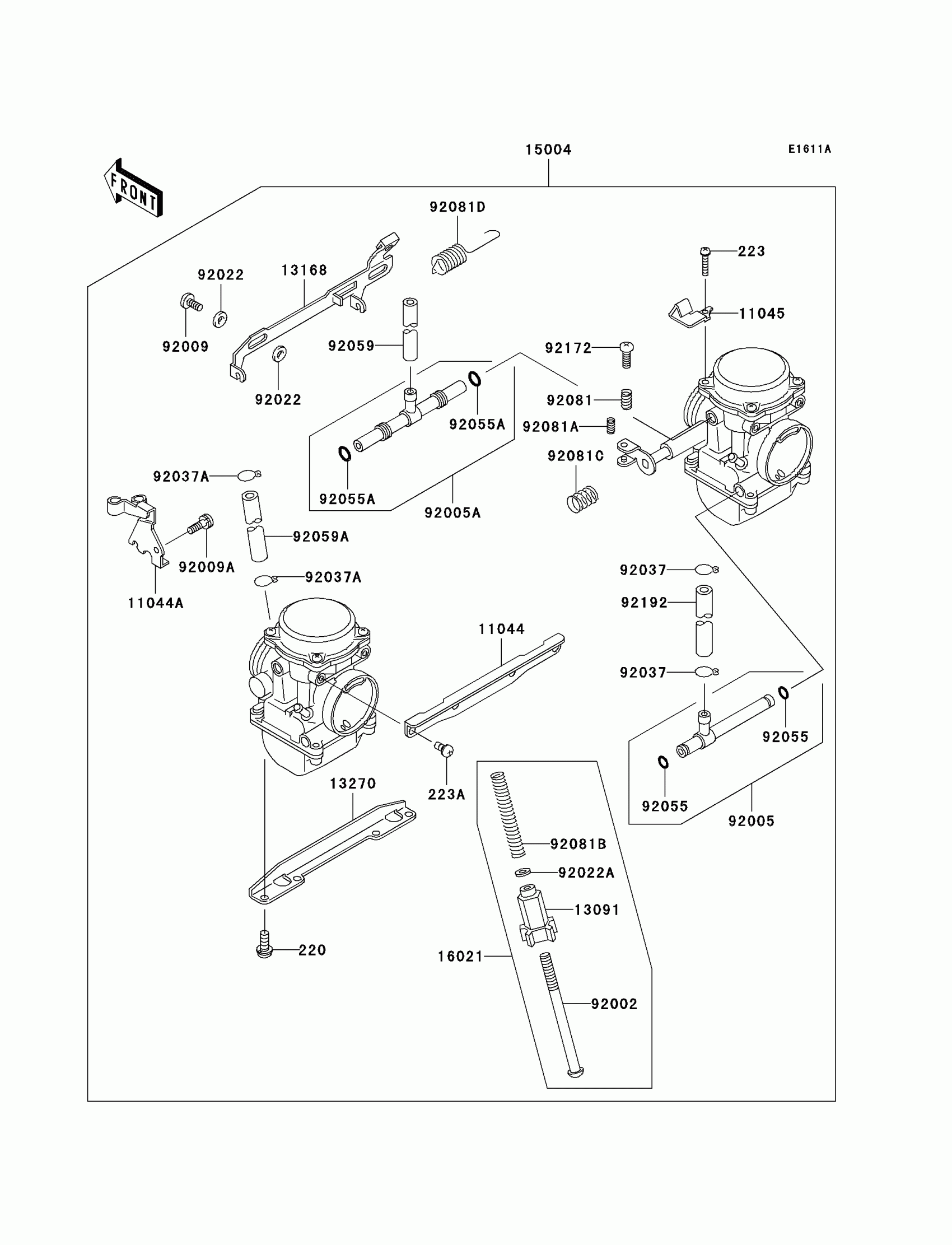

2009 Kawasaki Ninja® 500R Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$2.46

In stock

223

1

$4.10

In stock

223A

1

$3.28

In stock

11044

1

$68.87

In stock

11044A

1

$70.10

In stock

11045

BRACKET,STARTER LEVER

11045-1824

1
Out of stock

13091

1

$16.31

In stock

13168

LEVER

13168-1360

1

$76.50

In stock

13270

PLATE,LWR,STAY

13270-1062

1
Out of stock

15004

CARBURETOR-ASSY

15004-0044

1

$1,509.92

In stock

16021

SCREW-THROTTLE STOP

16021-1165

1

$9.69

In stock

92002

BOLT,THROTTLE STOP SCREW

92002-1552

1
Out of stock

92005

FITTING

92005-1325

1
Out of stock

92005A

FITTING

92005-1326

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92059

TUBE,6.5X9.5X500

92059-1465

1

$34.01

In stock

92059A

TUBE,5X9X140

92059-1634

1

$18.19

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

SPRING,THROTTLE STOP SCREW

92081-1875

1
Out of stock

92081C

SPRING

92081-1876

1

$10.93

In stock

92081D

1

$22.88

In stock

92172

SCREW

92172-0129

1

$4.92

In stock

92192

TUBE

92192-0525

1
Out of stock
