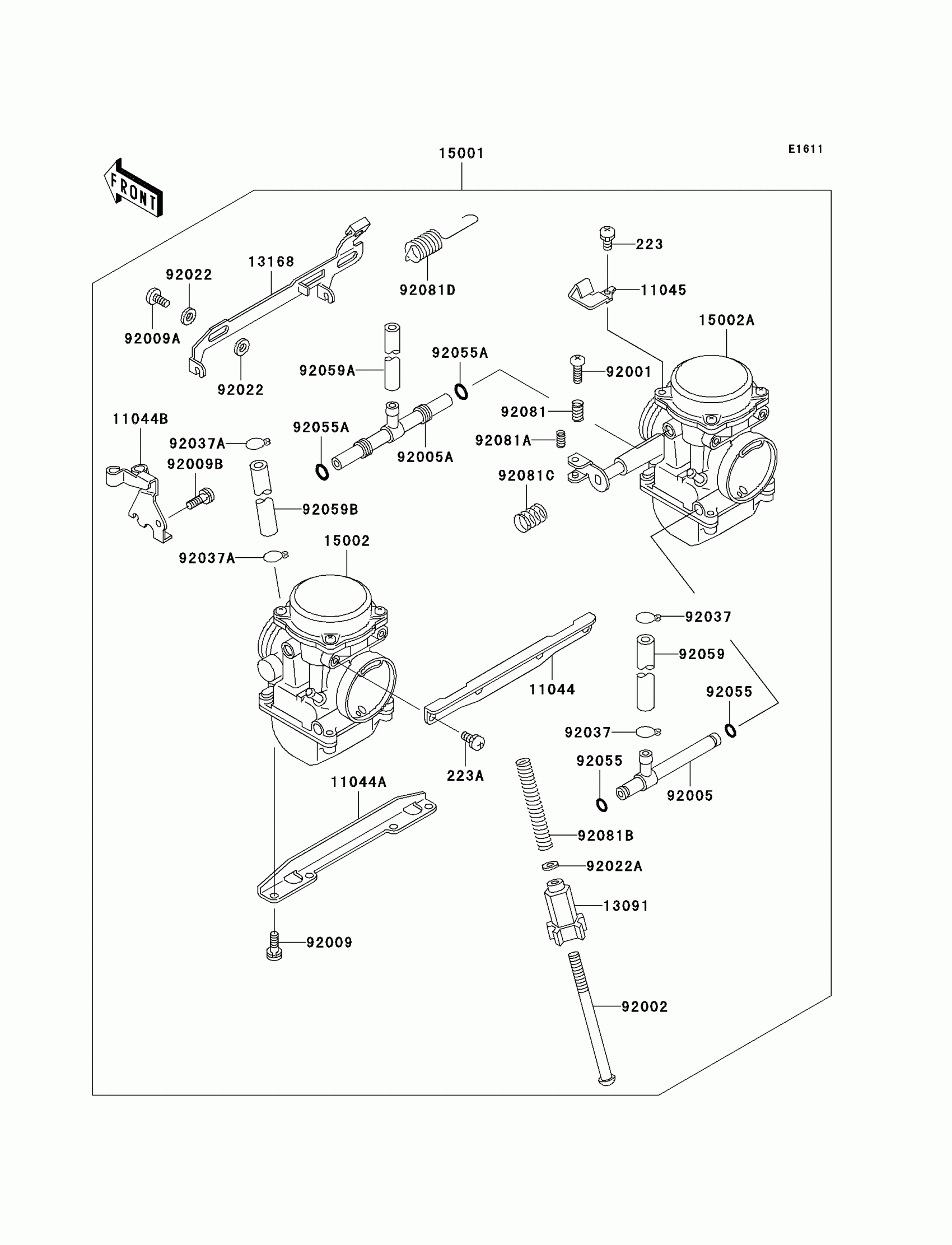

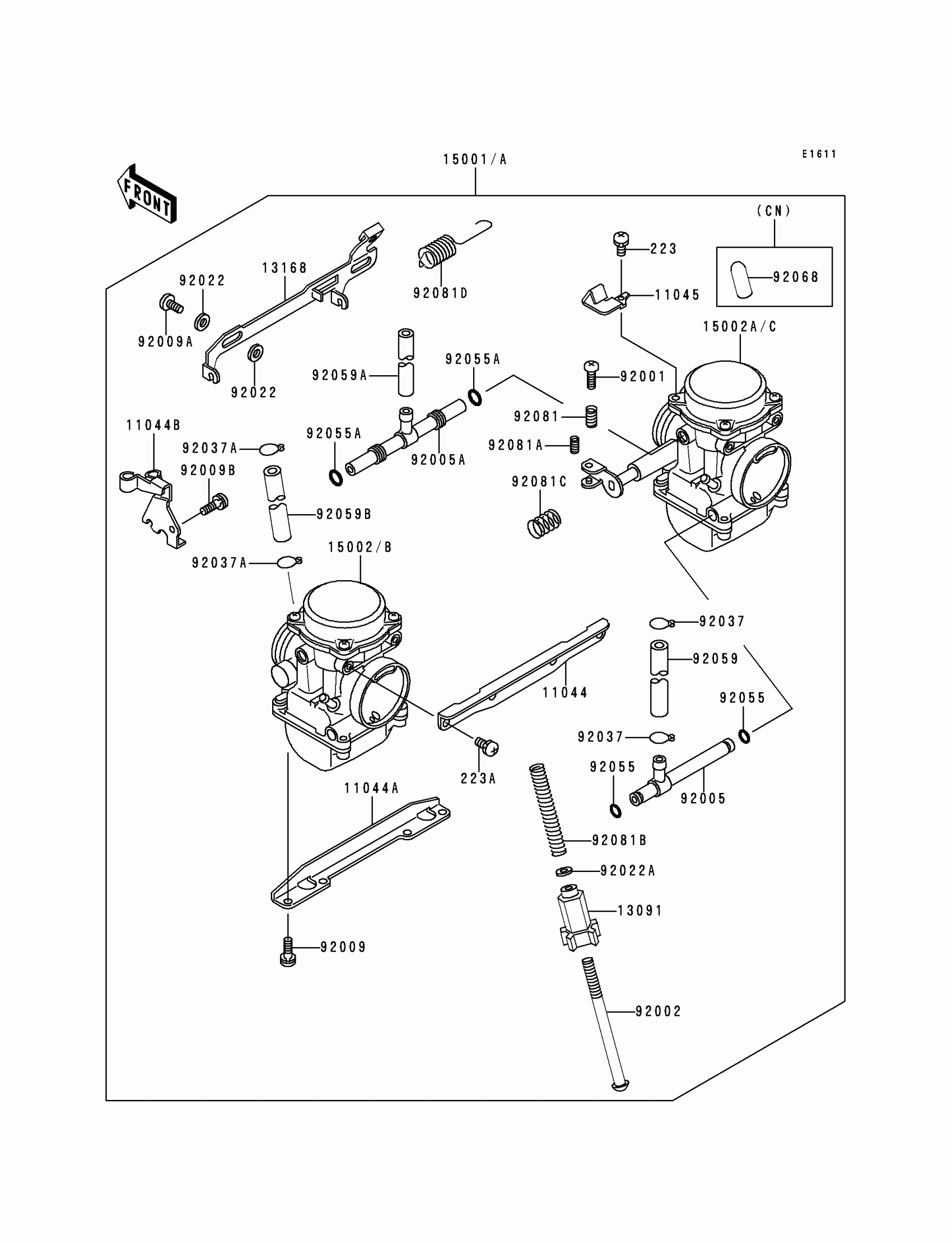

Kawasaki Ninja® 500R Carburetor Diagram

#

Description
Price

11044

BRACKET,CARBURETOR STAY,UPP

11044-1313

$67.59

11044A

BRACKET,CARBURETOR STAY,6MM

11044-1314

$67.57

11044B

BRACKET,THROTTLE CABLE

11044-1546

$68.79

11045

BRACKET,STARTER LEVER

11045-1824

$73.47

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$17.39

13168

LEVER

13168-1360

$82.02

15001

CARBURETOR-ASSY

15001-1334

$1,253.17

15002

CARBURETOR,LH

15002-1492

Unavailable

15002A

CARBURETOR,RH

15002-1493

$684.03

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92002

BOLT,THROTTLE STOP SCREW

92002-1552

$16.69

92005

FITTING

92005-1133

$53.04

92005A

FITTING

92005-1134

$61.04

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FUEL TUBE

92037-1075

$3.96

92037A

CLAMP,TUBE

92037-1477

$4.31

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,FUEL,7.3X12.5X220

92059-1236

$37.85

92059A

TUBE,6.5X9.5X500

92059-1465

$33.38

92059B

TUBE,5X9X140

92059-1634

$19.48

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE STOP SCREW

92081-1875

$8.96

92081C

SPRING

92081-1876

$11.40

92081D

SPRING,STARTER LEVER

92081-1893

$24.32

223

SCREW-PAN-WS-CROS,4X20

223C0420

$4.30

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12
