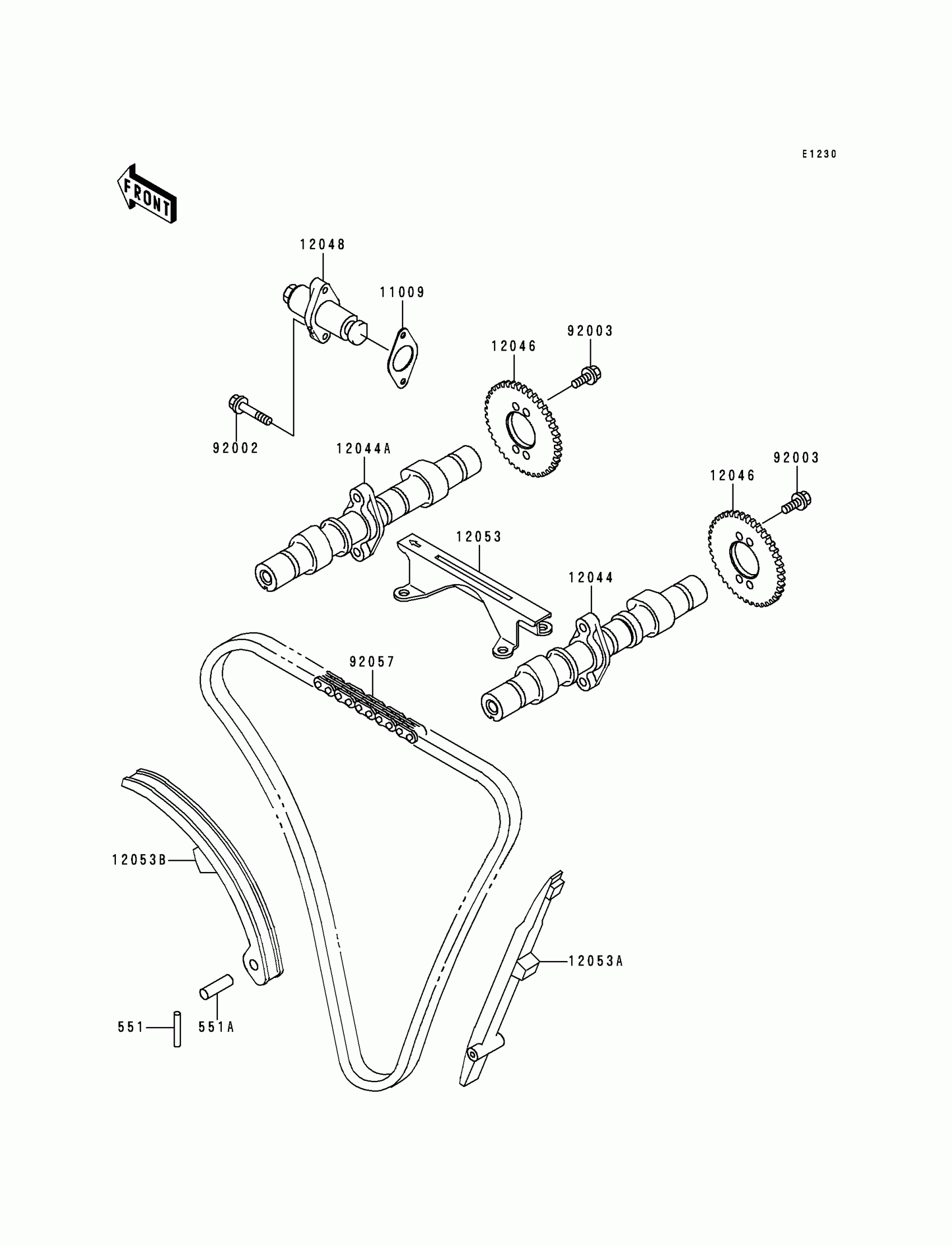

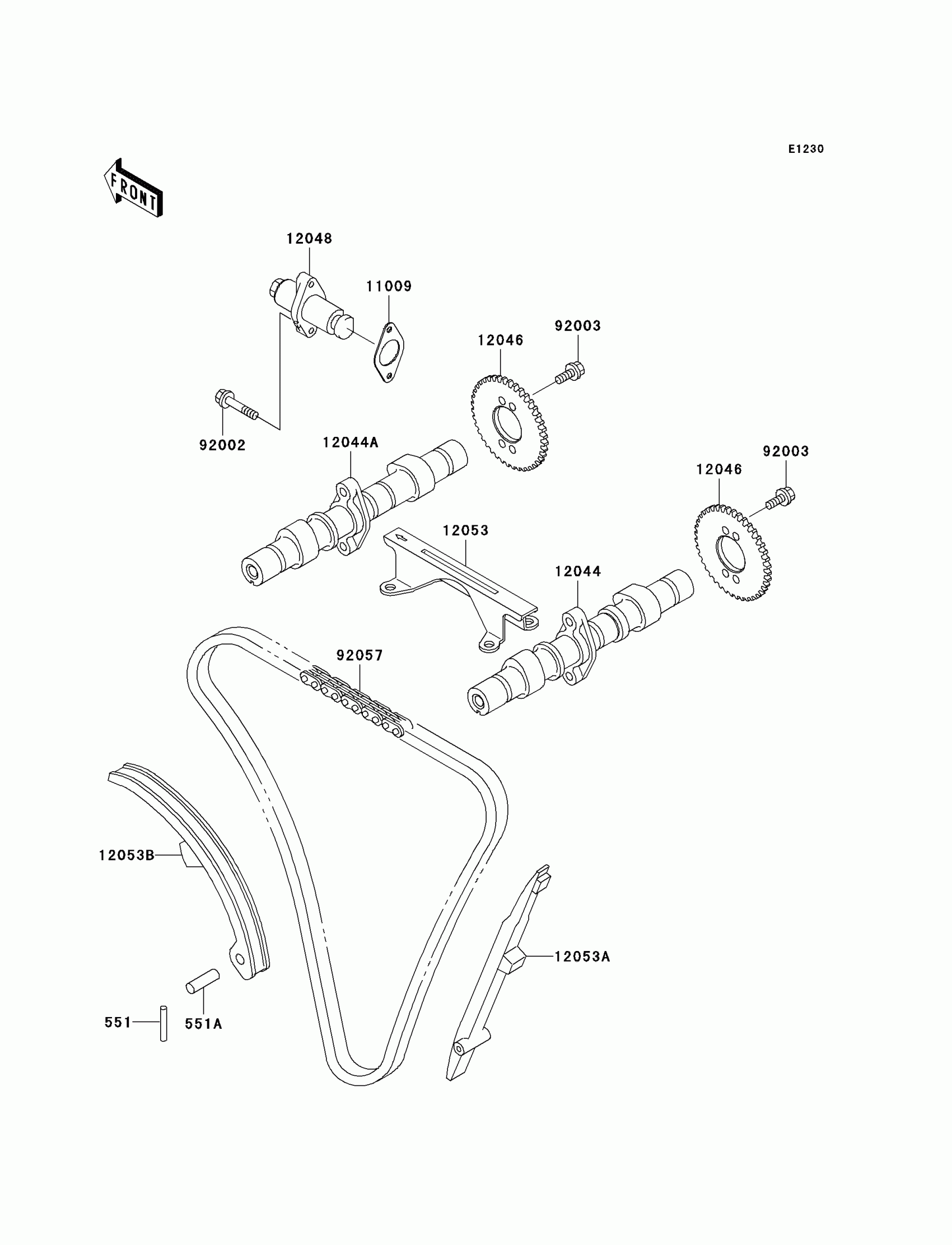

Kawasaki Ninja® 500R Camshaft(s)/Tensioner Diagram

Description

Price

551

PIN-DOWEL

551A0432

$4.69

551A

PIN-DOWEL,8X40

551A0840

$5.24

11009

GASKET,TENSIONER

11009-1858

$4.61

12044

CAMSHAFT-VALVE,INTAKE

12044-1198

$464.63

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1199

$464.63

12046

SPROCKET,CAMSHAFT,46T

12046-1075

$76.41

12048

TENSIONER-ASSY,CAM CHAIN

12048-1141

$127.47

12053

GUIDE-CHAIN,UPP

12053-1145

$51.90

12053A

GUIDE-CHAIN,RR

12053-1150

$83.10

12053B

GUIDE-CHAIN,FR

12053-1151

$68.16

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92057

CHAIN,CAM,79RH2015-148L

92057-1188

$125.91
