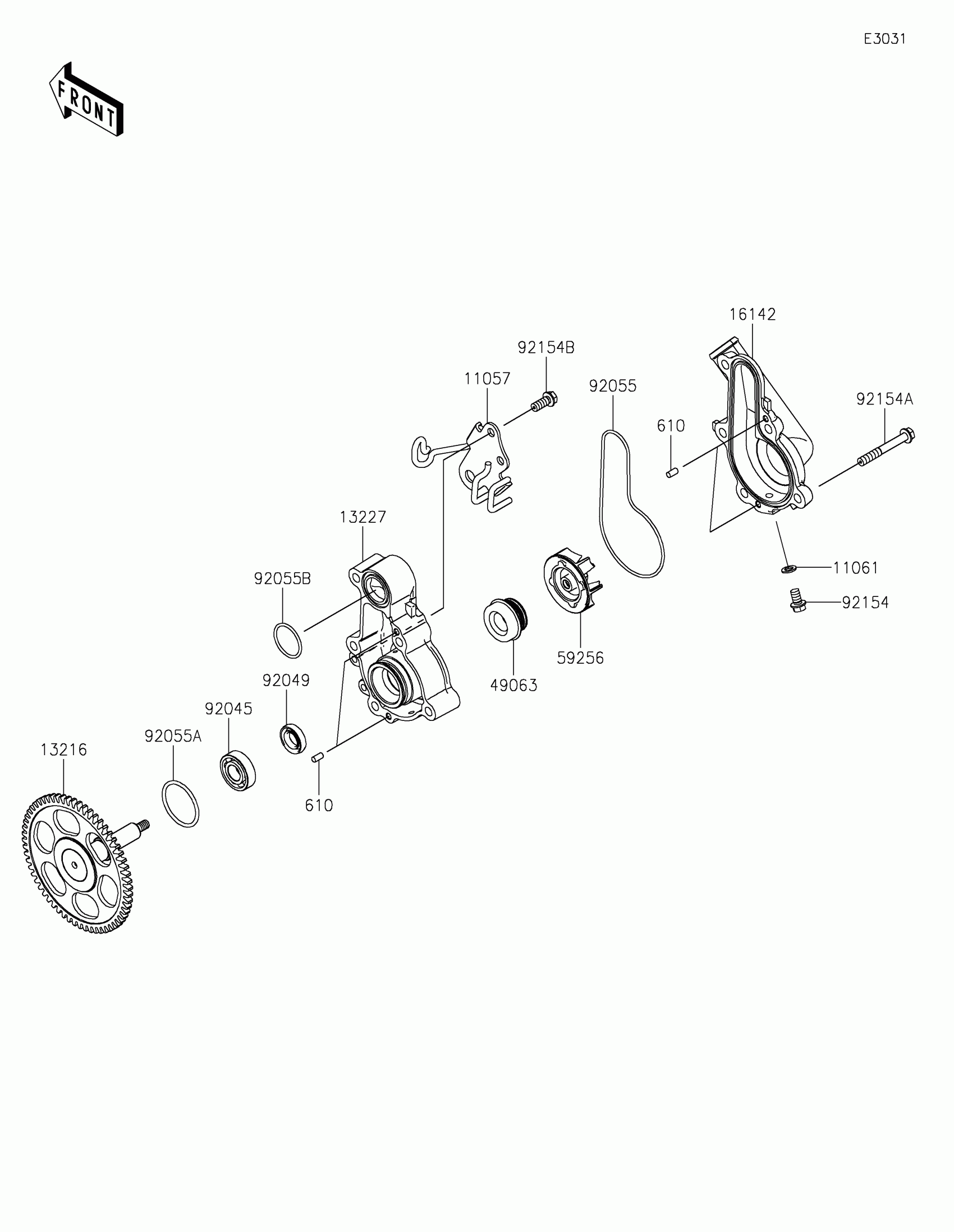

Kawasaki NINJA® 500 Water Pump Diagram

Description

Price

11057

BRACKET

11057-7599

$11.02

11061

GASKET,DRAIN

11061-0875

$5.60

13216

GEAR-COMP,WATER PUMP,60T

13216-0920

$234.71

13227

HOUSING

13227-0040

$77.55

16142

COVER-PUMP,WATER

16142-0757

$72.89

49063

SEAL-MECHANICAL

49063-1055

$20.06

59256

IMPELLER

59256-0554

$23.79

92045

BEARING-BALL

92045-0067

Unavailable

92049

SEAL-OIL,12X22X5

92049-0783

$7.75

92055

RING-O

92055-0889

$13.69

92055A

RING-O,31.20X2.4

92055-0896

$1.71

92055B

RING-O,23.3X1.9

92055-1555

$2.78

92154

BOLT,FLANGED,6X10

92154-2344

$0.90

92154A

BOLT,FLANGED,6X45

92154-2789

$1.69

92154B

BOLT,FLANGED,6X14

92154-2838

$0.90

610

ROLLER,4X8

610A0408

$4.31
