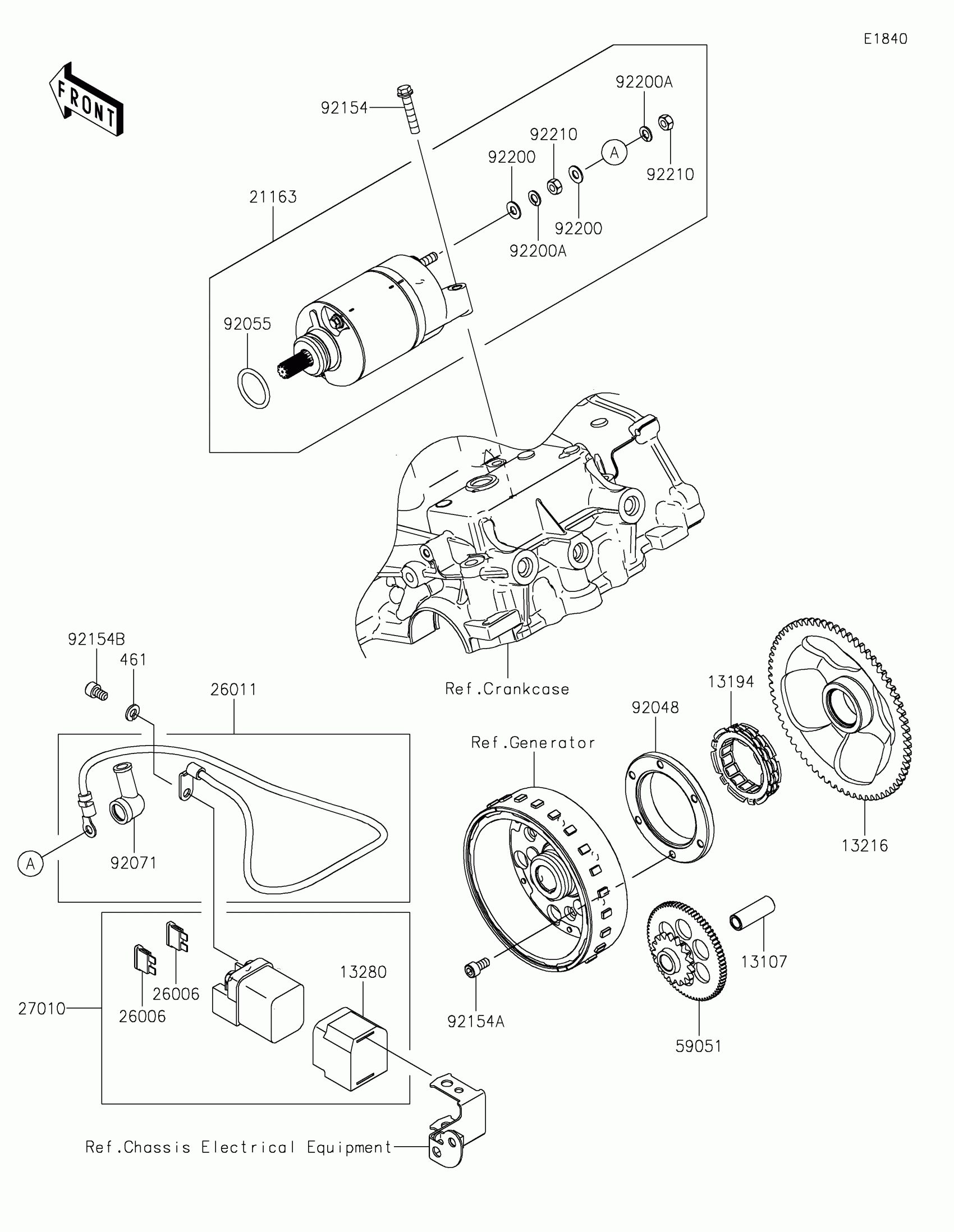

Kawasaki Ninja 500 Starter Motor Diagram

Description

Price

13107

SHAFT,IDLER

13107-0861

$12.32

13194

CLUTCH-ONEWAY

13194-1096

$106.12

13216

GEAR-COMP,ONEWAY CLUTCH,67T

13216-0895

$206.77

13280

HOLDER

13280-0301

$14.08

21163

STARTER-ELECTRIC

21163-0794

$328.84

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD,STARTER

26011-1867

$71.76

27010

SWITCH,MAGNETIC

27010-0099

$135.59

59051

GEAR-SPUR,IDLER

59051-0799

$153.76

92048

RACE

92048-0024

$56.18

92055

RING-O

92055-0822

$12.35

92071

GROMMET

92071-0787

$6.89

92154

BOLT,FLANGED,6X30

92154-1773

$1.19

92154A

BOLT,SOCKET,6X12

92154-1889

$2.12

92154B

BOLT,SOCKET,6X10

92154-4401

$0.63

92200

WASHER

92200-1678

$3.56

92200A

WASHER

92200-1679

$1.48

92210

NUT

92210-1664

$3.94

461

WASHER-SPRING,6MM

461DA0600

$0.71
