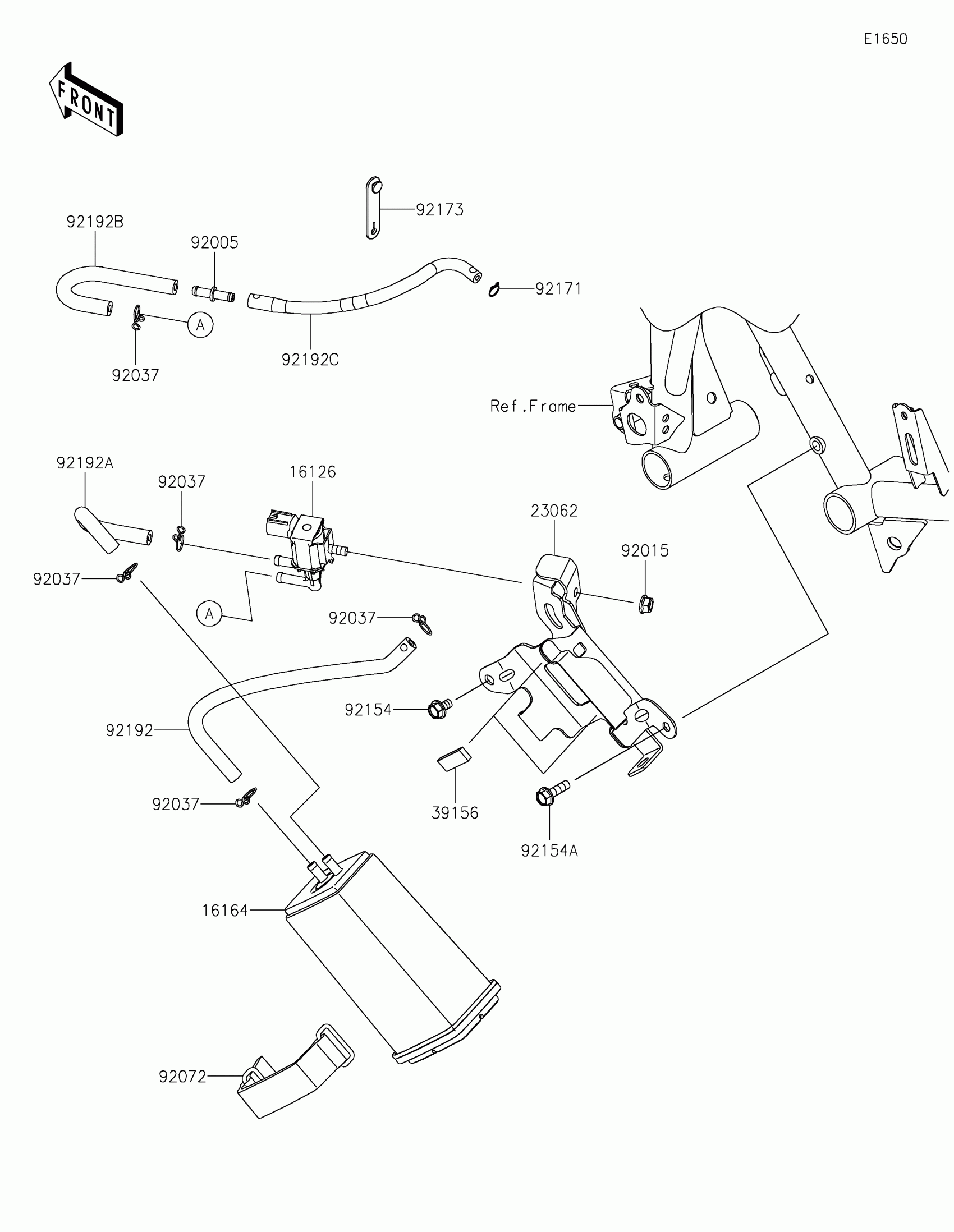

Kawasaki Ninja 500 SE Fuel Evaporative System(CA) Diagram

Description

Price

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

23062

BRACKET-COMP,CANISTER

23062-0949

$26.66

39156

PAD,10X30X4

39156-0927

$0.84

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92072

BAND,CANISTER

92072-0815

$10.76

92154

BOLT,FLANGED,6X10

92154-2939

$0.90

92154A

BOLT-FLANGED,6X20

92154-3812

$1.42

92171

CLAMP

92171-0573

$1.34

92173

CLAMP

92173-2198

$1.48

92192

TUBE,FUEL TANK-CANISTER

92192-1806

$30.45

92192A

TUBE,CANISTER-VALVE SOLENOID

92192-1807

$25.37

92192B

TUBE,SOLENOID VALVE-FITTING

92192-1808

$26.91

92192C

TUBE,FITTING-THROTTLE BODY

92192-1920

$45.89
