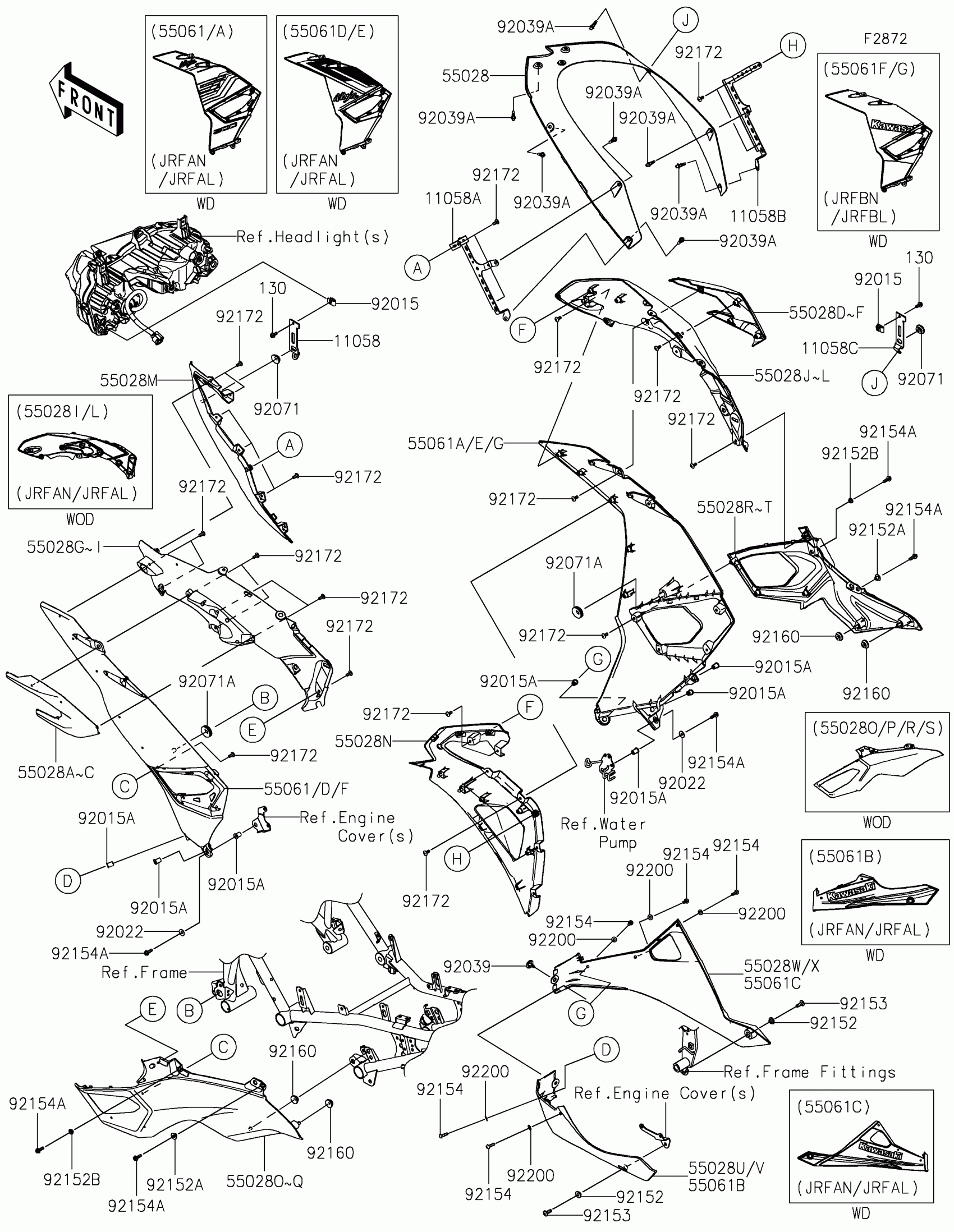

Kawasaki Ninja 500 SE Cowling Lowers(JRFAN-JRFBL) Diagram

#

Description
Price

11058

BRACKET,HEAD LAMP,LH

11058-1180

$5.64

11058A

BRACKET,FR COWLING,LH

11058-1182

$19.54

11058B

BRACKET,FR COWLING,RH

11058-1183

$16.85

11058C

BRACKET,HEAD LAMP,RH

11058-2403

$5.64

55028

COWLING,FR

55028-0877

$68.96

55028A

COWLING,FIN,LH,M.F.S.BLACK

55028-0878-739

$51.89

55028B

COWLING,FIN,LH,M.P.SILVER

55028-0878-GU

$43.78

55028C

COWLING,FIN,LH,EBONY

55028-0878-H8

$51.89

55028D

COWLING,FIN,RH,M.F.S.BLACK

55028-0879-739

$51.89

55028E

COWLING,FIN,RH,M.P.SILVER

55028-0879-GU

$50.44

55028F

COWLING,FIN,RH,EBONY

55028-0879-H8

$51.89

55028G

COWLING,SIDE,UPP,LH,P.RED

55028-0880-234

$204.87

55028H

COWLING,SIDE,UPP,LH,L.GREEN

55028-0880-777

$197.69

55028I

COWLING,SIDE,UPP,LH,EBONY

55028-0880-H8

$204.87

55028J

COWLING,SIDE,UPP,RH,P.RED

55028-0881-234

$197.53

55028K

COWLING,SIDE,UPP,RH,L.GREEN

55028-0881-777

$191.97

55028L

COWLING,SIDE,UPP,RH,EBONY

55028-0881-H8

$197.53

55028M

COWLING,SIDE,FR,LH

55028-0882

$56.47

55028N

COWLING,SIDE,FR,RH

55028-0883

$56.47

55028O

COWLING,SIDE,RR,LH,P.C.WHT+GRN

55028-0884-11C

$264.81

55028P

COWLING,SIDE,RR,LH,P.RED

55028-0884-234

$182.16

55028Q

COWLING,SIDE,RR,LH,L.GREEN

55028-0884-777

$182.16

55028R

COWLING,SIDE,RR,RH,P.C.WHT+GRN

55028-0885-11C

$271.30

55028S

COWLING,SIDE,RR,RH,P.RED

55028-0885-234

$186.61

55028T

COWLING,SIDE,RR,RH,L.GREEN

55028-0885-777

$186.61

55028U

COWLING,LWR,LH,M.F.S.BLACK

55028-0888-739

$159.99

55028V

COWLING,LWR,LH,BLUE

55028-0888-DB

$155.50

55028W

COWLING,LWR,RH,M.F.S.BLACK

55028-0889-739

$165.02

55028X

COWLING,LWR,RH,BLUE

55028-0889-DB

$160.38

55061

COWLING,SIDE,LH,EBONY

55061-5185-H8

$485.51

55061A

COWLING,SIDE,RH,EBONY

55061-5186-H8

$441.74

55061B

COWLING,LWR,LH,L.GREEN

55061-5187-777

$233.31

55061C

COWLING,LWR,RH,L.GREEN

55061-5188-777

$265.06

55061D

COWLING,SIDE,LH,M.M.D.GRAY

55061-5195-69P

$387.99

55061E

COWLING,SIDE,RH,M.M.D.GRAY

55061-5196-69P

$391.92

55061F

COWLING,SIDE,LH,P.C.WHITE+GRN

55061-5200-11C

$493.16

55061G

COWLING,SIDE,RH,P.C.WHITE+GRN

55061-5201-11C

$501.49

92015

NUT,5MM

92015-1710

$4.67

92015A

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0709

$1.89

92071

GROMMET,20X24X7.5

92071-0766

$1.09

92071A

GROMMET

92071-1043

$3.91

92152

COLLAR,6.5X16X5.6

92152-1838

$3.21

92152A

COLLAR,5.2X7.8X7.2

92152-2371

$2.84

92152B

COLLAR,6X8X4.5

92152-2395

$0.95

92153

BOLT,6X18

92153-0478

$1.81

92154

BOLT,SOCKET,5X16

92154-4294

$1.95

92154A

BOLT,FLANGED,5X16

92154-7034

$0.73

92160

DAMPER

92160-1613

$2.84

92172

SCREW,5X12

92172-0821

$0.73

92200

WASHER,5.2X12X1.0

92200-0784

$0.73

130

BOLT-FLANGED,5X12

130BA0512

$1.55
