2026 Kawasaki Ninja 500 Se ABS Water Pipe Diagram

← All diagrams

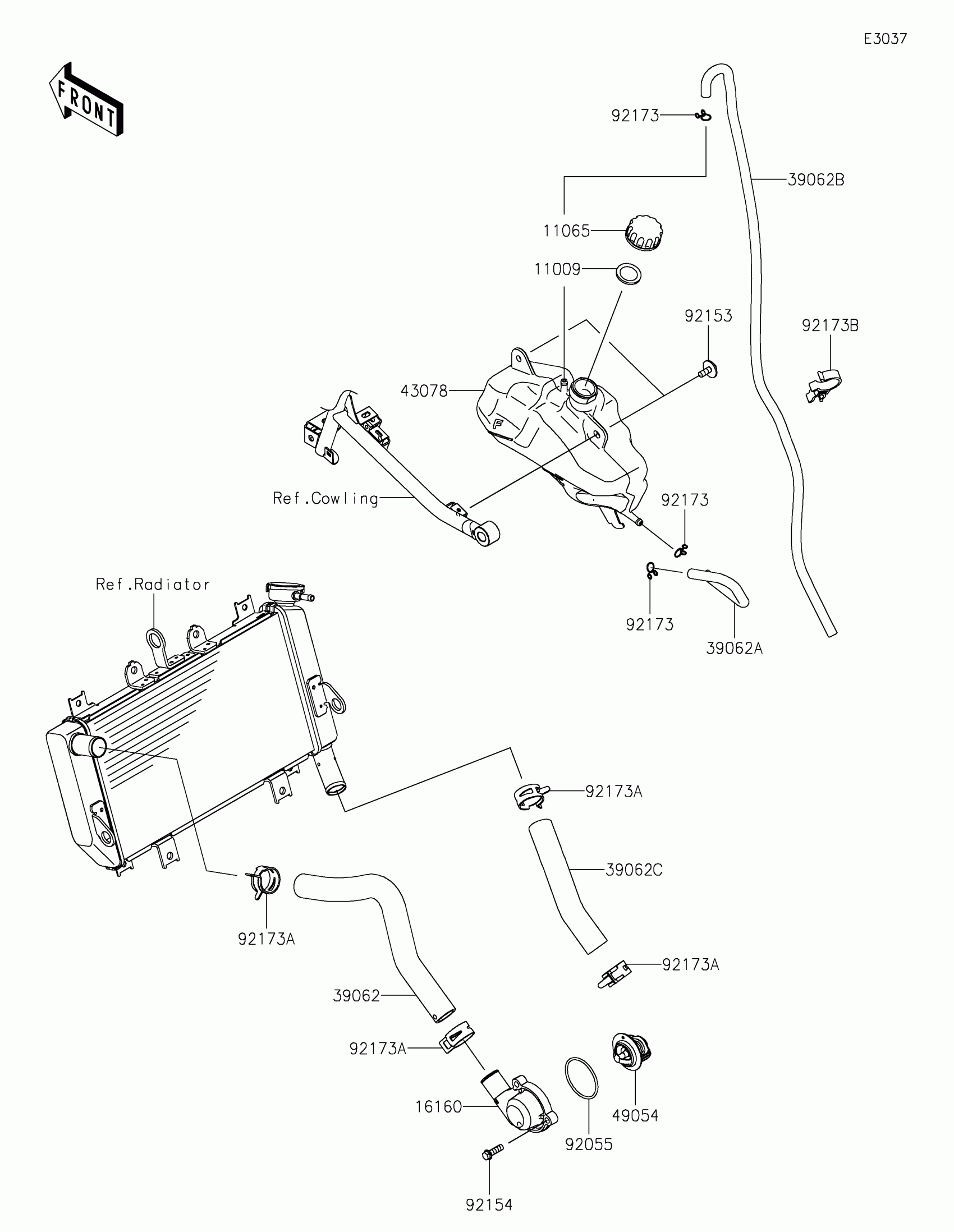

Find the part on the Water Pipe diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Ninja 500 Se ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

16160

BODY,THERMOSTAT

16160-0830

1
Out of stock

39062

HOSE-COOLING,THERMO.-RADIATOR

39062-0781

1
Out of stock

39062A

HOSE-COOLING,RAD.-RESERVOIR

39062-0784

1
Out of stock

39062B

HOSE-COOLING,OVER FLOW

39062-0823

1
Out of stock

39062C

HOSE-COOLING,RADIATOR-W/PUMP

39062-0861

1
Out of stock

43078

RESERVOIR

43078-0600

1
Out of stock

49054

THERMOSTAT

49054-0001

1
Out of stock

92055

RING-O,46.7X2.4

92055-1811

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X16

92153-1798

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-1778

1
Out of stock

92173

CLAMP

92173-0050

1
Out of stock

92173A

CLAMP

92173-1688

1
Out of stock

92173B

CLAMP

92173-1691

1
Out of stock
