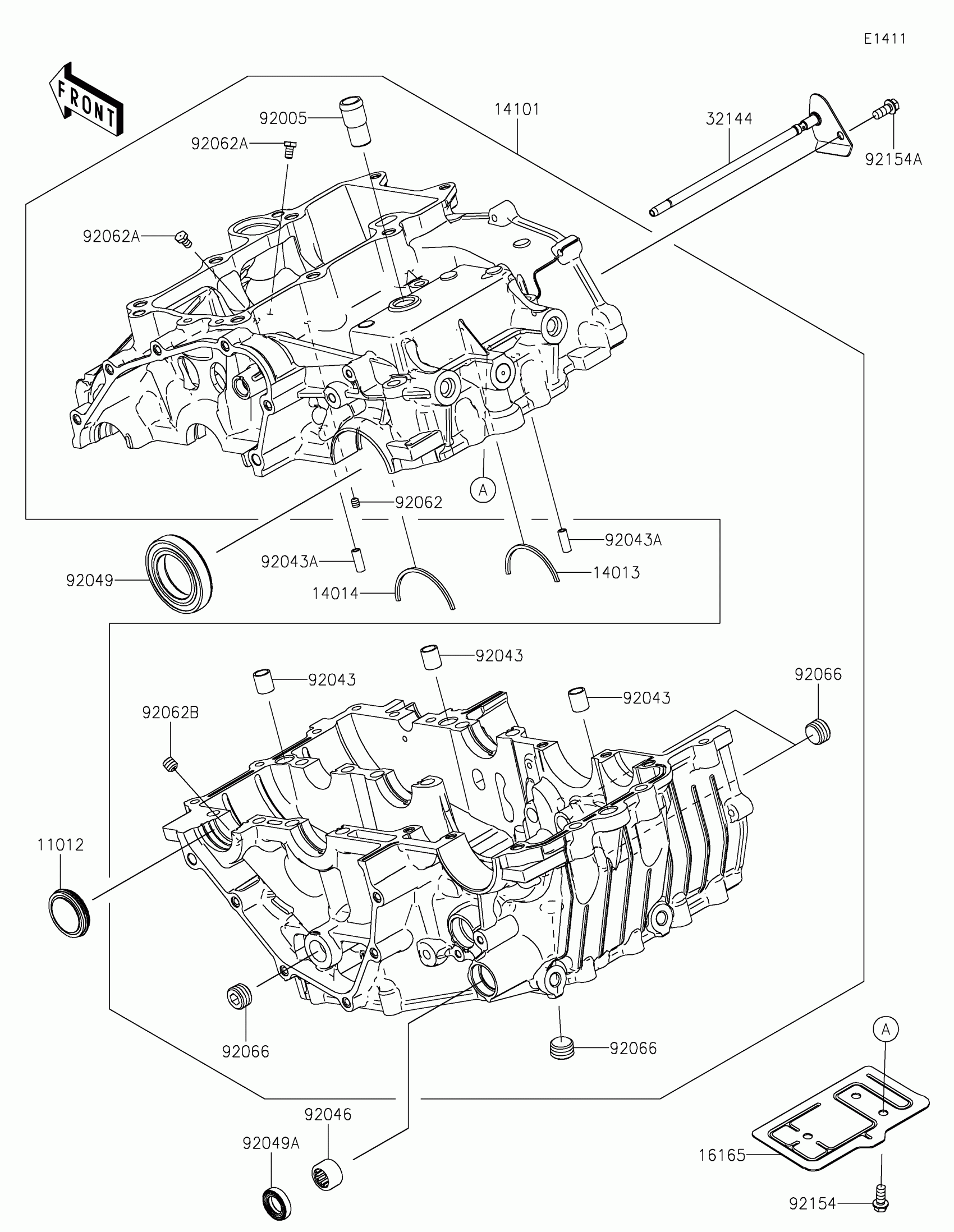

Find the part on the Crankcase diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Ninja 500 Se ABS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,LH

11012-1770

1

$12.49

In stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-0576

1

$1.27

In stock

14101

SET-CRANKCASE

14101-0023

1

$1,024.21

In stock

16165

SEPARATOR

16165-0016

1

$4.68

In stock

32144

PIPE-ASSY

32144-0008

1

$45.75

In stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92043

PIN,12X14

92043-0963

1

$5.21

In stock

92043A

PIN,3.5X6X16

92043-1309

1

$4.37

In stock

92046

1

$13.53

In stock

92049

SEAL-OIL

92049-0799

1

$12.02

In stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92062

NOZZLE

92062-0004

1

$4.00

In stock

92062A

NOZZLE

92062-0047

1

$14.34

In stock

92062B

NOZZLE

92062-0048

1

$4.93

In stock

92066

PLUG

92066-0831

1

$4.46

In stock

92154

BOLT,FLANGED,6X14

92154-1426

1

$1.69

In stock

92154A

BOLT,FLANGED,6X14

92154-2907

1

$0.69

In stock
