2026 Kawasaki Ninja 500 Se ABS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

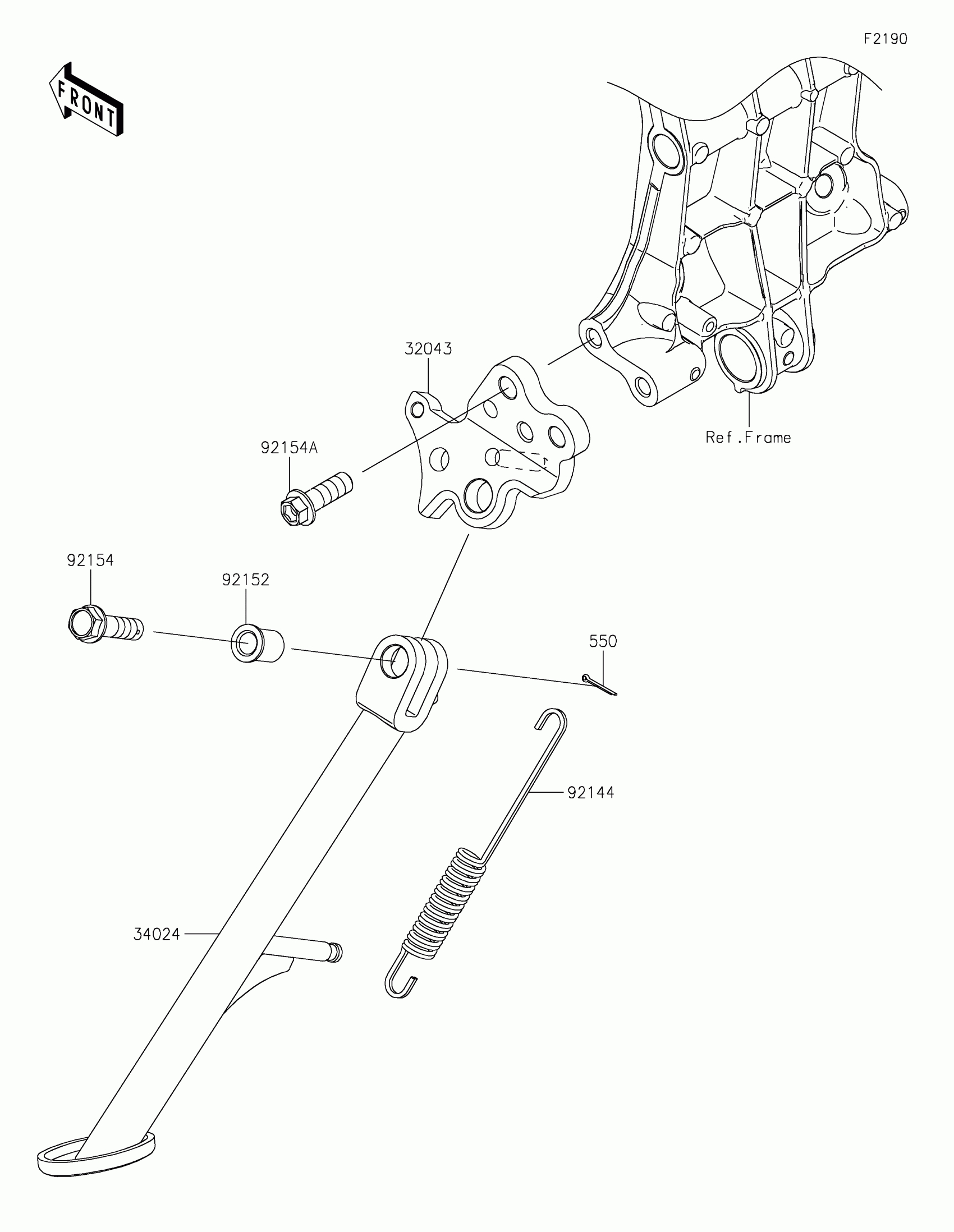

2026 Kawasaki Ninja 500 Se ABS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0672

1

$77.93

In stock

34024

STAND-SIDE

34024-0149

1

$95.34

In stock

92144

SPRING,SIDE STAND

92144-1818

1

$13.70

In stock

92152

COLLAR,10.2X15X20.1

92152-1914

1
Out of stock

92154

BOLT,FLANGED,10X37

92154-1539

1

$6.43

In stock

92154A

BOLT,10X30,TB2468

92154-2814

1

$5.34

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
