2026 Kawasaki Ninja 500 Se ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

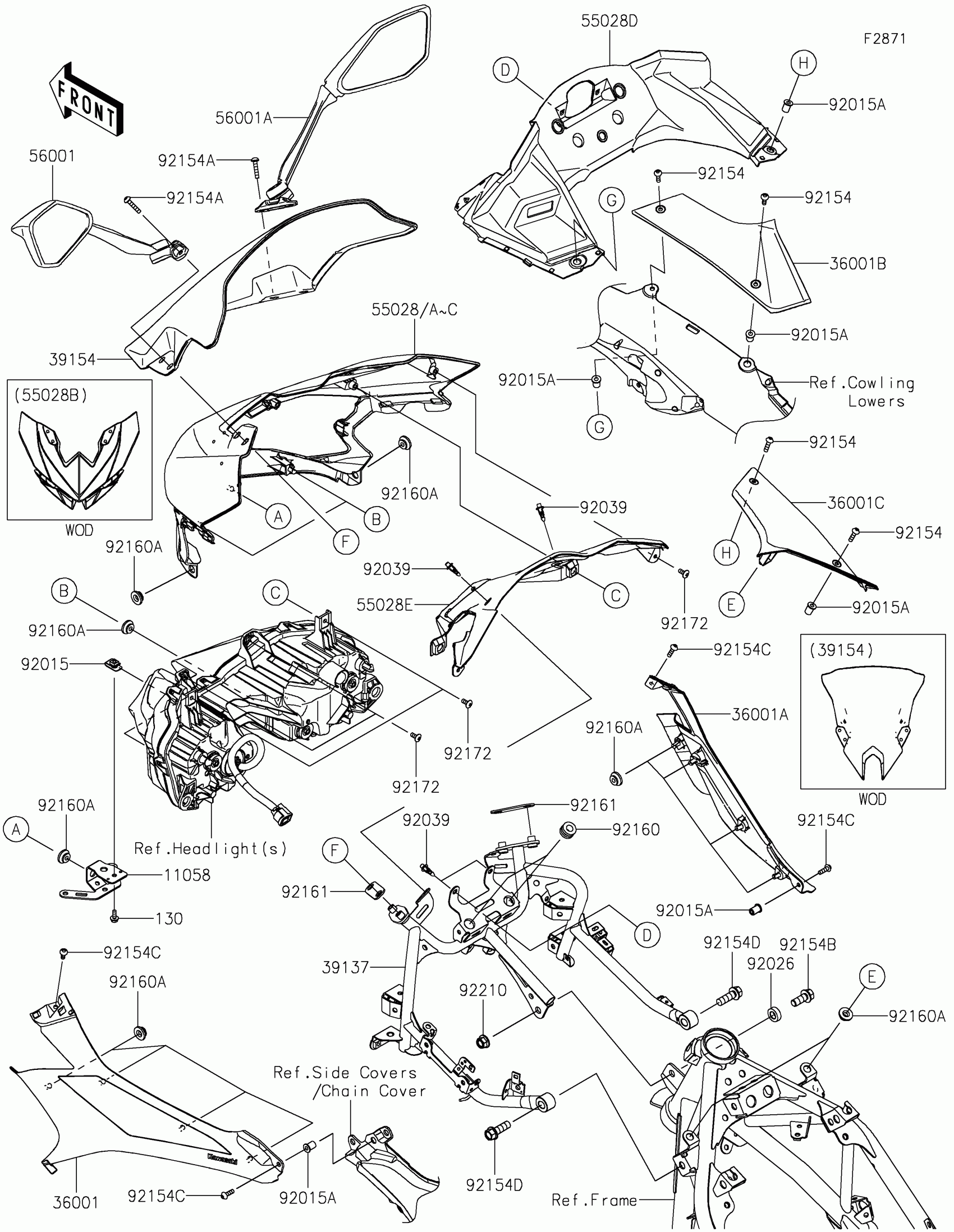

2026 Kawasaki Ninja 500 Se ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,UPP COWLING

11058-1184

1
Out of stock

36001

COVER-SIDE,KNEE GRIP,LH

36001-0751

1
Out of stock

36001A

COVER-SIDE,KNEE GRIP,RH

36001-0752

1
Out of stock

36001B

COVER-SIDE,INNER,LH

36001-0753

1
Out of stock

36001C

COVER-SIDE,INNER,RH

36001-0754

1
Out of stock

39137

STAY-COMP,UPP COWLING

39137-0744

1
Out of stock

39154

WINDSHIELD,LARGE

39154-0433

1
Out of stock

55028

COWLING,UPP,M.M.T.BLUE

55028-0874-68M

1
Out of stock

55028A

COWLING,UPP,M.F.S.BLACK

55028-0874-739

1
Out of stock

55028B

COWLING,UPP,L.GREEN

55028-0874-777

1
Out of stock

55028C

COWLING,UPP,M.Y.GREEN

55028-0874-79K

1
Out of stock

55028D

COWLING,INNER

55028-0875

1
Out of stock

55028E

COWLING,UPP,INNER

55028-0876

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0378

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0379

1
Out of stock

92015

NUT,5MM

92015-1710

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92026

SPACER,10.5X20X6.5

92026-0835

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92154

BOLT,SOCKET,5X18

92154-2107

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-2806

1
Out of stock

92154B

BOLT-FLANGED,10X25

92154-4058

1
Out of stock

92154C

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92154D

BOLT,FLANGED,10X30

92154-4393

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-1467

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1
Out of stock
