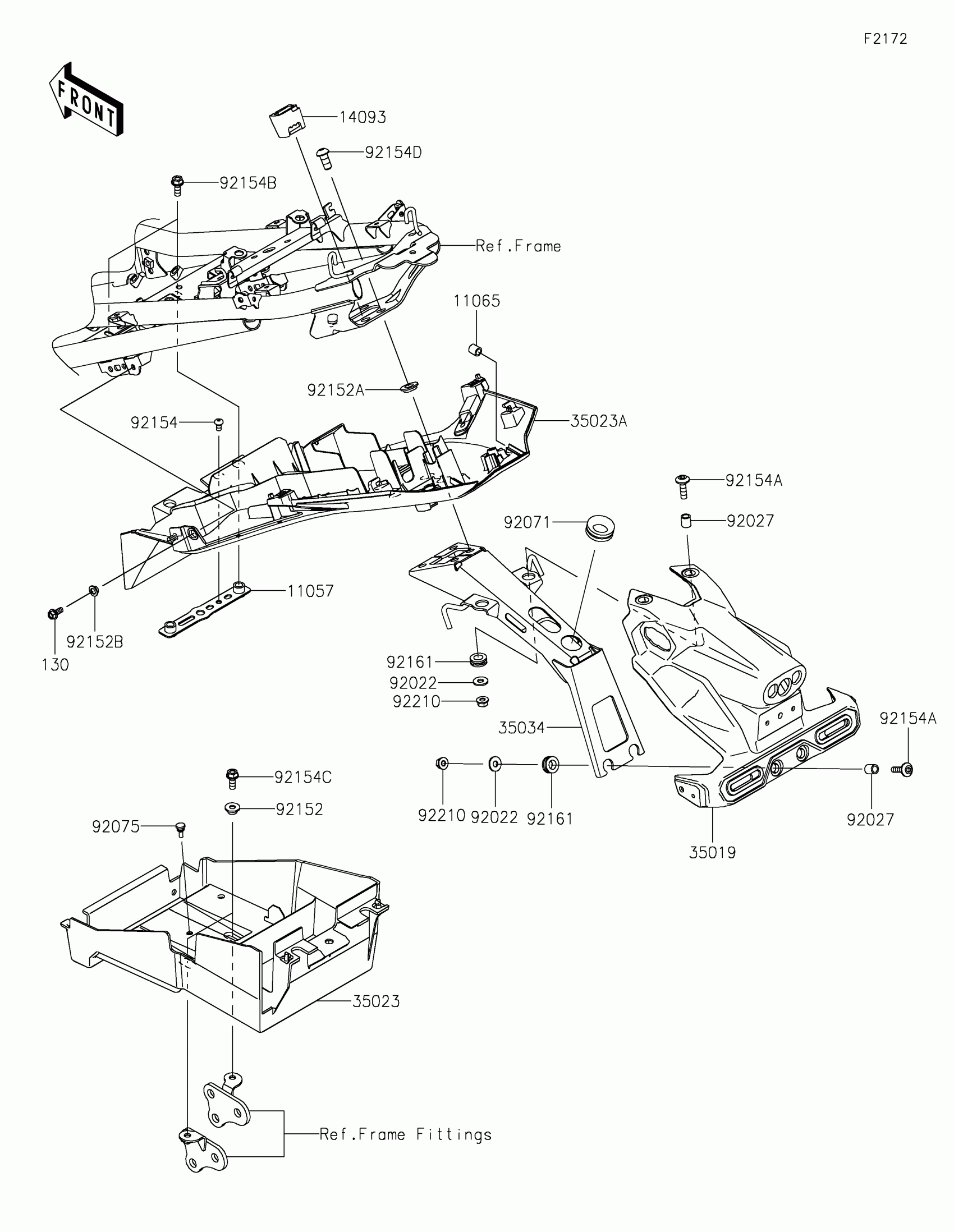

Kawasaki Ninja 500 SE ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-1191

$17.30

11065

CAP

11065-0156

$2.13

14093

COVER,RR FENDER

14093-1533

$1.81

35019

FLAP

35019-0639

$53.79

35023

FENDER-REAR

35023-0438

$29.45

35023A

FENDER-REAR

35023-0500

$53.91

35034

REINFORCE

35034-0616

$73.13

92022

WASHER

92022-2247

$0.62

92027

COLLAR,6.8X10X11.5

92027-1210

$10.28

92071

GROMMET

92071-0709

$1.18

92075

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,6.5X10X6.4

92152-2287

$2.70

92152A

COLLAR,10X20X4.5

92152-2392

$3.21

92152B

COLLAR,6X8X4.5

92152-2395

$1.17

92154

BOLT,SOCKET,5X10

92154-1547

$1.48

92154A

BOLT,SOCKET,6X22

92154-2234

$1.78

92154B

BOLT,FLANGED,6X16

92154-2895

$1.17

92154C

BOLT,FLANGED,6X16

92154-2900

$0.90

92154D

BOLT,SOCKET,8X18

92154-3739

$2.70

92161

DAMPER,10X18X6.5

92161-2091

$2.44

92210

NUT,FLANGED,6MM

92210-1514

$3.98

130

BOLT-FLANGED,5X12

130BA0512

$2.22
